Model：D640CCT1624
Dual Color Temperature LED Strip – 640 LEDs/m Tunable White Long-Run Illumination, 24V COB
|
Parameter |
Value |
|---|---|
|
LED Density |
640 LEDs/m |
|
Power |
16 W/m |
|
CRI (Ra) |
Ra 90 |
|
Voltage |
24V DC |
Basic Information

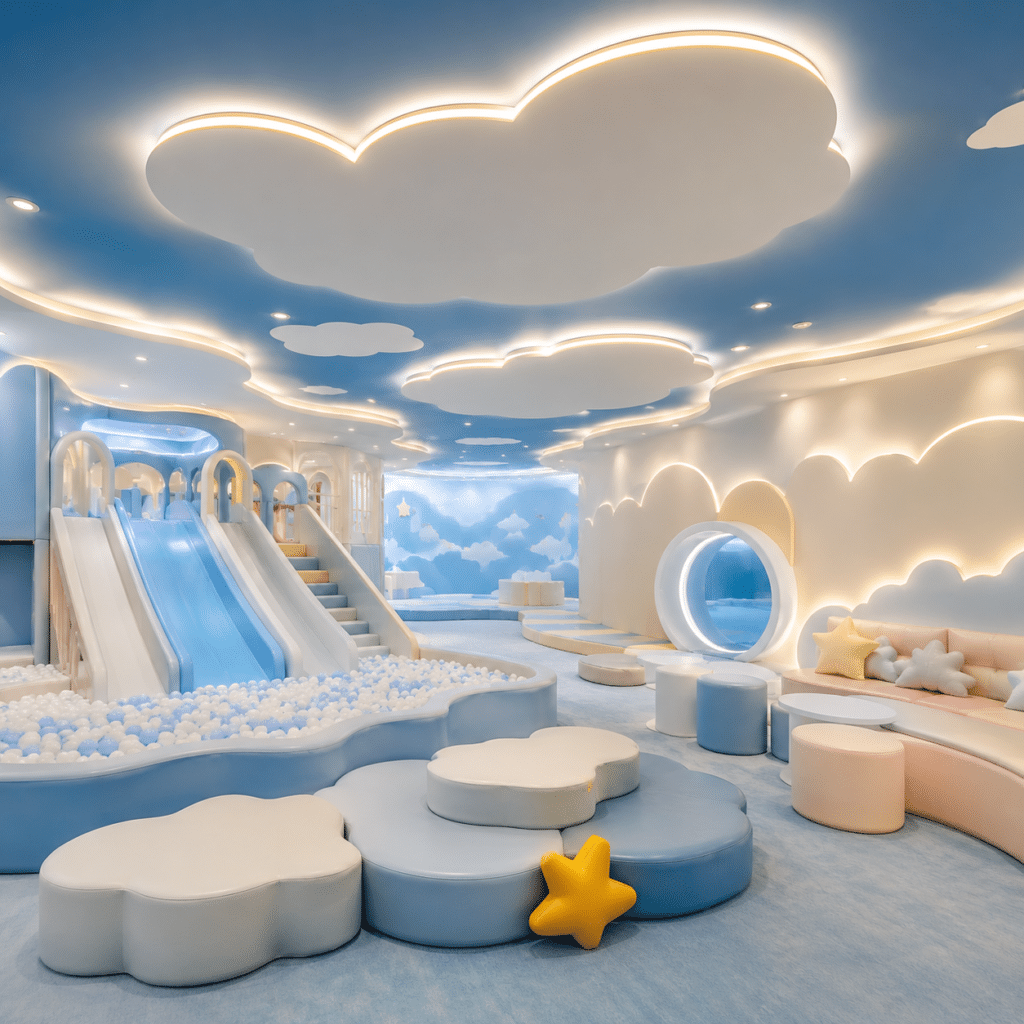

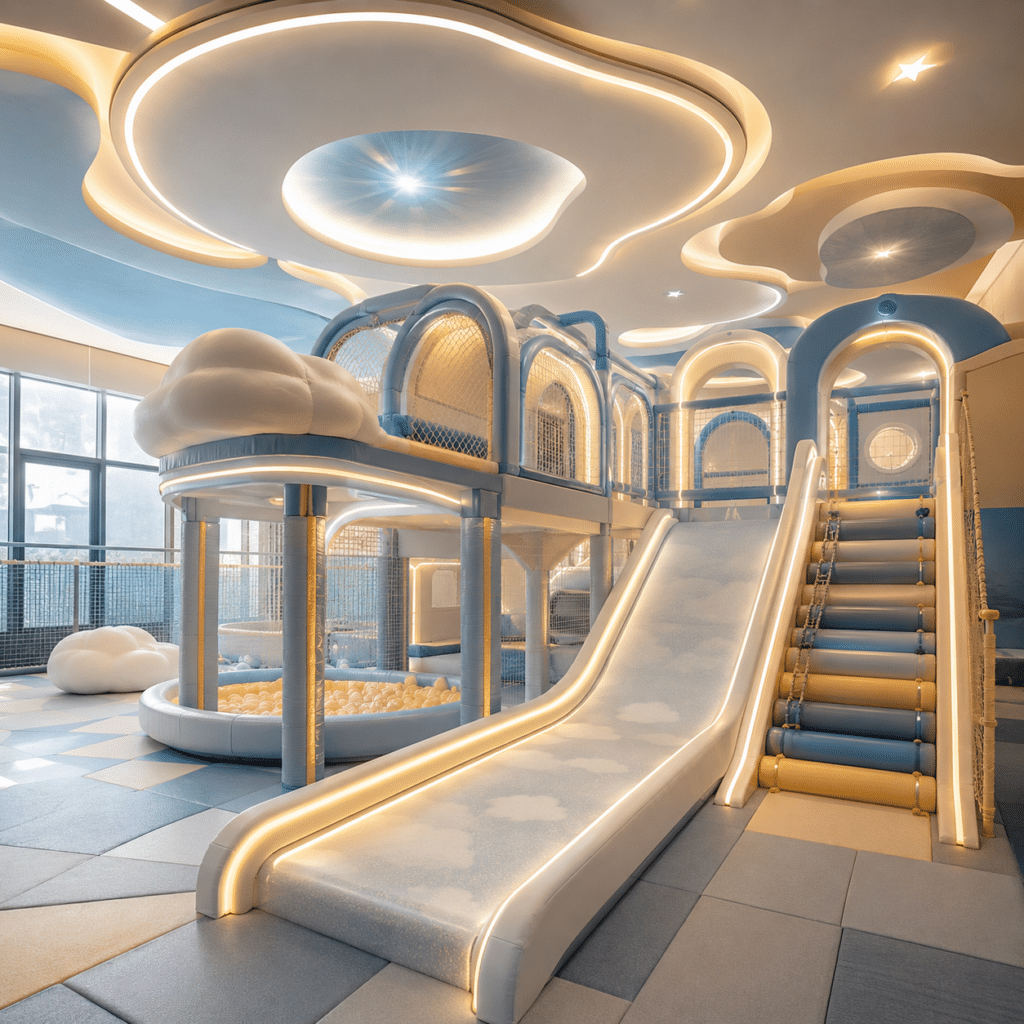

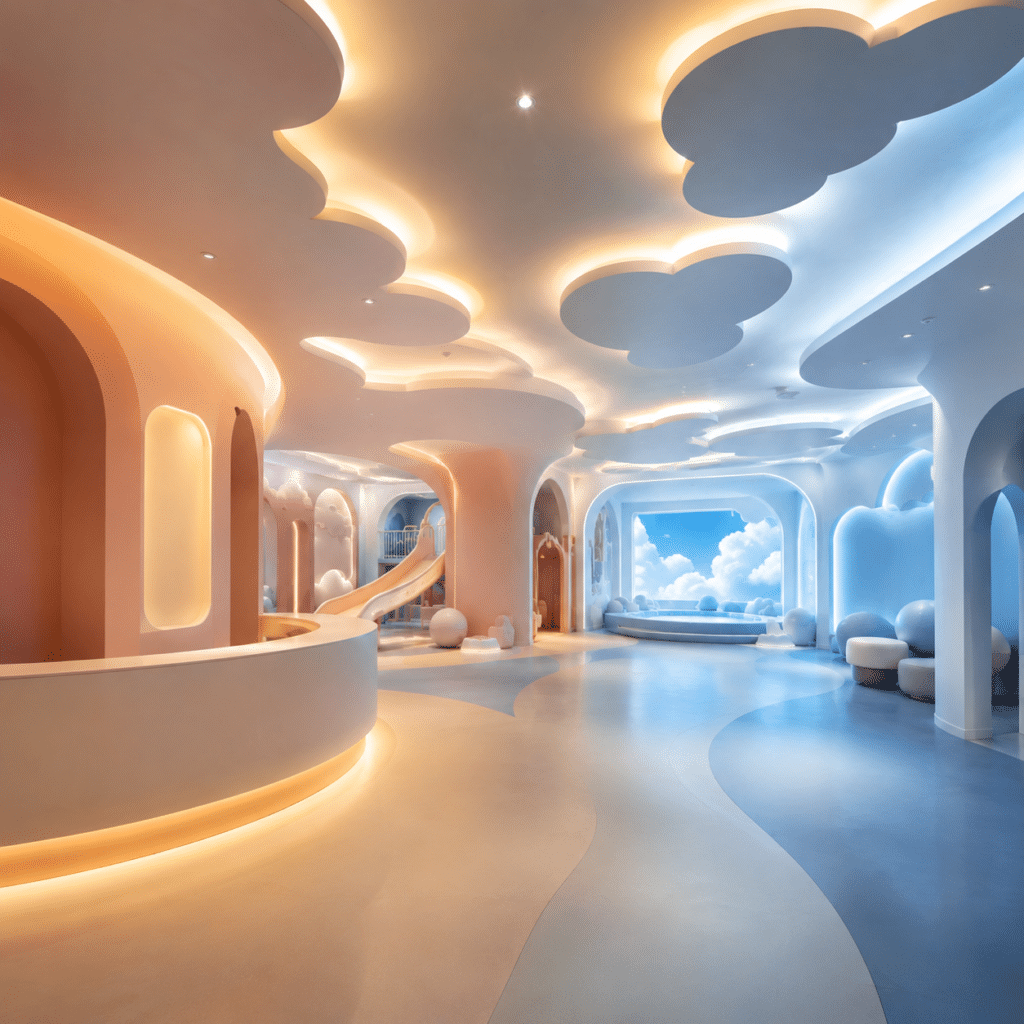

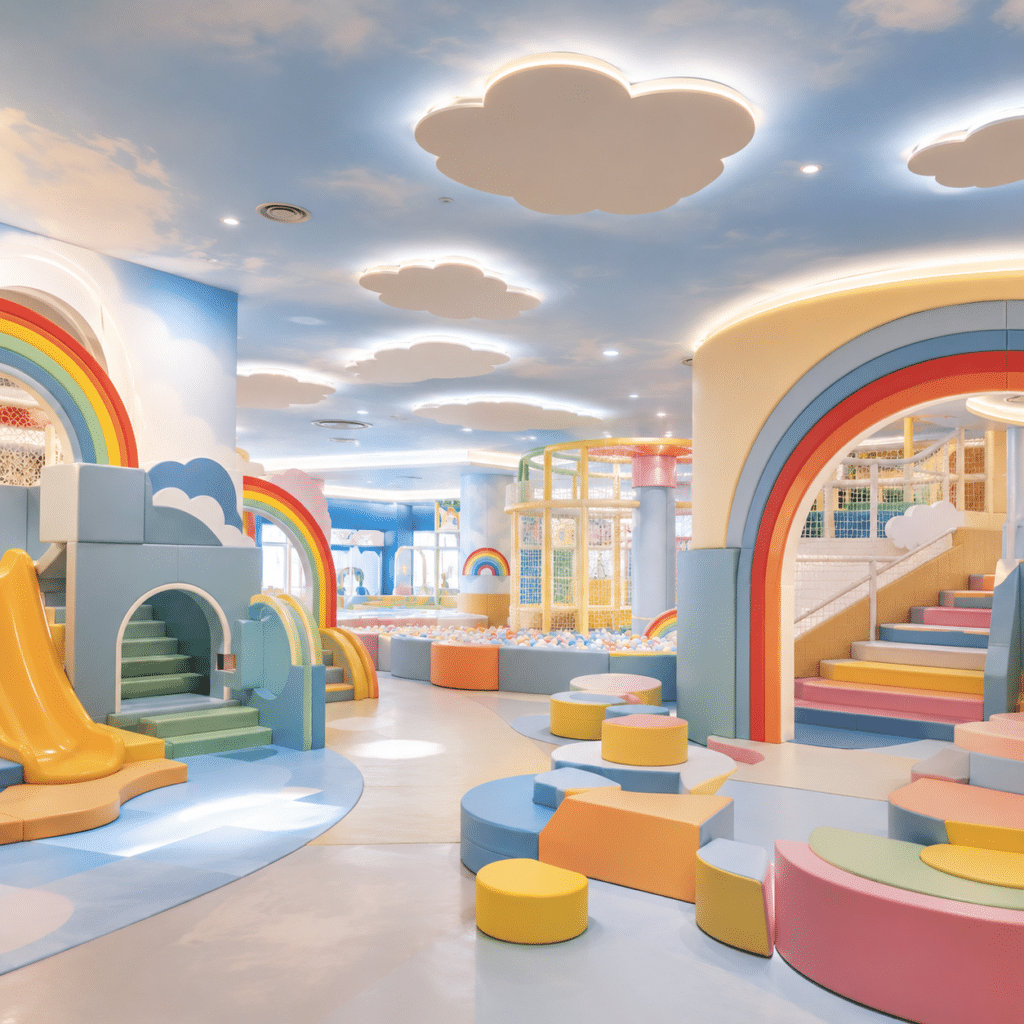

D640CCT1624 Tunable White Series with 640 LEDs per meter and precise 16W/m power delivery, enabling smooth 2700K–6500K color temperature adjustment and high CRI RA90 visual performance. Designed for dynamic lighting environments such as hospitality spaces, retail displays, and residential ambient scenes where flexible mood control and consistent linear illumination are required.

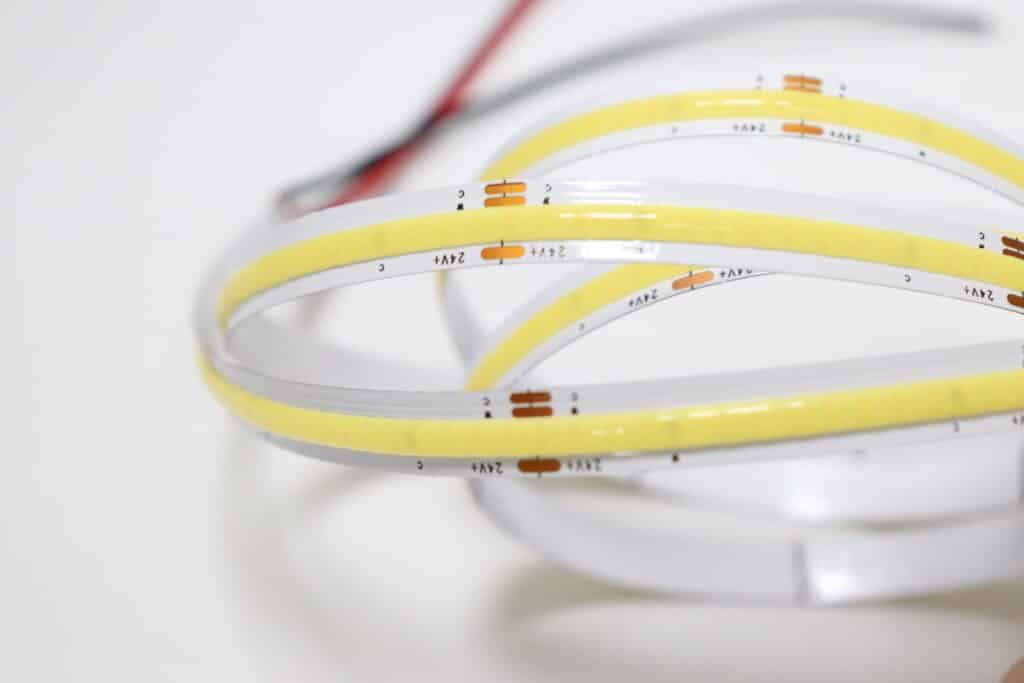

Physical Product Photos

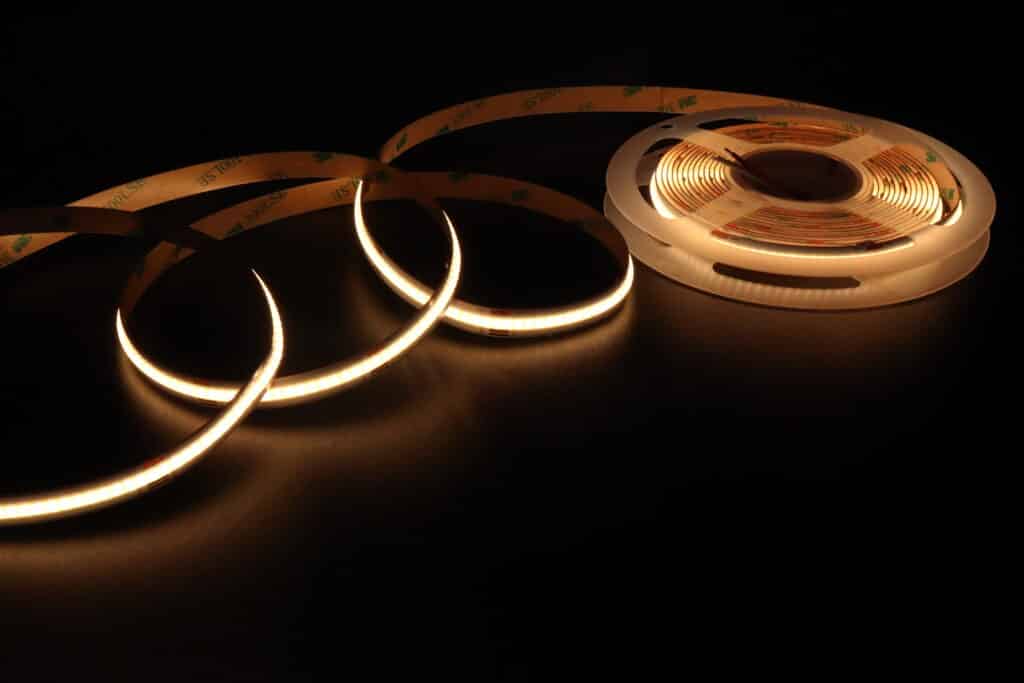

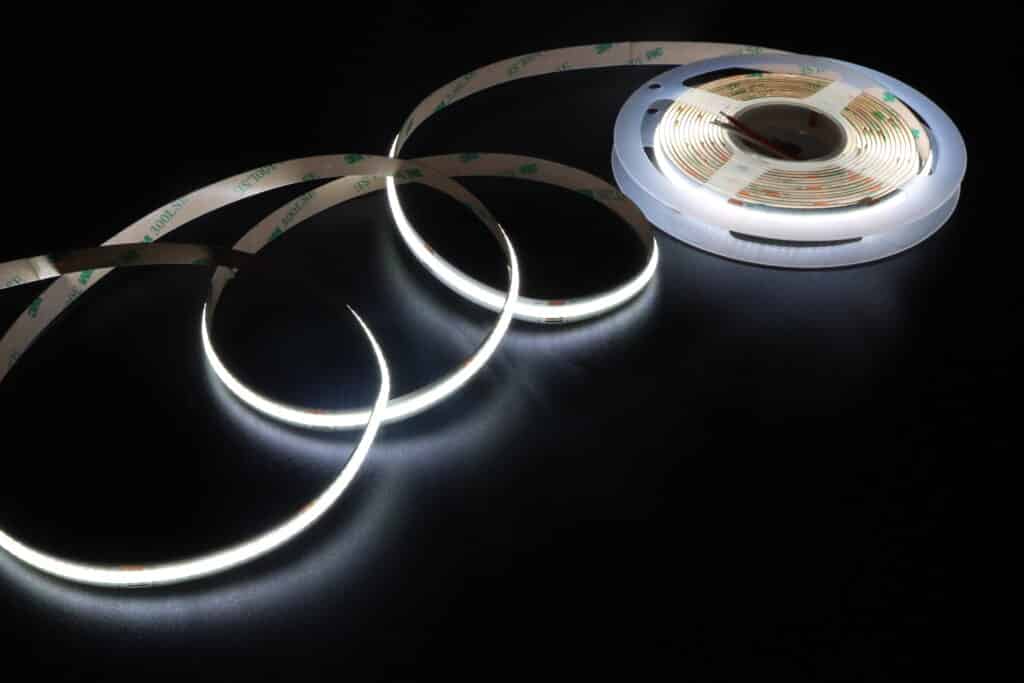

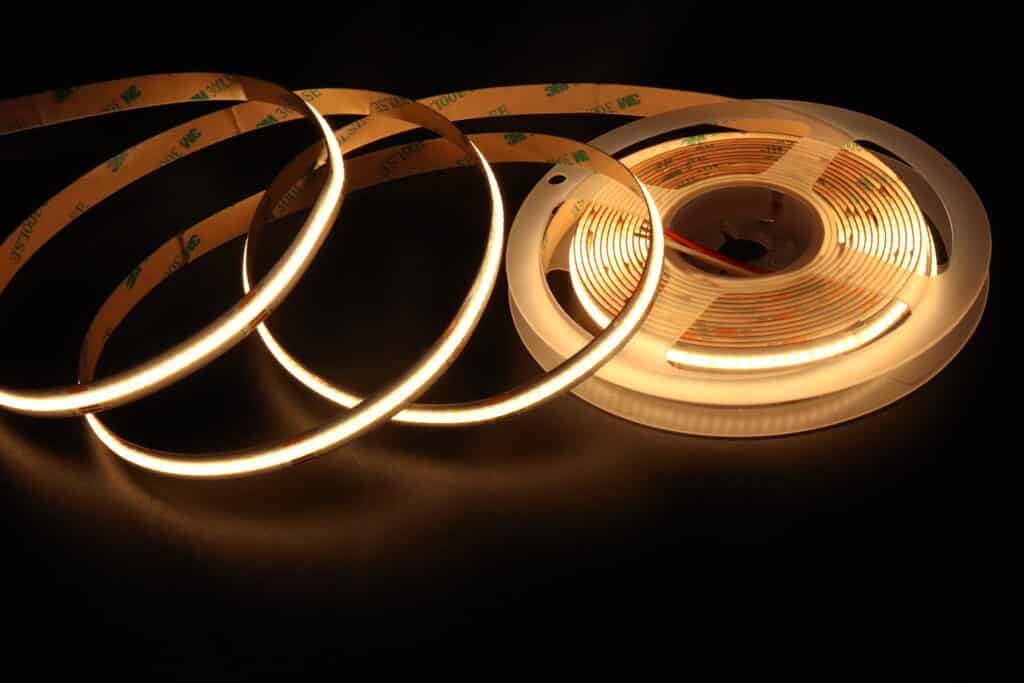

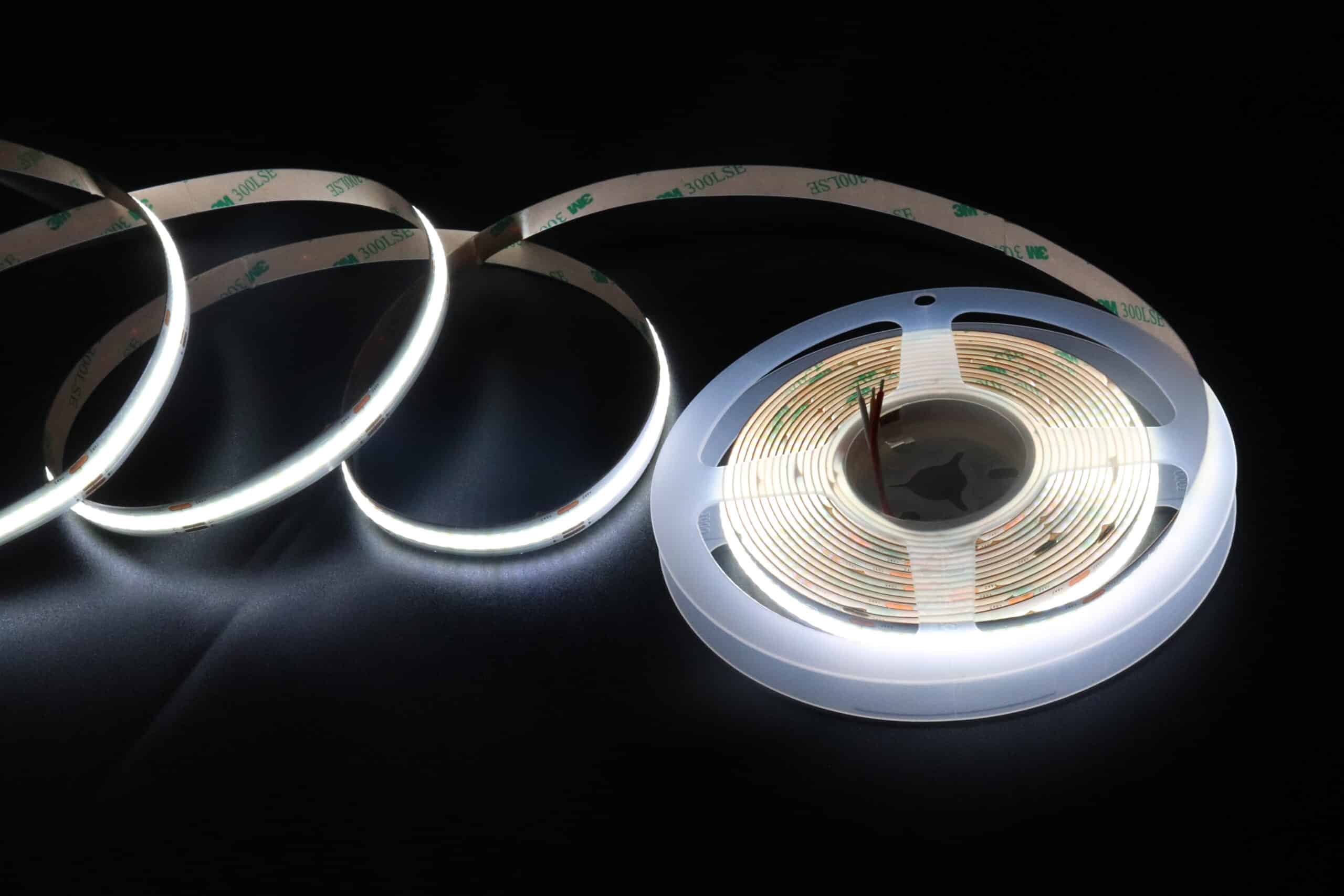

Illuminated & Glow Effect

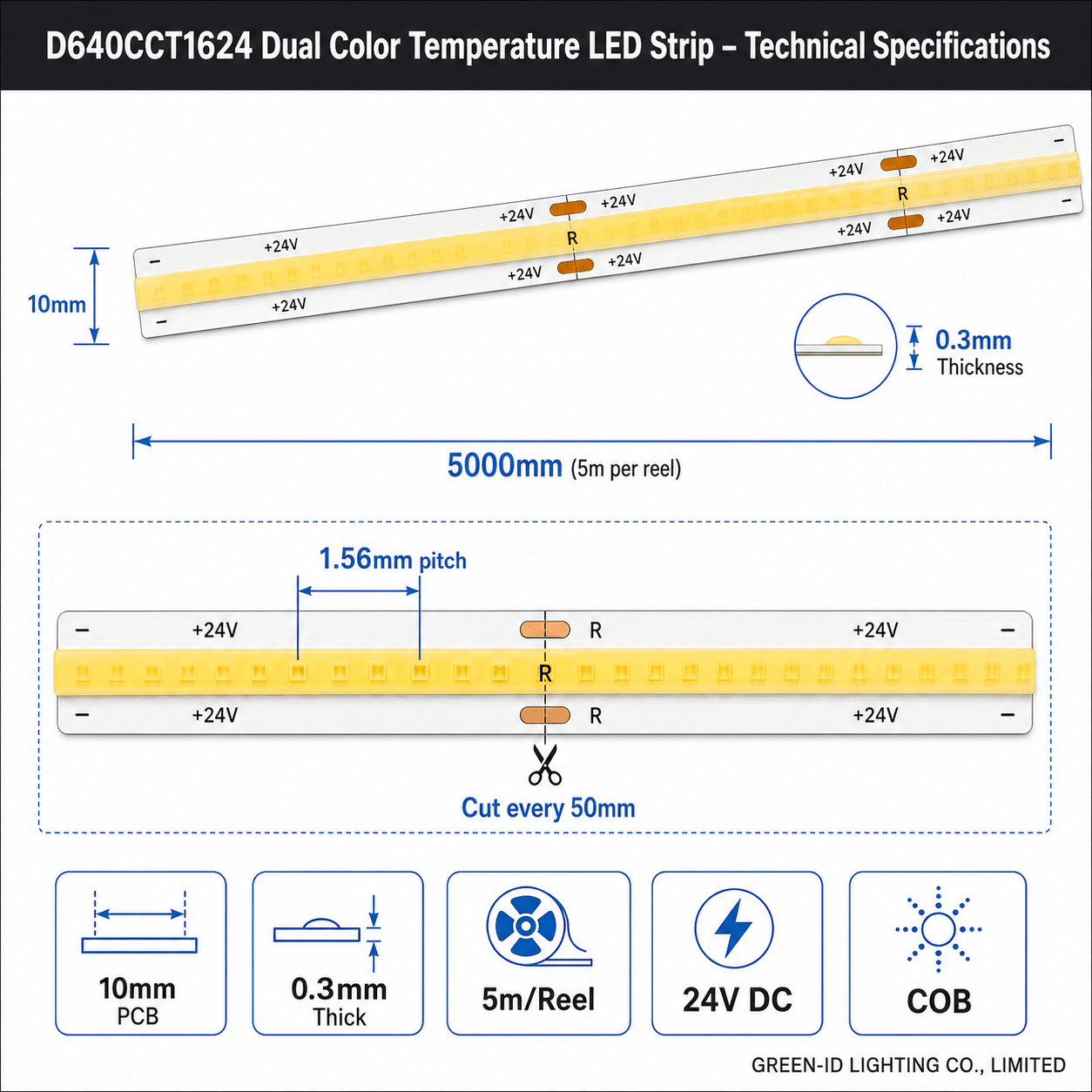

Specifications & Technical Drawing
Product Identification
|
Model |
D640CCT1624 |
|---|---|
|
LED Type |
COB |
|
LED Quantity |
640LEDs/m (3200 LEDs / 5m) |
|
Input Voltage |
DC 24V |
|
Current |
0.625 A |
|
Power |
16 W/m |
Optical Characteristics
|
Color Temperature |
2700K – 6500K |
|---|---|
|
CRI (Ra) |
Ra 90 |
|
Beam Angle |
180 ° |
|
Luminous Flux |
1350/M |
|
Efficacy (lm/W) |
90 |
Physical & Installation
|
PCB Width |
10 mm |
|---|---|
|
PCB Thickness |
0.3 mm |
|
Cutting Interval |
50 mm |
|
Standard Length |
5000mm (5m per reel) |
|
IP Rating |
IP20 (IP65/IP67 optional) |
|
Adhesive Backing |
3M 300LSE double-sided tape |
Compliance & Warranty
|
Certifications |
CE, RoHS, ERP |
|---|---|
|
Warranty |
3 Years Standard |
|
Working Temp. |
-20°C ~ +50°C |
