Model：M840RGBCW2924
RGB Colour Changing LED Strip – 840 LEDs/m Dynamic Color Linear Lighting, 24V COB
|
Parameter |
Value |
|---|---|
|
LED Density |
840 LEDs/m |
|
Power |
29 W/m |
|
CRI (Ra) |
Ra 90 |
|
Voltage |
24V DC |
Basic Information
M840RGBCW2924 RGB Series featuring high-output 29W/m performance with 840 LEDs/m for vibrant RGB+CCT illumination, suitable for dynamic architectural lighting and premium project applications.

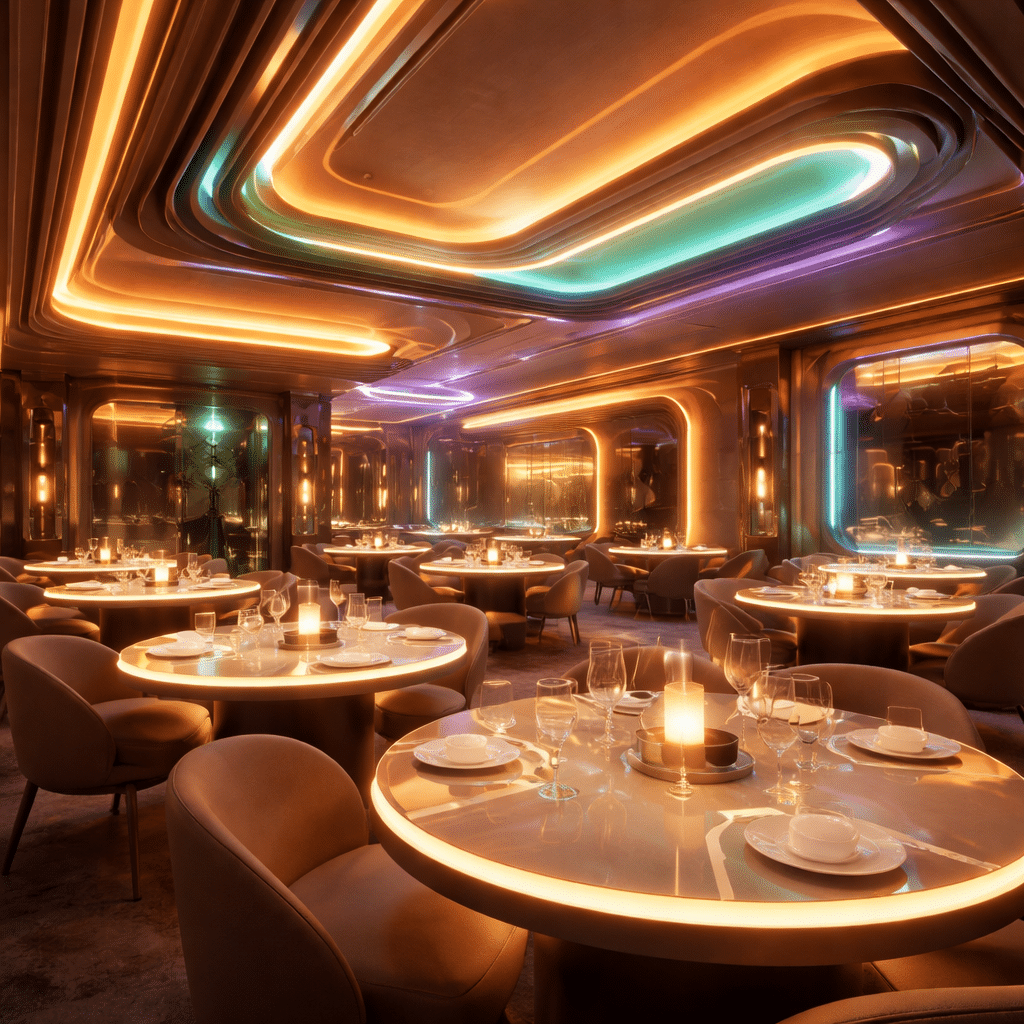

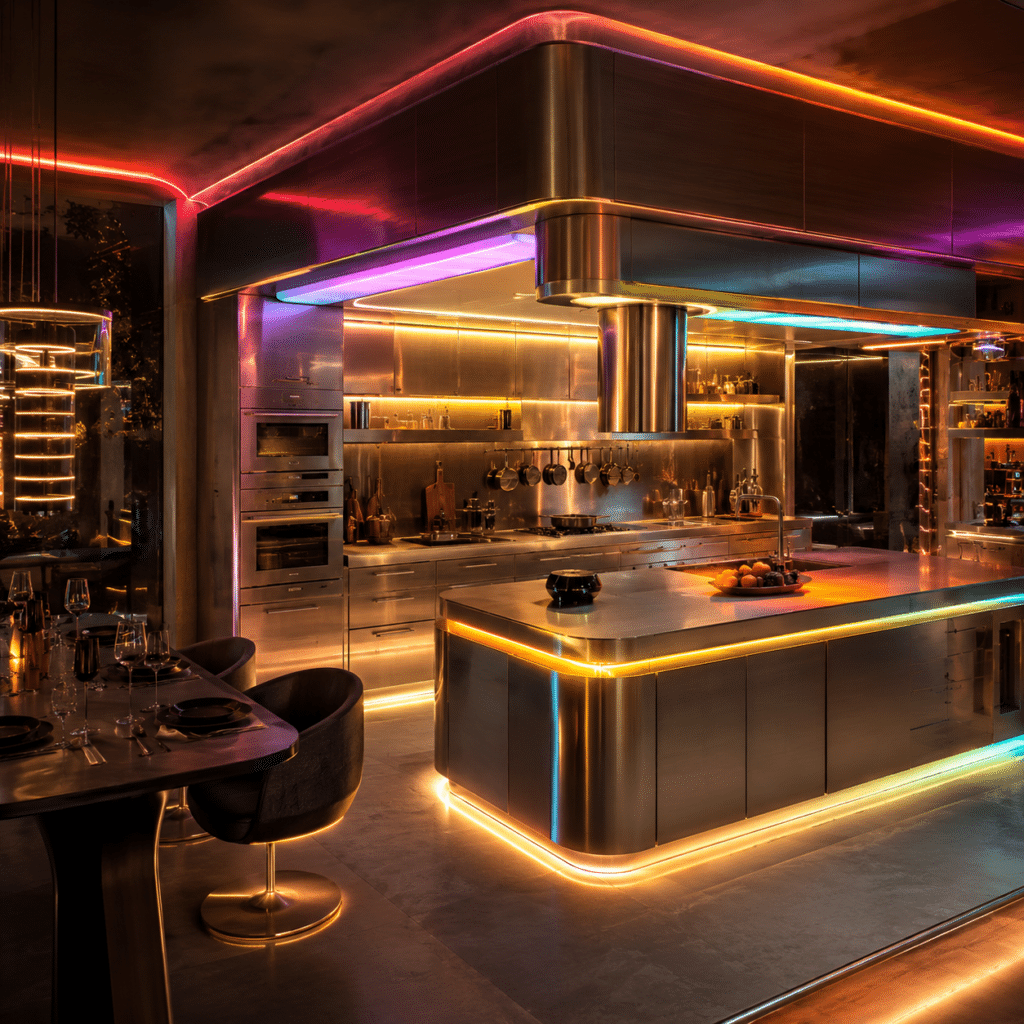

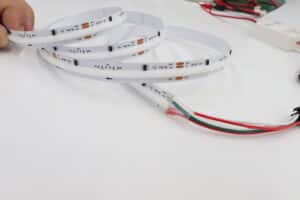

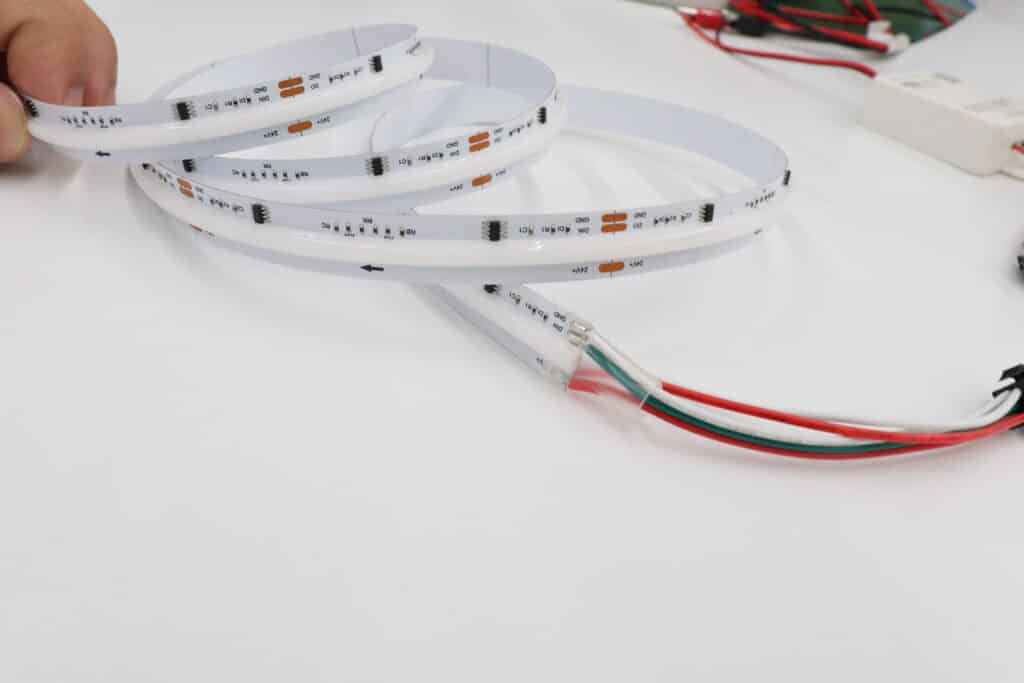

Physical Product Photos

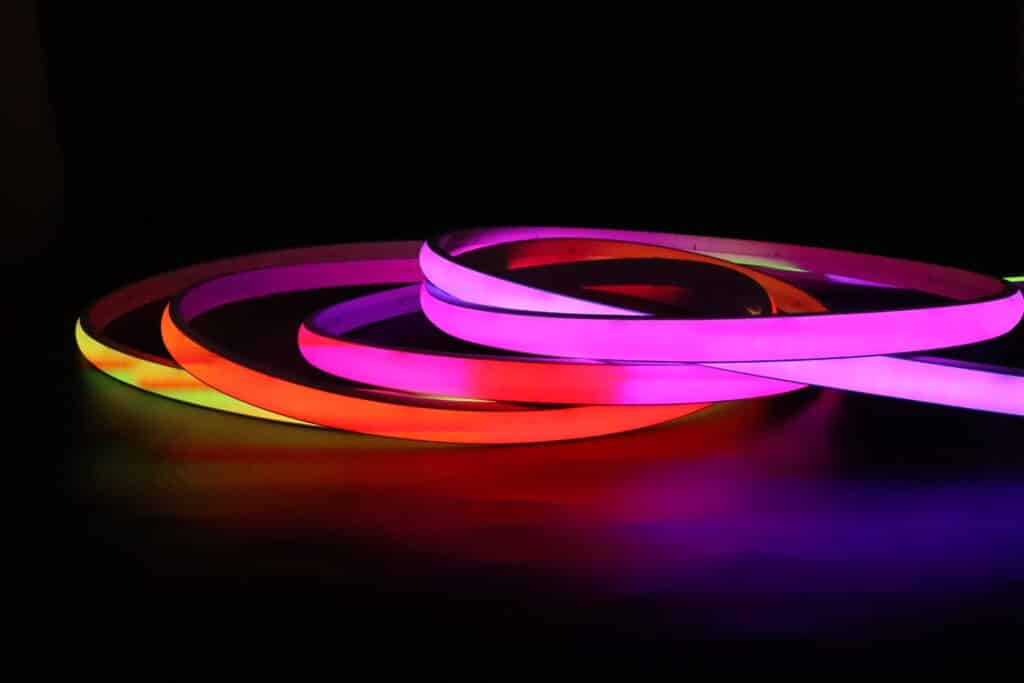

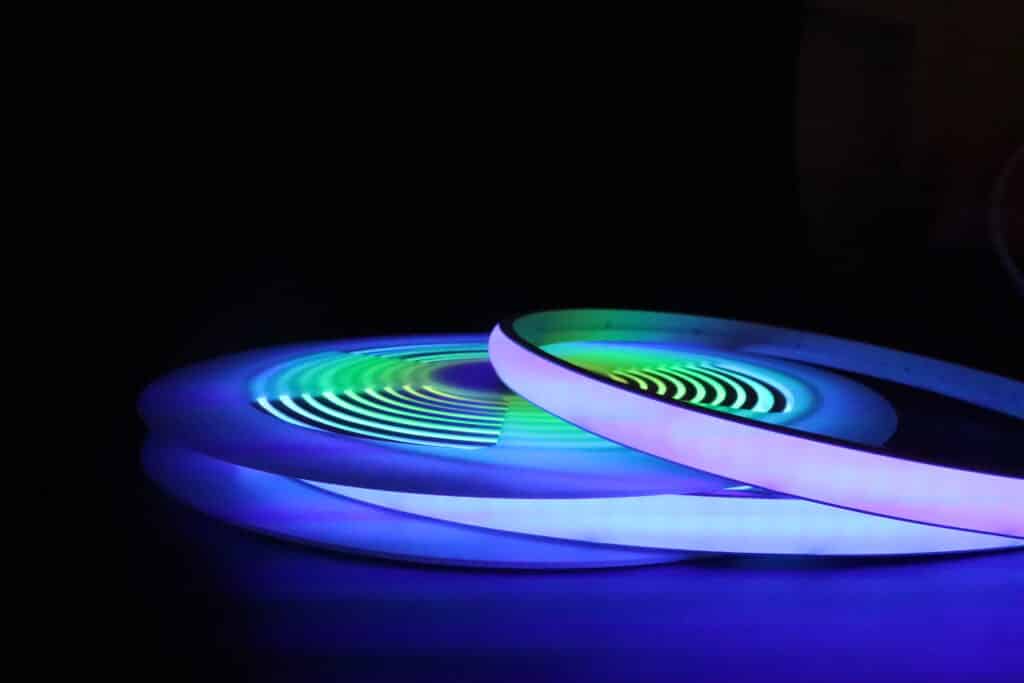

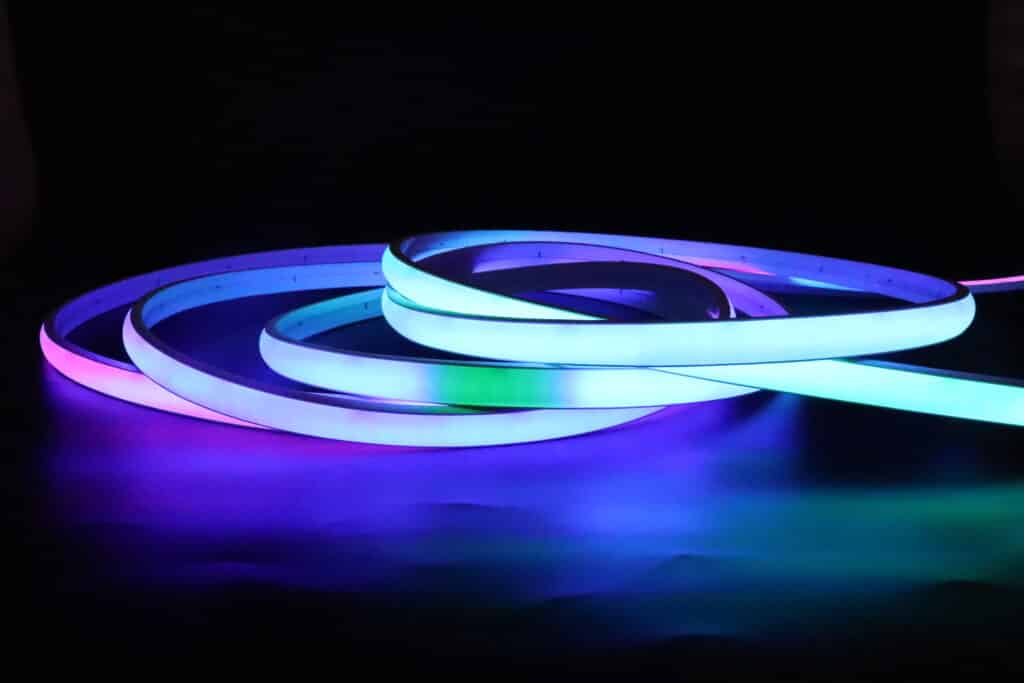

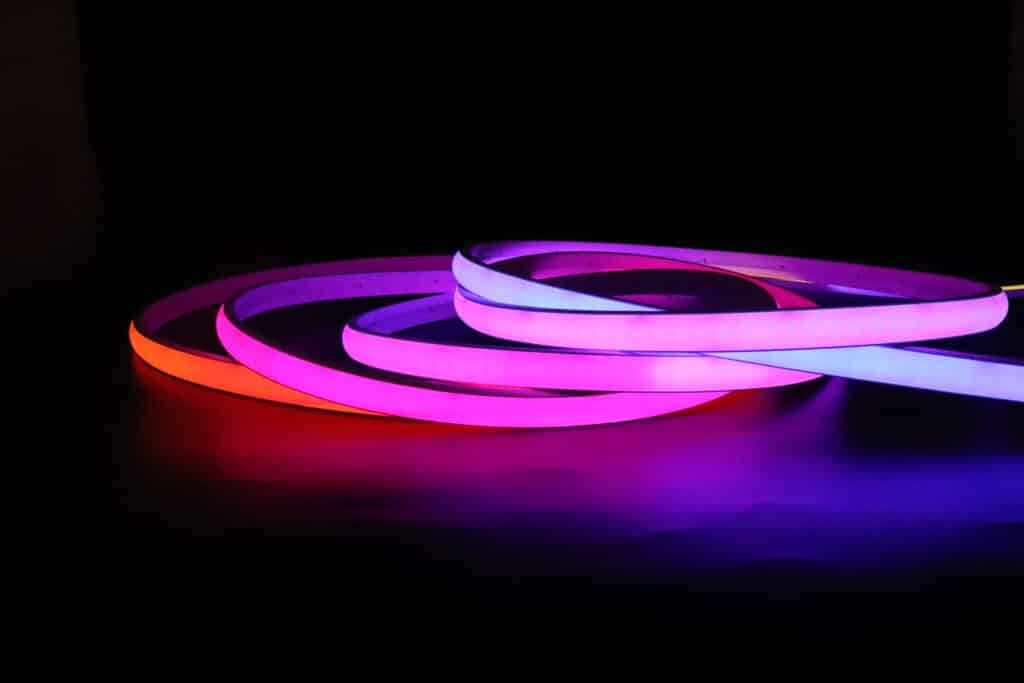

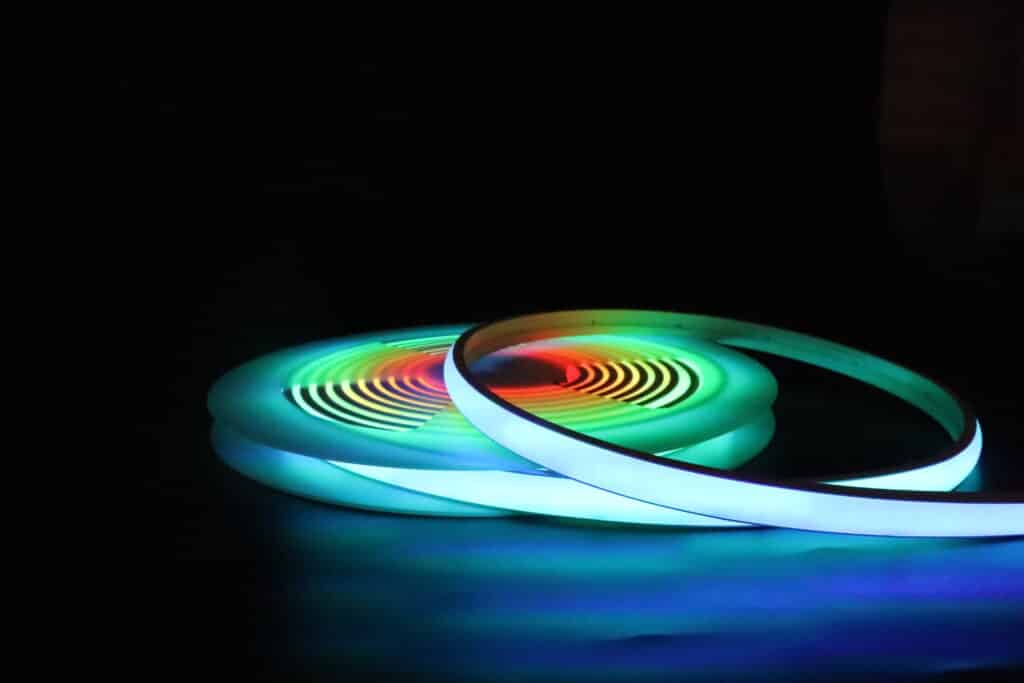

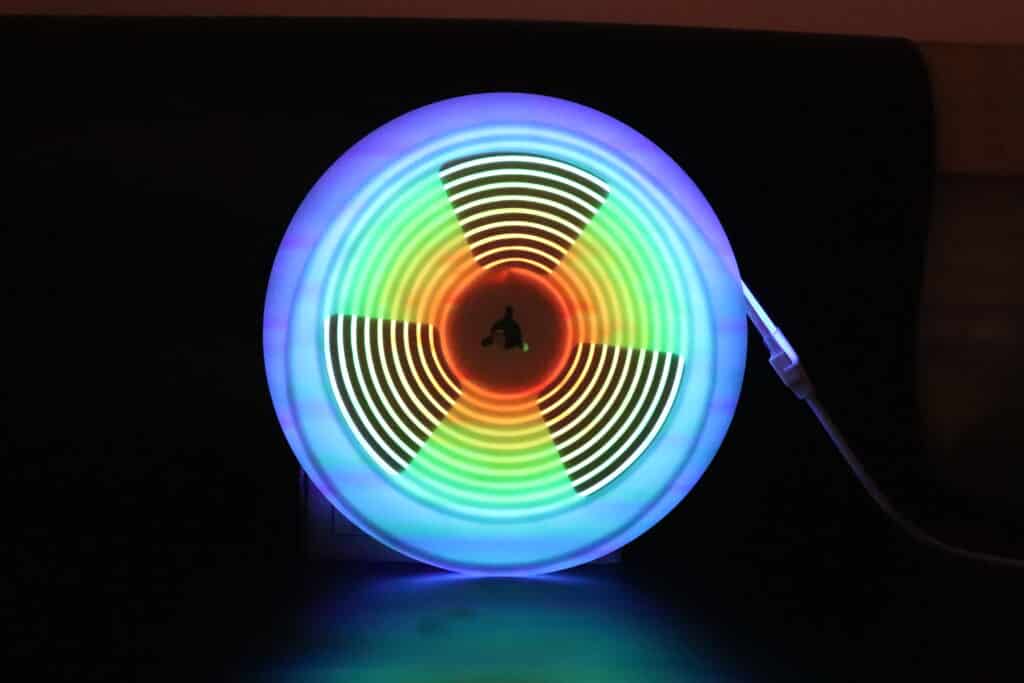

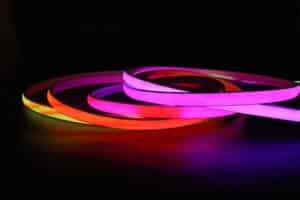

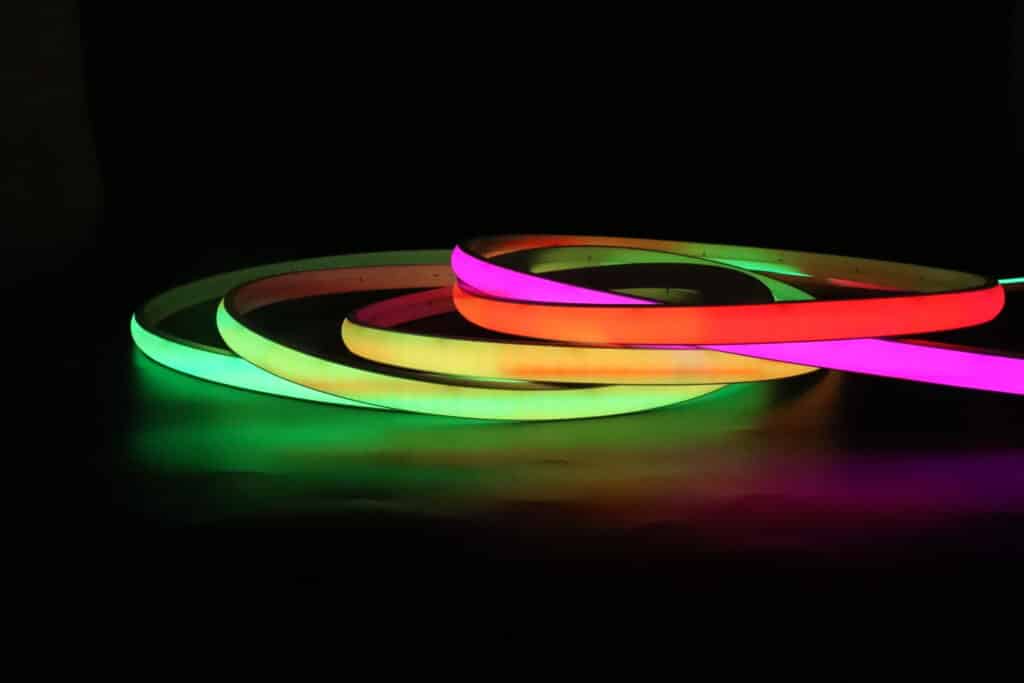

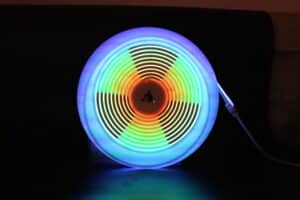

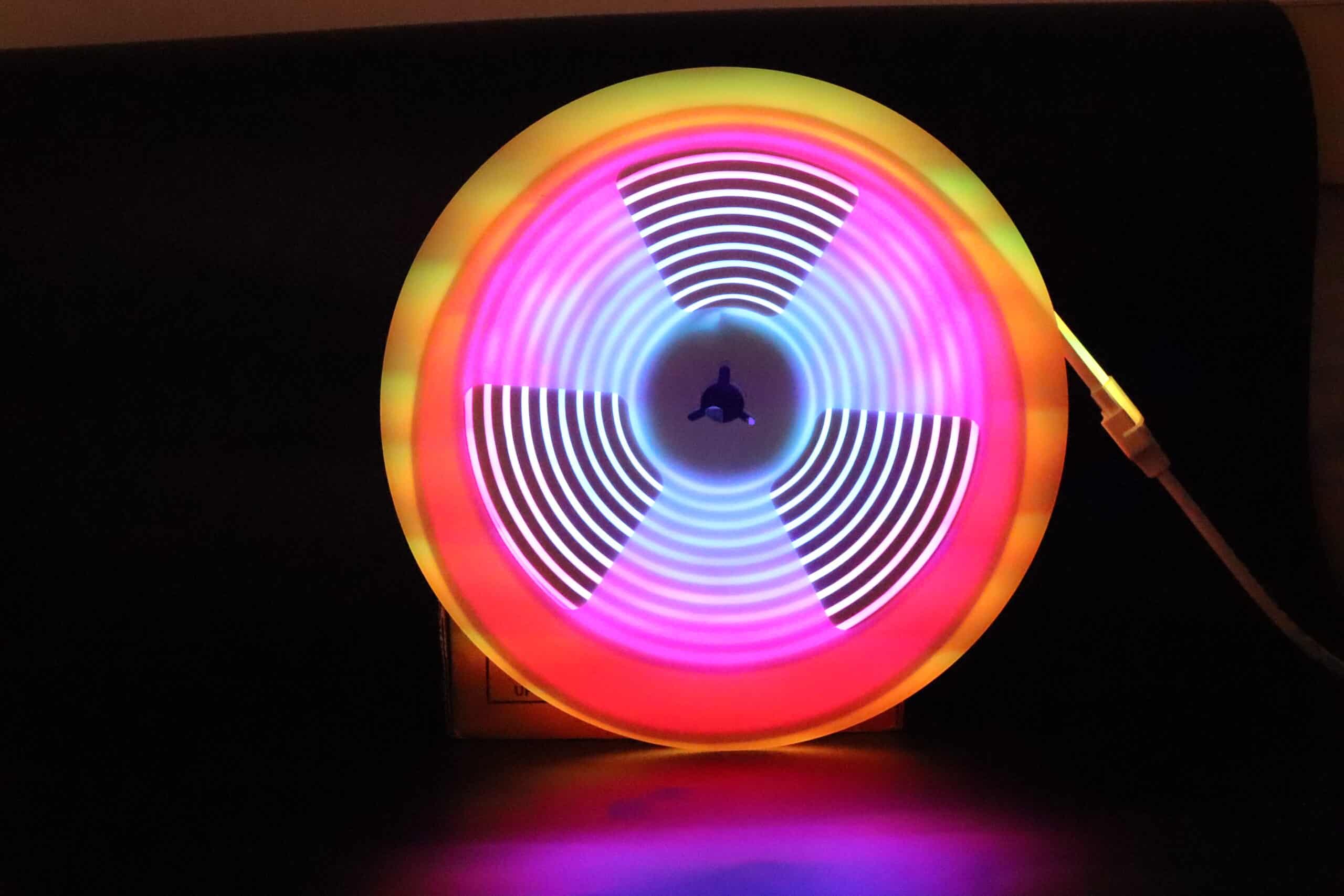

Illuminated & Glow Effect

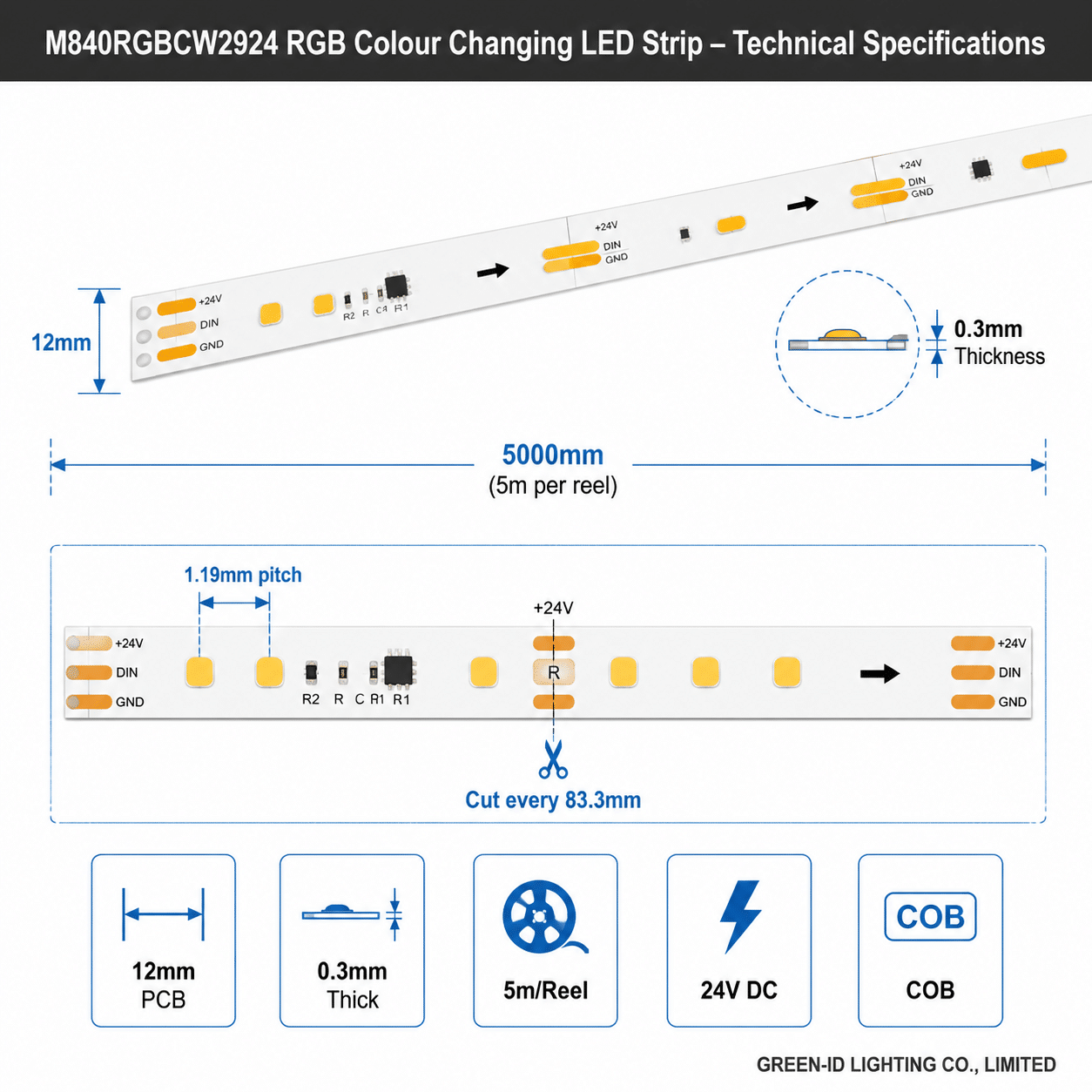

Specifications & Technical Drawing
Product Identification
|
Model |
M840RGBCW2924 |
|---|---|
|
LED Type |
COB |
|
LED Quantity |
840 LEDs/m (4200 LEDs / 5m) |
|
Input Voltage |
DC 24V |
|
Current |
1.2 A |
|
Power |
29 W/m |
Optical Characteristics
|
Color Temperature |
/ |
|---|---|
|
CRI (Ra) |
Ra 90 |
|
Beam Angle |
180 ° |
|
Luminous Flux |
/ |
|
Efficacy (lm/W) |
/ |
Physical & Installation
|
PCB Width |
12 mm |
|---|---|
|
PCB Thickness |
0.3 mm |
|
Cutting Interval |
83.3 mm |
|
Standard Length |
5000mm (5m per reel) |
|
IP Rating |
IP20 (IP65/IP67 optional) |
|
Adhesive Backing |
3M 300LSE double-sided tape |
Compliance & Warranty
|
Certifications |
CE, RoHS, ERP |
|---|---|
|
Warranty |
3 Years Standard |
|
Working Temp. |
-20°C ~ +50°C |
