Wide Low-Profile Series

L2908 LED Aluminum Profile — 29×8 mm Wide Low-Profile Channel

Wide and slim aluminum LED channel for 20–24 mm LED strip lights. Anodized and painted finish in white or black. 188 g/m extrusion with clips and end-cap accessories. Ideal for wide but low-height installations.

Finish options: White (L2908W) · Black (L2908B)

Sample Request OEM/ODM Inquiry Quick Quote

Product Identification

Model	L2908W / L2908B
Product Name	29×8 mm Surface Mount LED Aluminum Profile
Compatible LED Strip	Up to 20–24 mm PCB width
LED Strip Type	SMD 2835 / 5050 / 3528 / COB
Standard Length	1 m / 2 m / 3 m / 5 m per piece
Custom Length	Available (MOQ 50 pcs for non-standard cut)

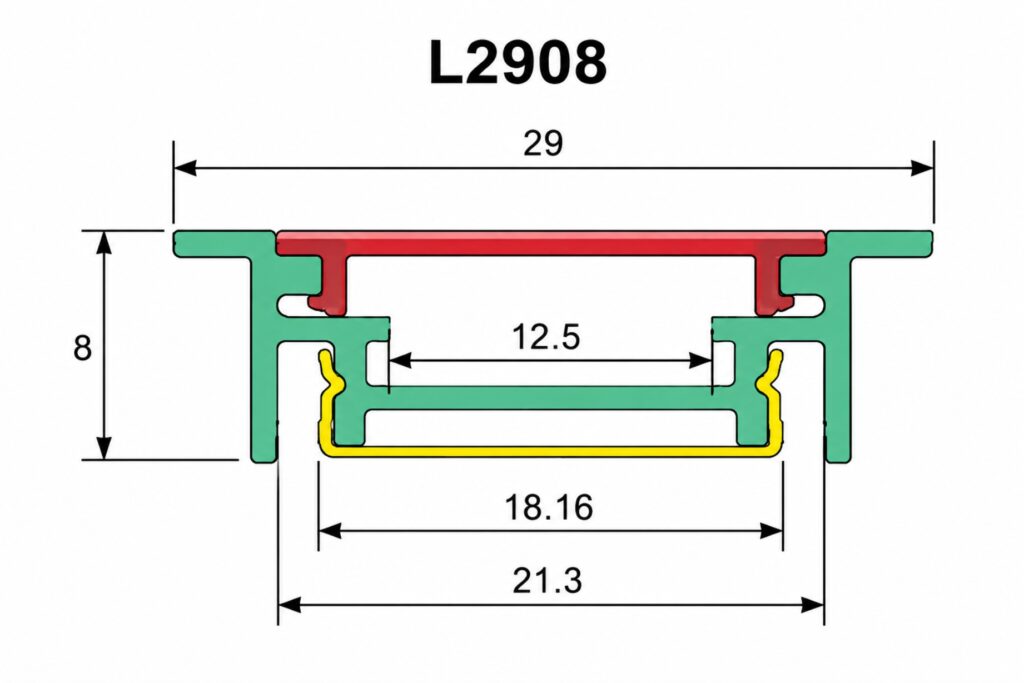

Dimensions & Cross-Section Drawing

Profile Dimensions

External Width	29 mm
External Height	8 mm
Weight per Meter	188 g/m

Length Options

1 meter (stock)
2 meters (stock)
3 meters (stock)
5 meters (stock)
Custom cut — contact sales

Specifications

Parameter	Value
Material	6063-T5 aluminum alloy
Surface Treatment	Anodized + painting (white or black)
Profile Shape	Square / rectangular channel
Dimensions (W × H)	29 mm × 8 mm
Weight	188 g/m
Installation	Mounting clips + screw (included)
End Cap	Plastic end cap (included)
Diffuser	Optional PC / PMMA cover (clear / frosted / opal)
IP Rating	IP20 (IP65 optional with sealed end caps)
Working Temperature	-20°C ~ +50°C
Certification	CE, RoHS, REACH
Warranty	3 Years

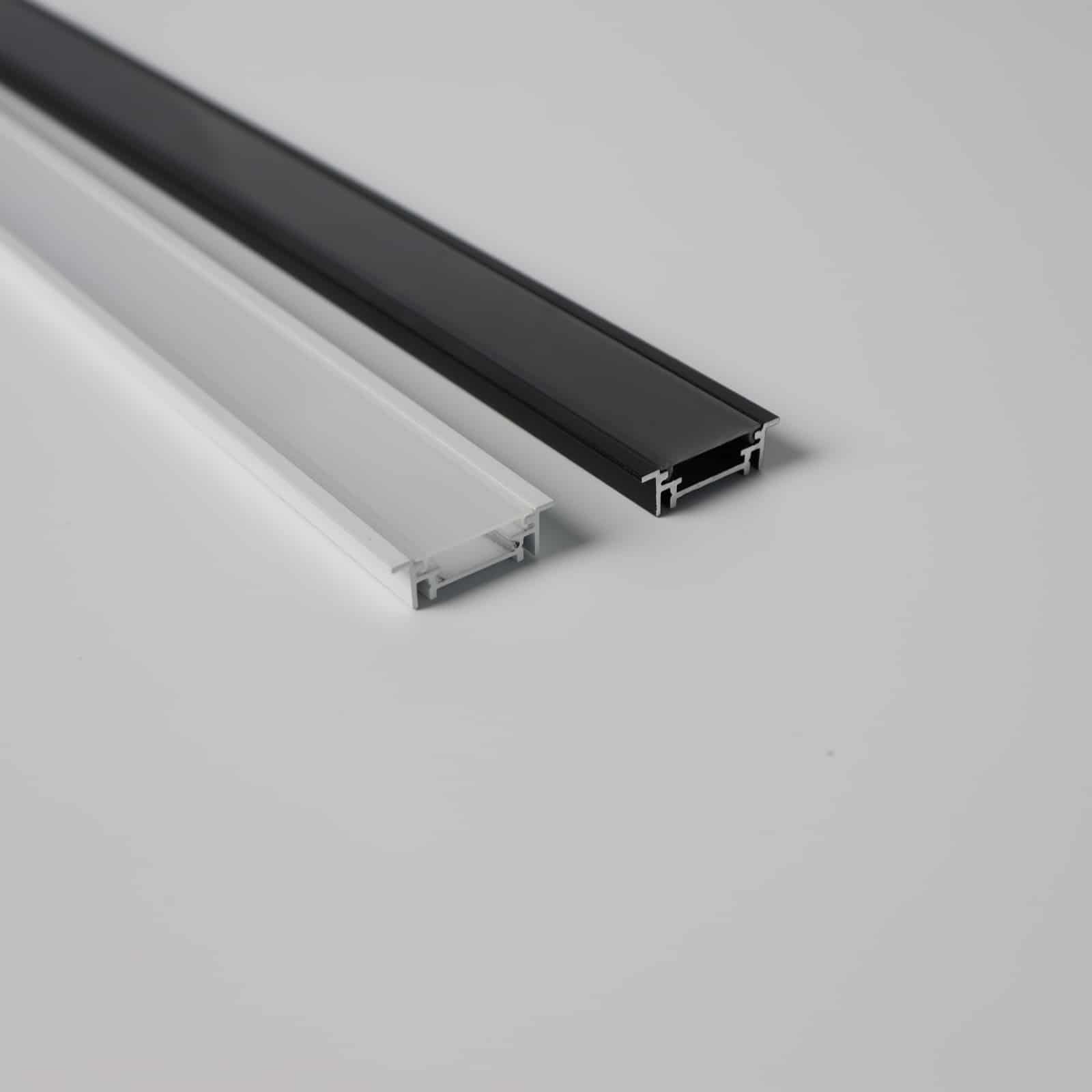

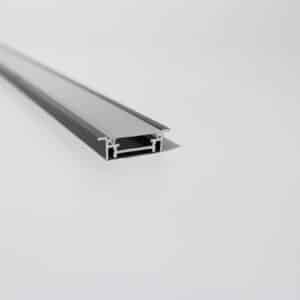

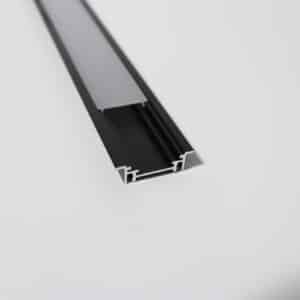

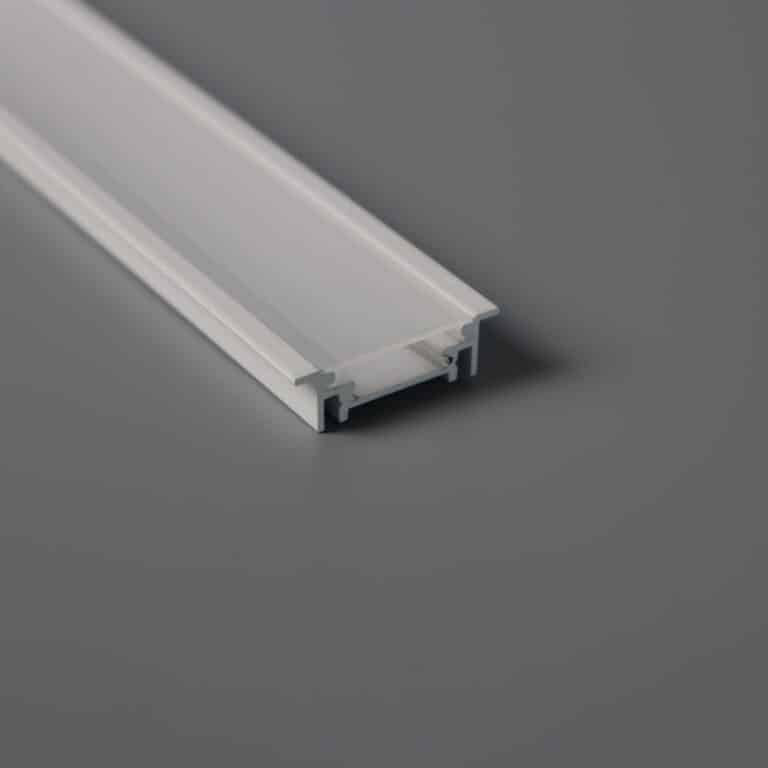

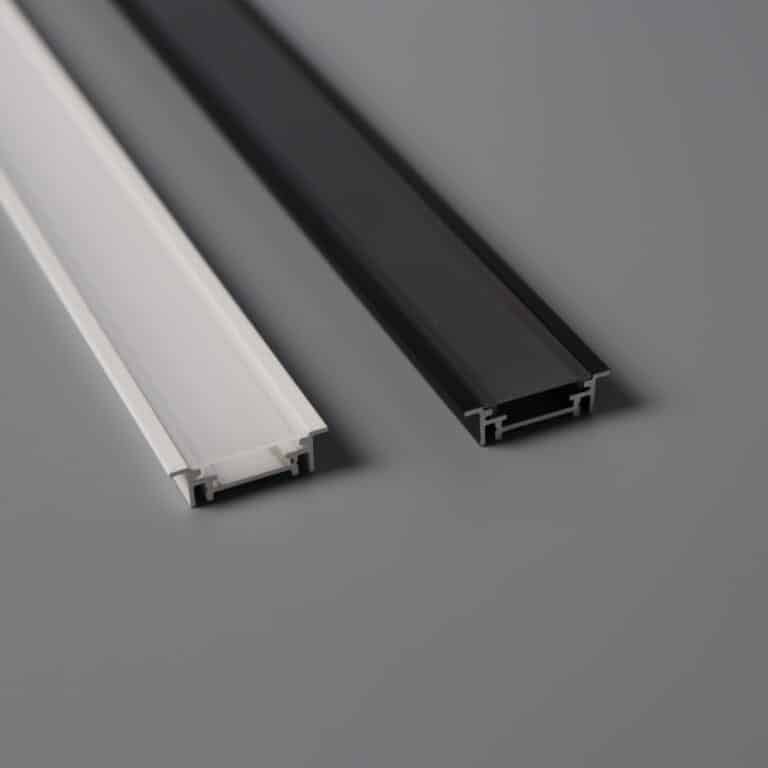

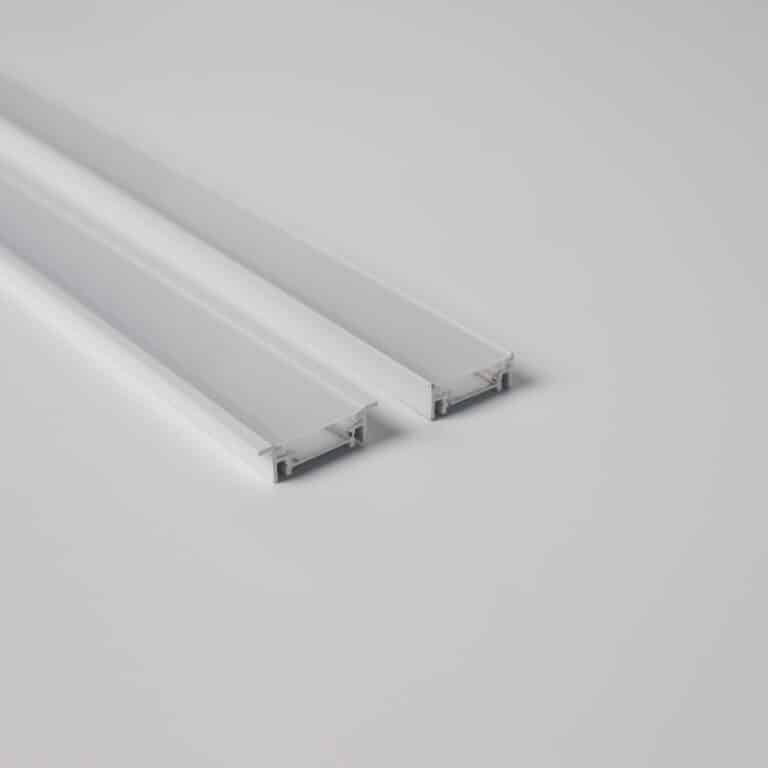

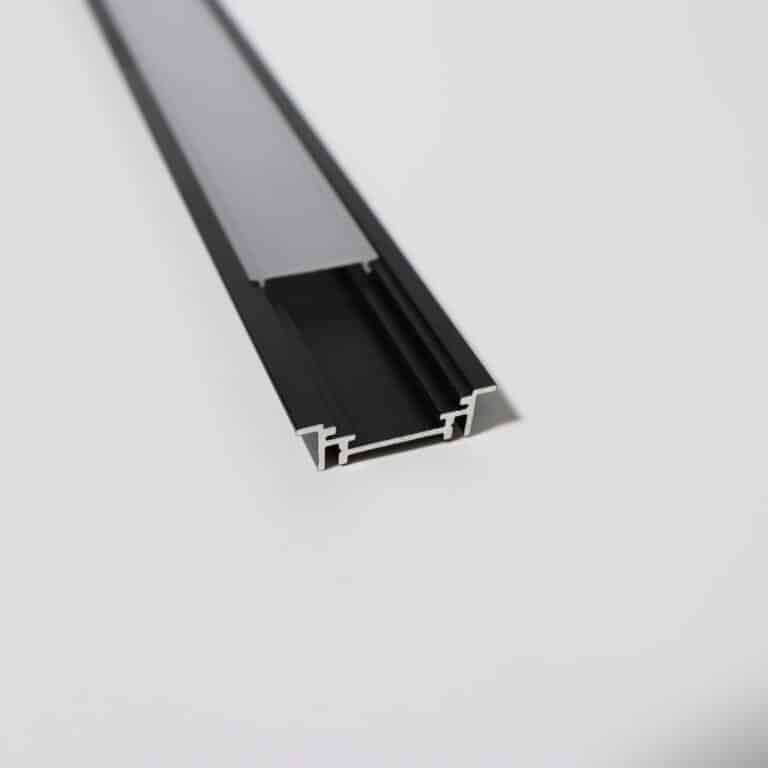

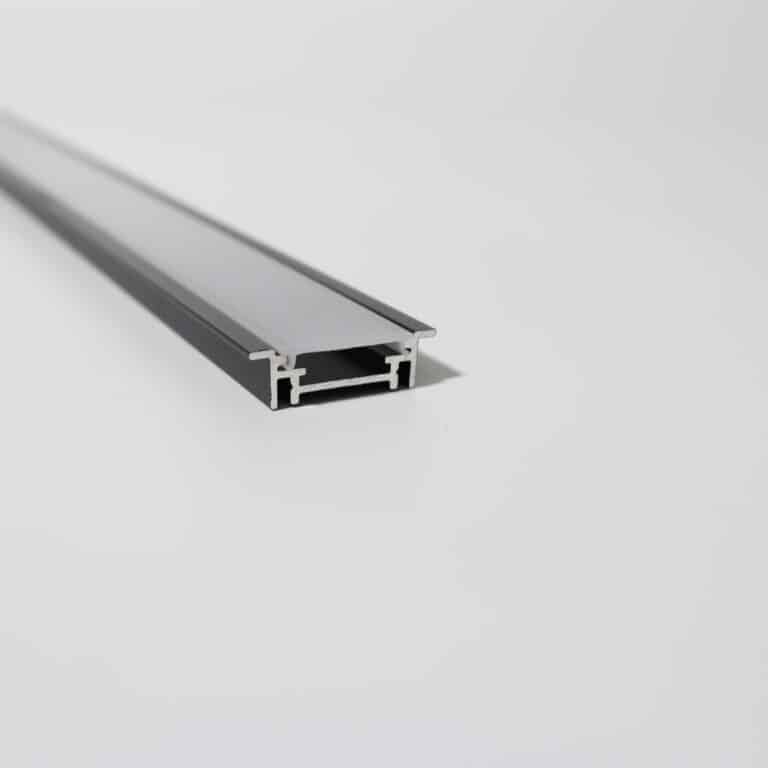

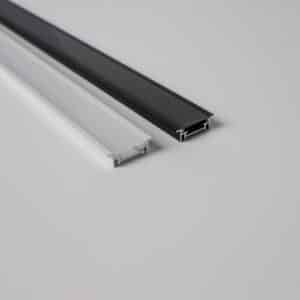

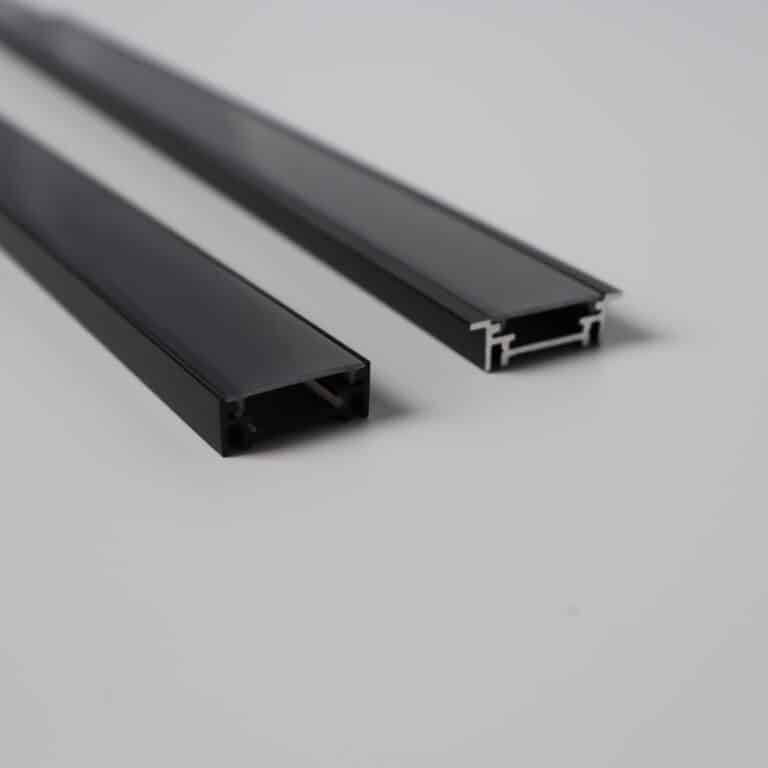

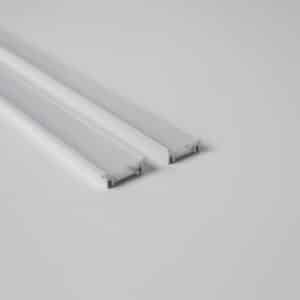

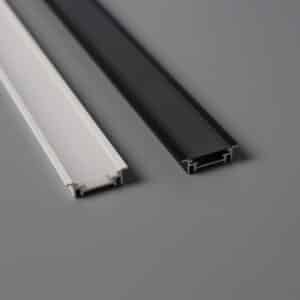

Physical Product Photos

Installation Guide

1. Mount the Clips

Fix the mounting clips to the surface with screws at 300–400 mm intervals. L2908 is a 29 mm wide profile; ensure the surface is flat for even contact.

2. Insert LED Strip

Place the LED strip inside the channel. L2908 accepts up to 20–24 mm PCB. Peel 3M tape and stick to the base, or use silicone adhesive for high-heat applications.

3. Clip the Profile

Snap the aluminum profile onto the mounted clips. Press firmly until both sides engage. The 188 g/m weight ensures stability in vertical applications.

4. Seal the Ends

Slide the end caps onto each end. For IP65 requirement, add silicone sealant before fitting the caps.

Compatible Accessories

Mounting clips: Spring steel, 1 clip per 300 mm (included)

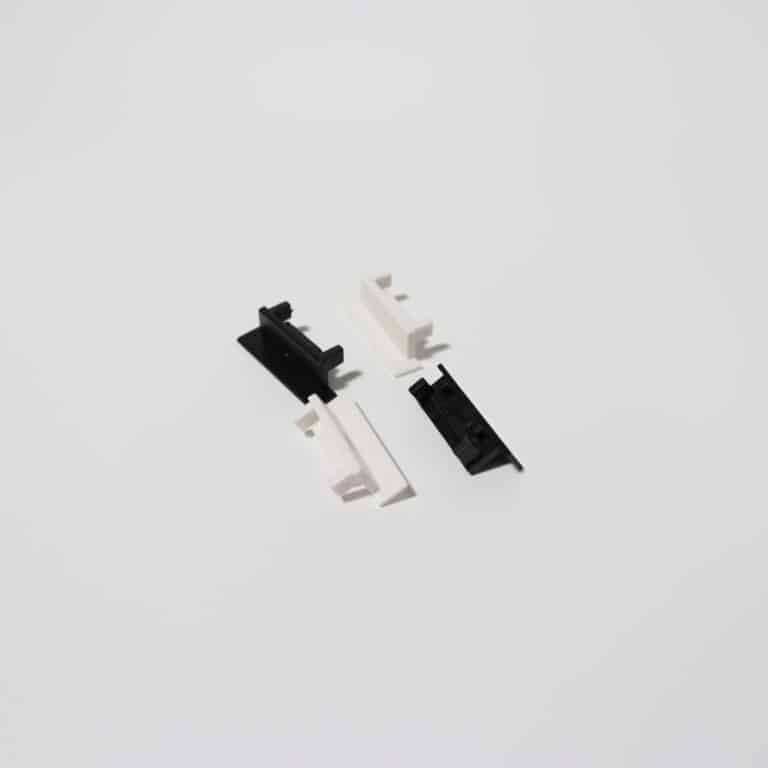

End caps: Plastic, black / white color matched (included)
Diffuser cover: PC frosted / clear / opal, sold separately by meter
Corner connector: 90° / 180° internal connector for seamless joints

Real Application Scenarios

L2908 29×8 mm profile is wide enough for COB strips but stays only 8 mm tall. Perfect for low-clearance jobs.

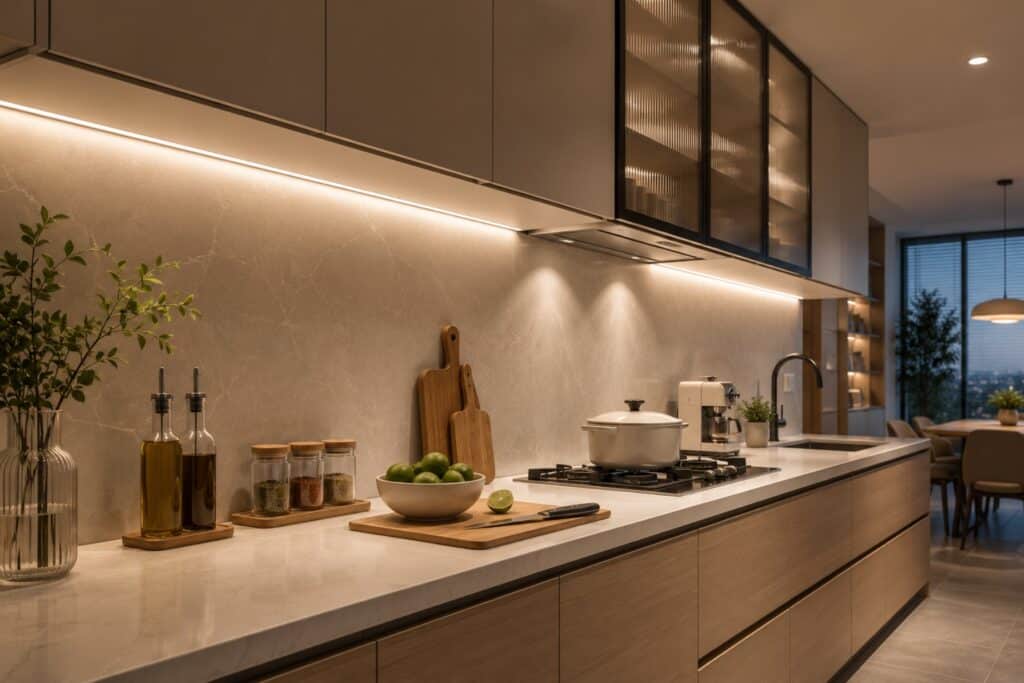

Cabinet & Under-Shelf Lighting

29 mm width fits wide COB LED strips for even light without dots.

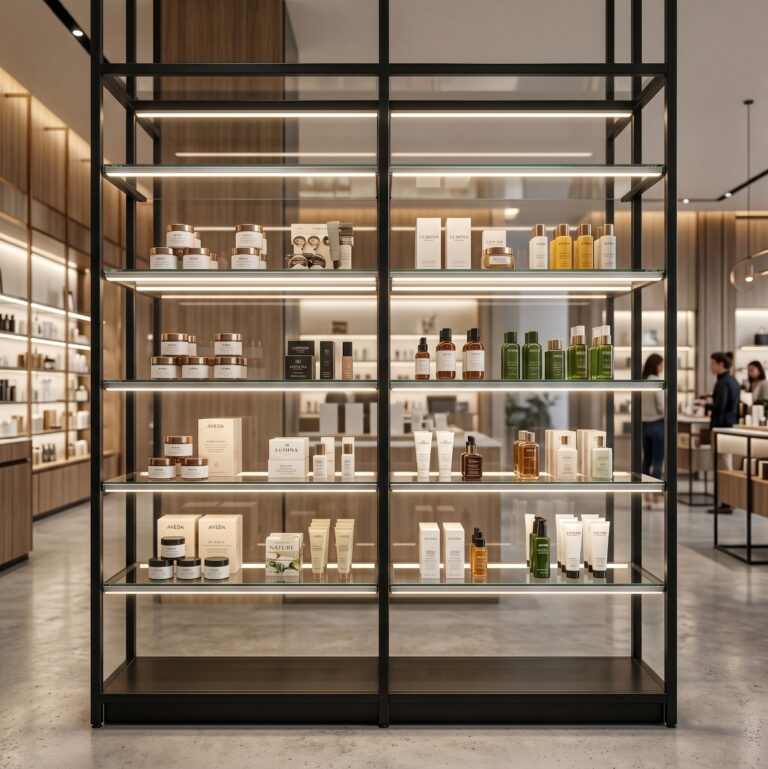

Retail Shelf Lighting

Low 8 mm height keeps shelves looking clean and open.

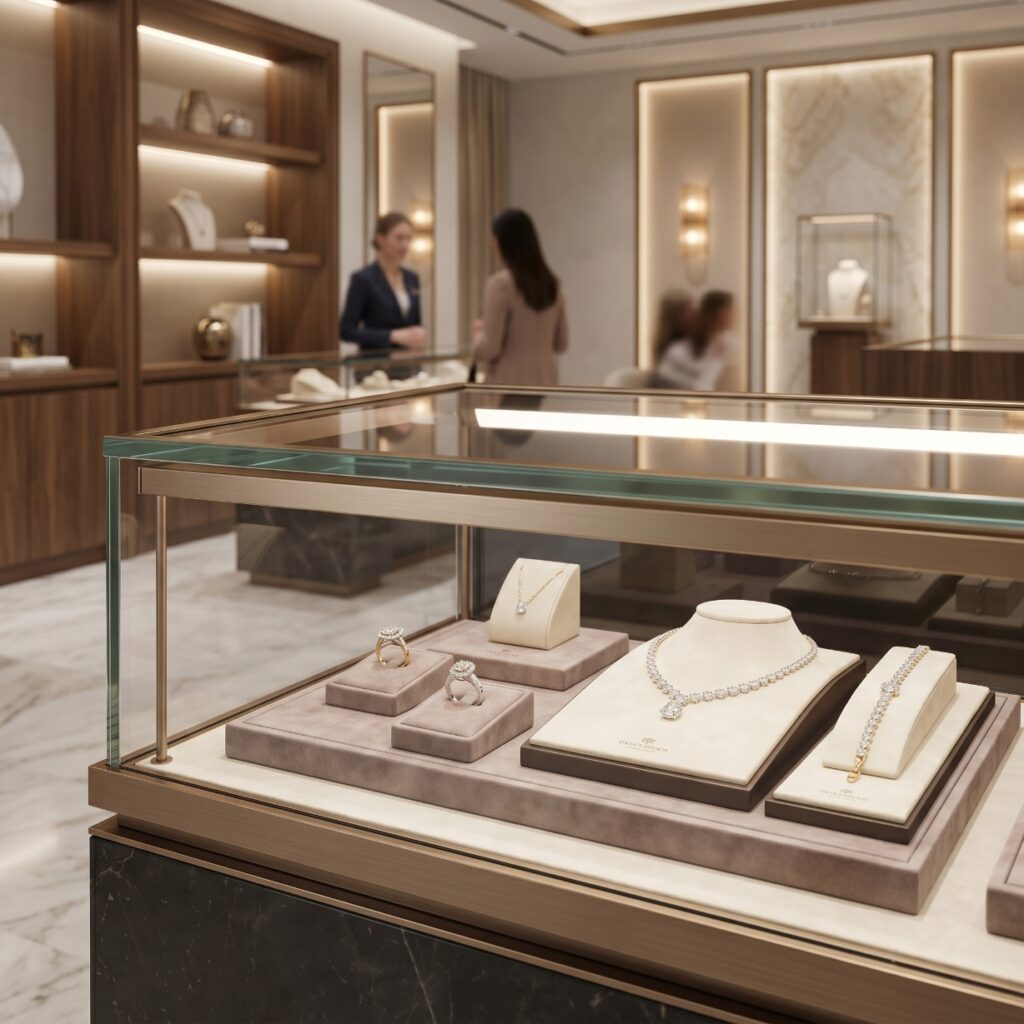

Display Case Integration

Wide channel allows double-row LED strips for extra brightness.

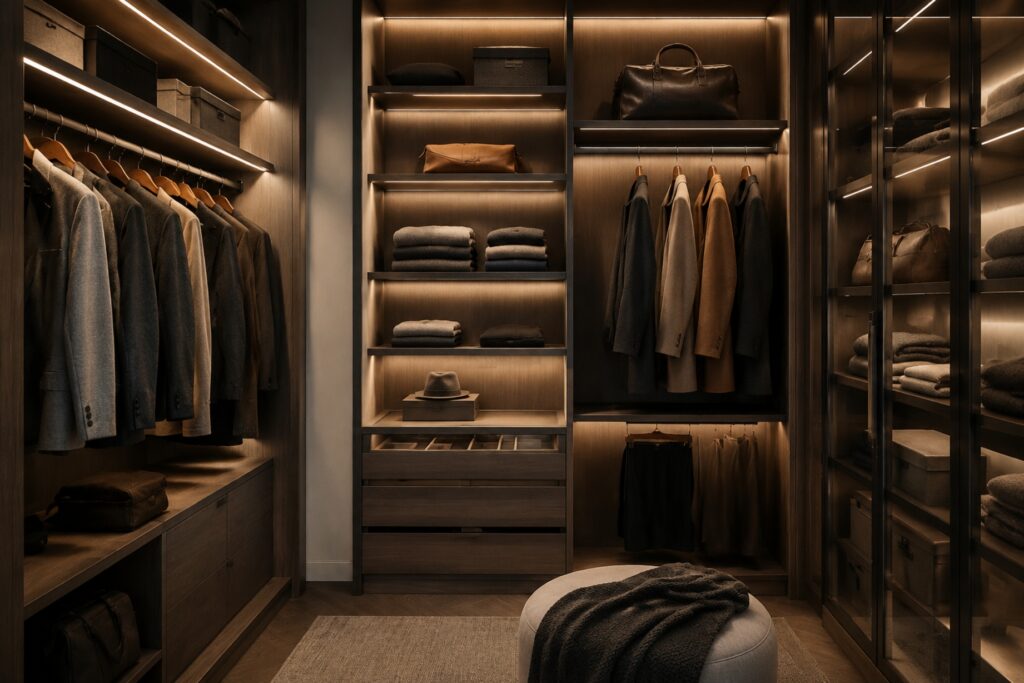

Furniture & Wardrobes

Slim profile does not reduce storage space inside cabinets.

Where to Use L2908

Kitchen cabinets: Under-cabinet task lighting with 24V LED strips
Retail shelves: Product illumination for supermarkets, boutiques, jewelry stores
Office ceilings: Cove lighting and indirect ambient light
Hotels & hospitality: Headboard lighting, minibar accent lighting
Bar counters: Front-edge and under-counter strip lighting
Exhibition booths: Portable display case lighting with custom lengths

Compare L2908 with Similar Profiles

Model	Dimensions	Weight	Best For
L2325	23 × 25 mm	316 g/m	Compact 15–18 mm LED strips
L2925	29 × 25 mm	327 g/m	20–24 mm LED strips, heavy-duty use
L2908	29 × 8 mm	188 g/m	Low-profile surface mount
L3010	30 × 10 mm	260 g/m	Mid-size silver anodized finish

Frequently Asked Questions

L2908 has an internal channel width of approximately 24 mm. It is compatible with LED strips up to 20–24 mm PCB width, including standard 10 mm, 12 mm, 15 mm, 20 mm, and 24 mm COB LED strips.

Yes. Standard stock lengths are 1 m, 2 m, 3 m, and 5 m. Custom cutting is available with an MOQ of 50 pieces for non-standard lengths. We also offer drilling and end-cap pre-assembly as part of our OEM service.

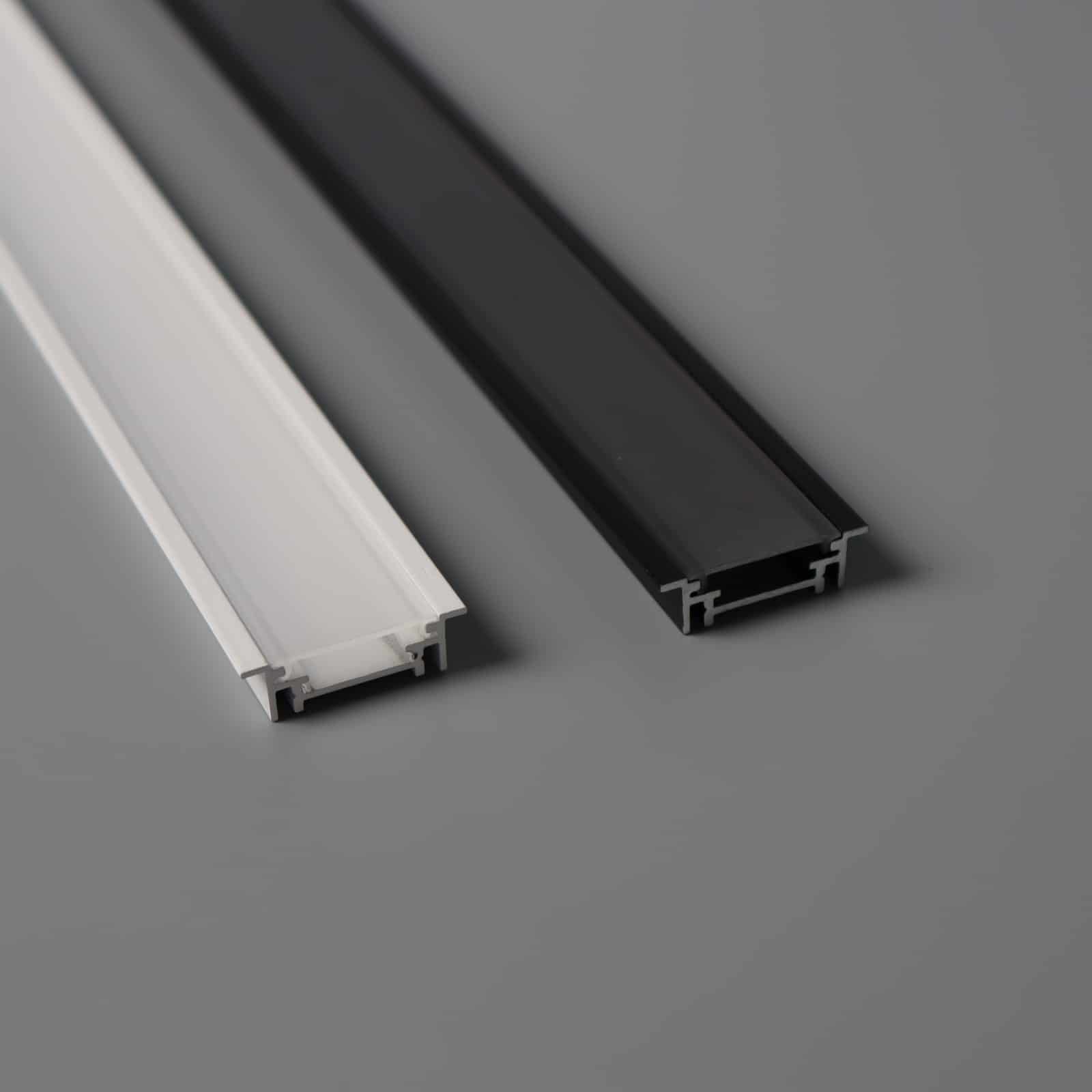

L2908W and L2908B are identical in dimensions, weight, and material. The only difference is the surface finish color: L2908W is white painted, and L2908B is black painted. Both use anodized + painting process for corrosion resistance. Choose white for better light reflection, or black for concealed installation.

The standard L2908 package includes mounting clips and plastic end caps. The PC/PMMA diffuser cover is sold separately. Available options: clear (max brightness), frosted (medium diffusion), and opal (maximum uniformity).

L2908 is rated IP20 as standard, suitable for indoor dry environments. For outdoor or damp locations, we can supply IP65-rated versions with sealed end caps and silicone gaskets. Contact us for the IP65 specification and MOQ.

Sample orders: 1–5 pieces, ships within 3–5 business days. Bulk orders (standard lengths): MOQ 100 meters, lead time 10–15 days. OEM custom orders: MOQ 500 meters, lead time 20–25 days. Monthly production capacity is 500,000 meters.
