L3010 LED Aluminum Profile — 30×10 mm Silver Anodized Channel

Aluminum LED channel for 20–24 mm LED strip lights. Silver anodized finish. 260 g/m extrusion with aluminum end-cap accessories. Ideal for furniture, displays, and clean architectural lighting.

Finish options: Silver (L3010S)

Sample Request OEM/ODM Inquiry Quick Quote

Product Identification

Model	L3010S
Product Name	30×10 mm Surface Mount LED Aluminum Profile
Compatible LED Strip	Up to 20–24 mm PCB width
LED Strip Type	SMD 2835 / 5050 / 3528 / COB
Standard Length	1 m / 2 m / 3 m / 5 m per piece
Custom Length	Available (MOQ 50 pcs for non-standard cut)

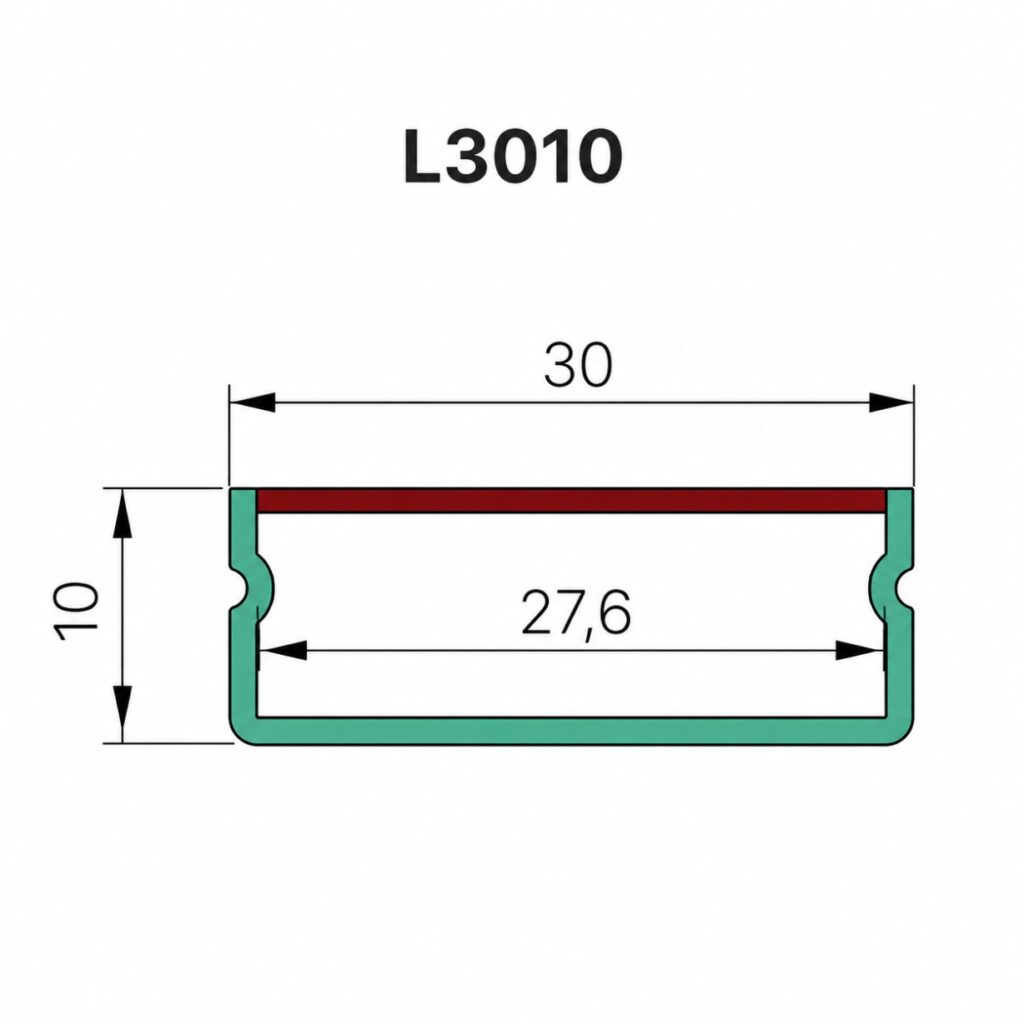

Dimensions & Cross-Section Drawing

Profile Dimensions

External Width	30 mm
External Height	10 mm
Weight per Meter	260 g/m

Length Options

1 meter (stock)
2 meters (stock)
3 meters (stock)
5 meters (stock)
Custom cut — contact sales

Specifications

Parameter	Value
Material	6063-T5 aluminum alloy
Surface Treatment	Anodized
Profile Shape	Square / rectangular channel
Dimensions (W × H)	30 mm × 10 mm
Weight	260 g/m
Installation	Mounting clips + screw (included)
End Cap	Aluminum end cap (included)
Diffuser	Optional PC / PMMA cover (clear / frosted / opal)
IP Rating	IP20 (IP65 optional with sealed end caps)
Working Temperature	-20°C ~ +50°C
Certification	CE, RoHS, REACH
Warranty	3 Years

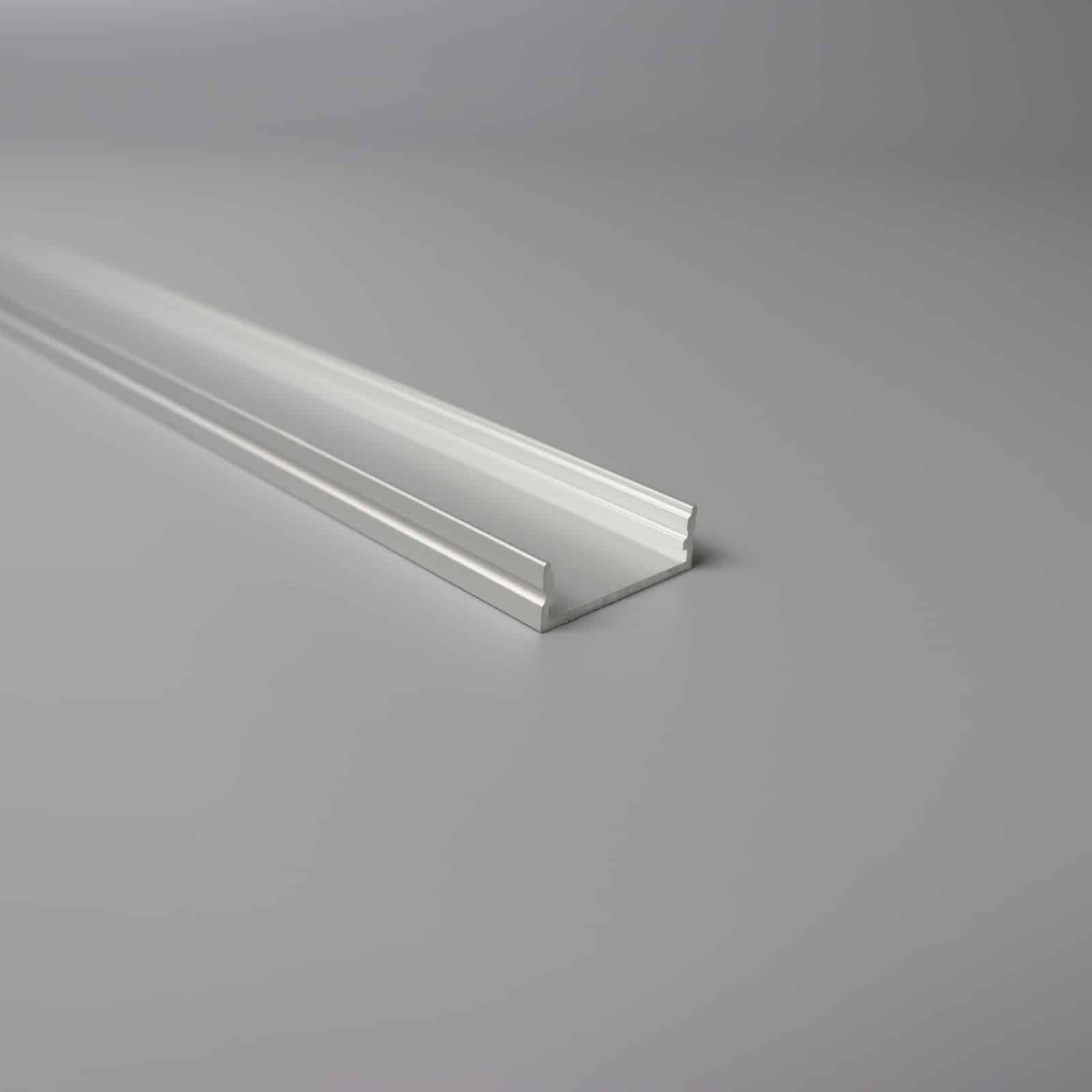

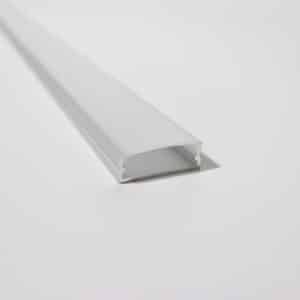

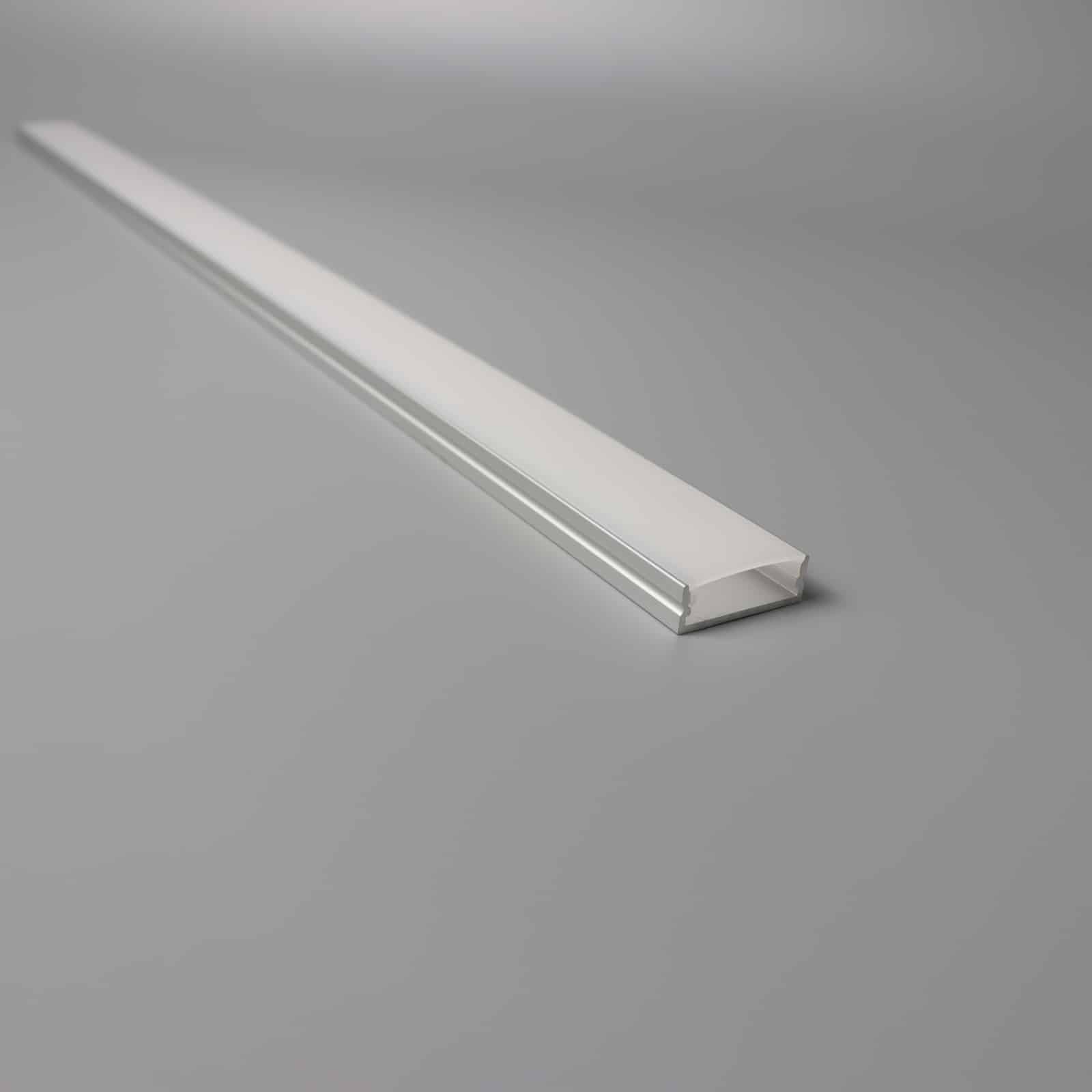

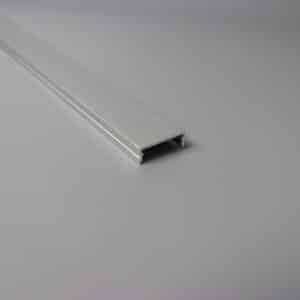

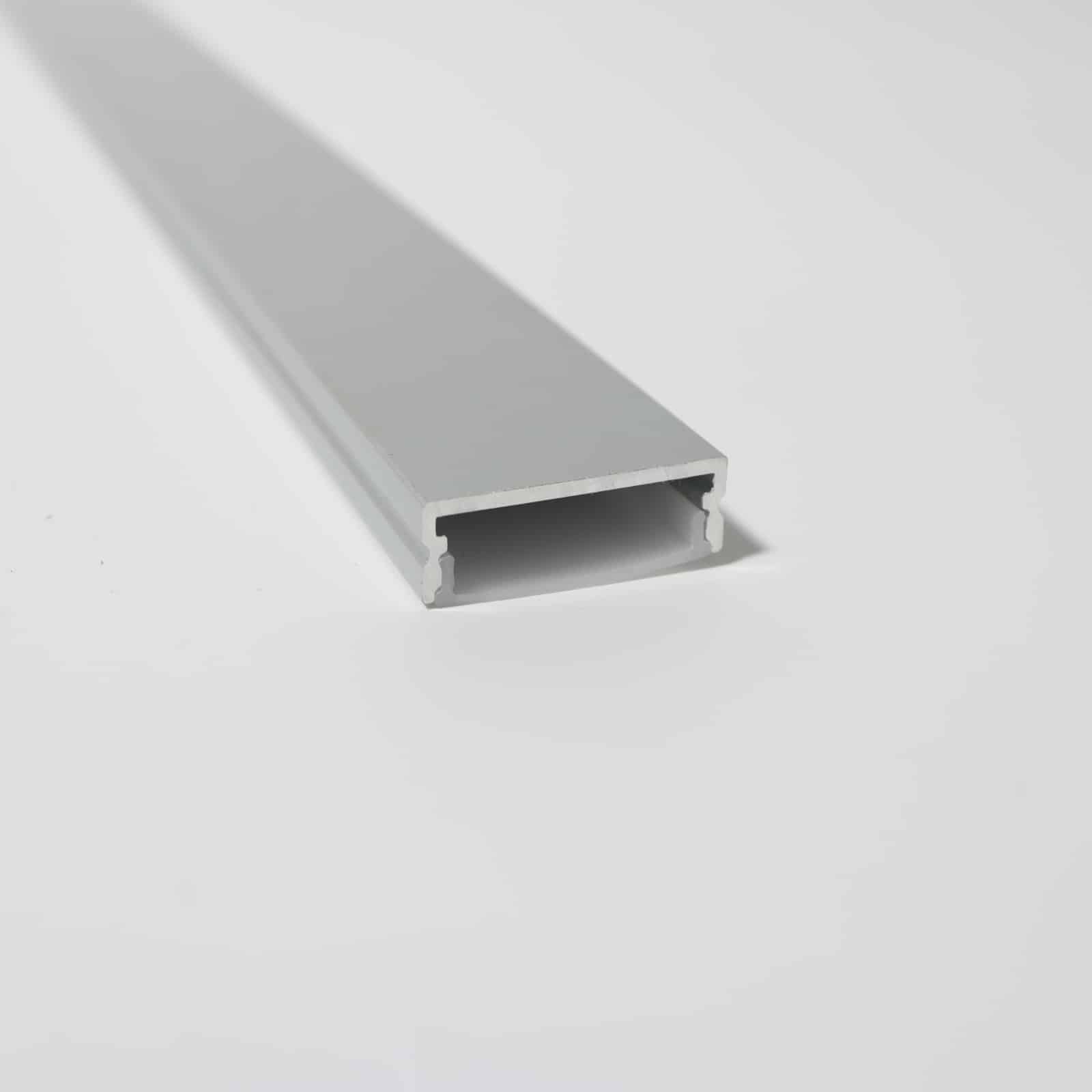

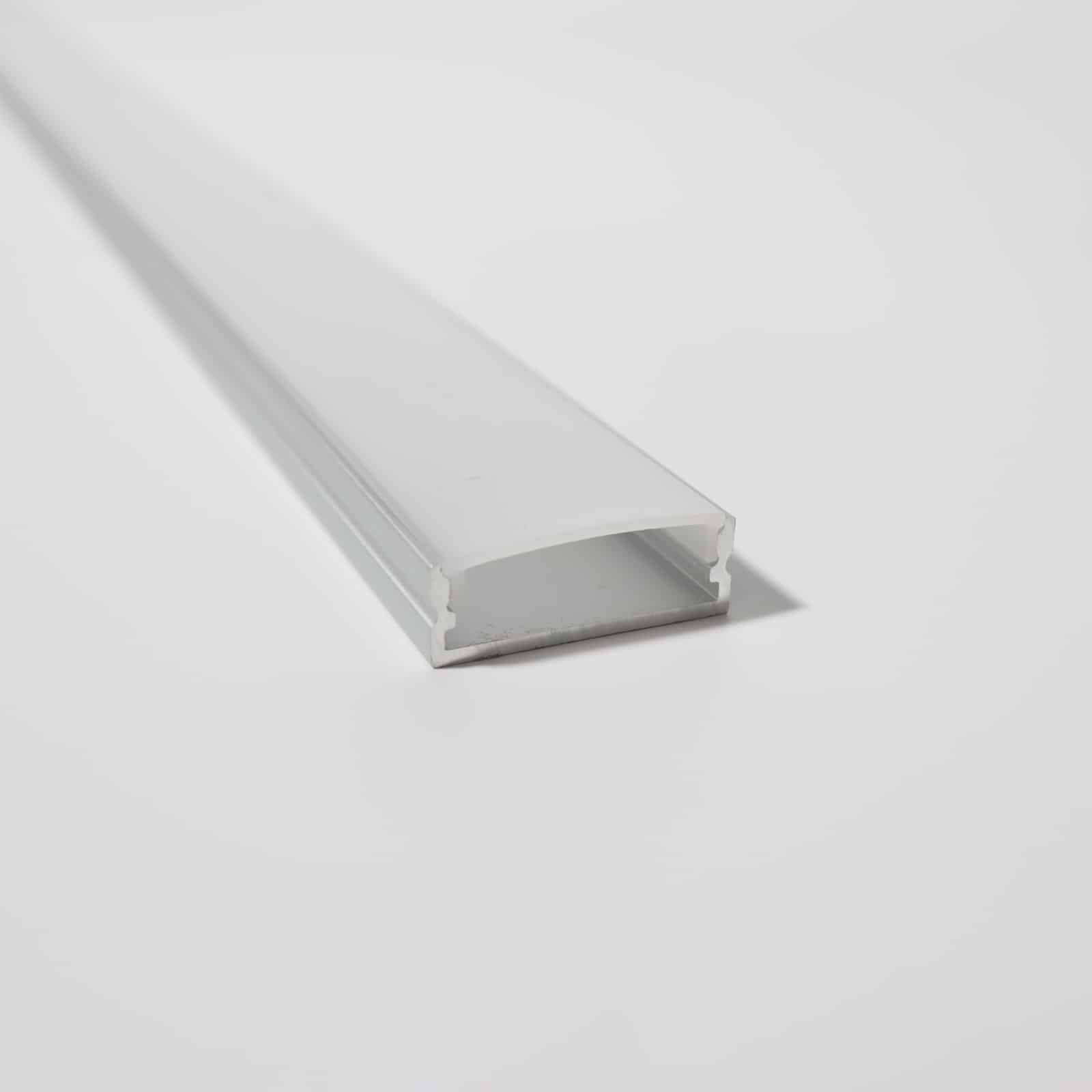

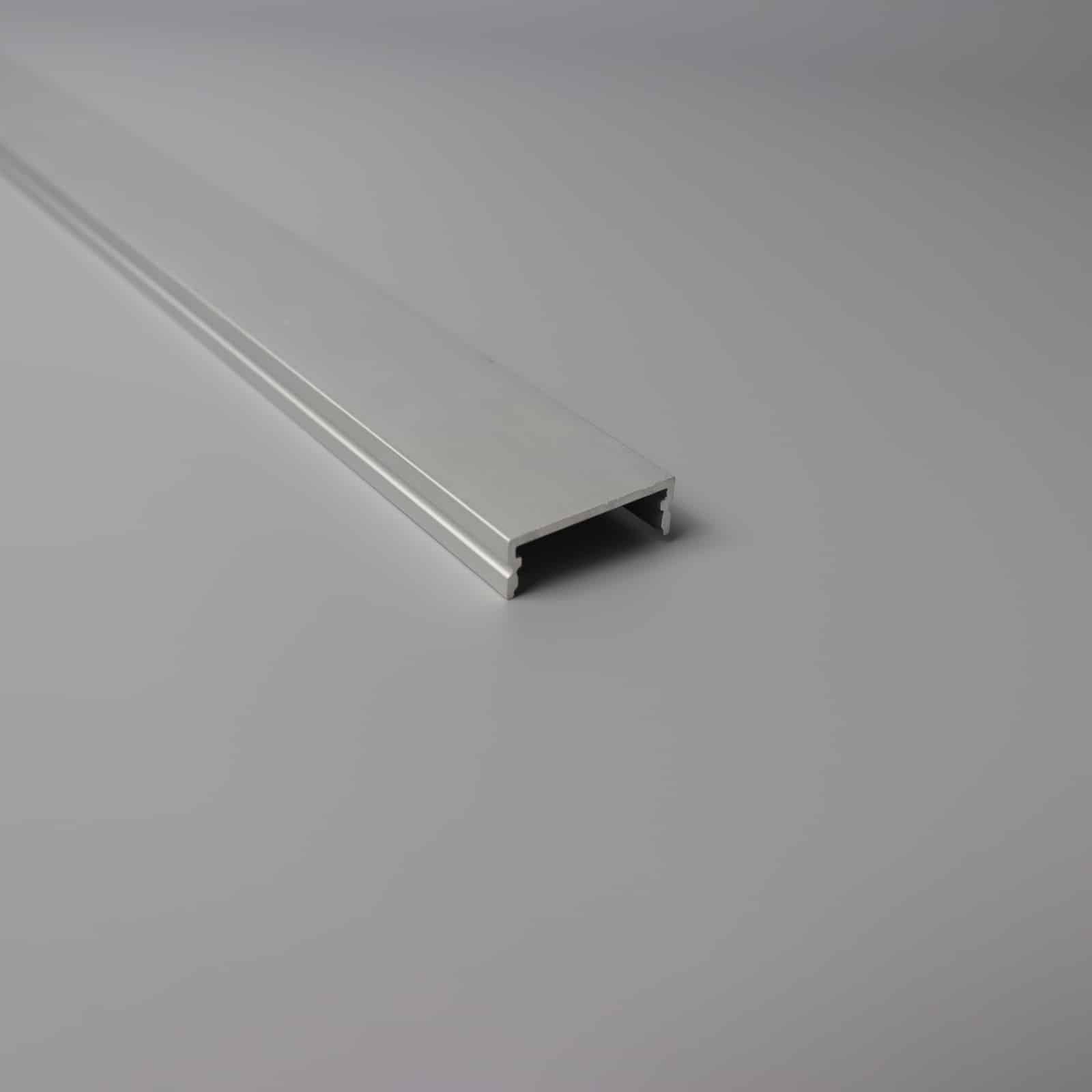

Physical Product Photos

Installation Guide

1. Mount the Clips

Fix the mounting clips to the surface with screws at 300–400 mm intervals. L3010 is a 30 mm wide profile; ensure the surface is flat for even contact.

2. Insert LED Strip

Place the LED strip inside the channel. L3010 accepts up to 20–24 mm PCB. Peel 3M tape and stick to the base, or use silicone adhesive for high-heat applications.

3. Clip the Profile

Snap the aluminum profile onto the mounted clips. Press firmly until both sides engage. The 260 g/m weight ensures stability in vertical applications.

4. Seal the Ends

Slide the end caps onto each end. For IP65 requirement, add silicone sealant before fitting the caps.

Compatible Accessories

Mounting clips: Spring steel, 1 clip per 300 mm (included)
End caps: Aluminum, silver anodized matched (included)
Diffuser cover: PC frosted / clear / opal, sold separately by meter
Corner connector: 90° / 180° internal connector for seamless joints

Real Application Scenarios

L3010 30×10 mm silver profile gives a clean, industrial look that matches modern aluminum and glass designs.

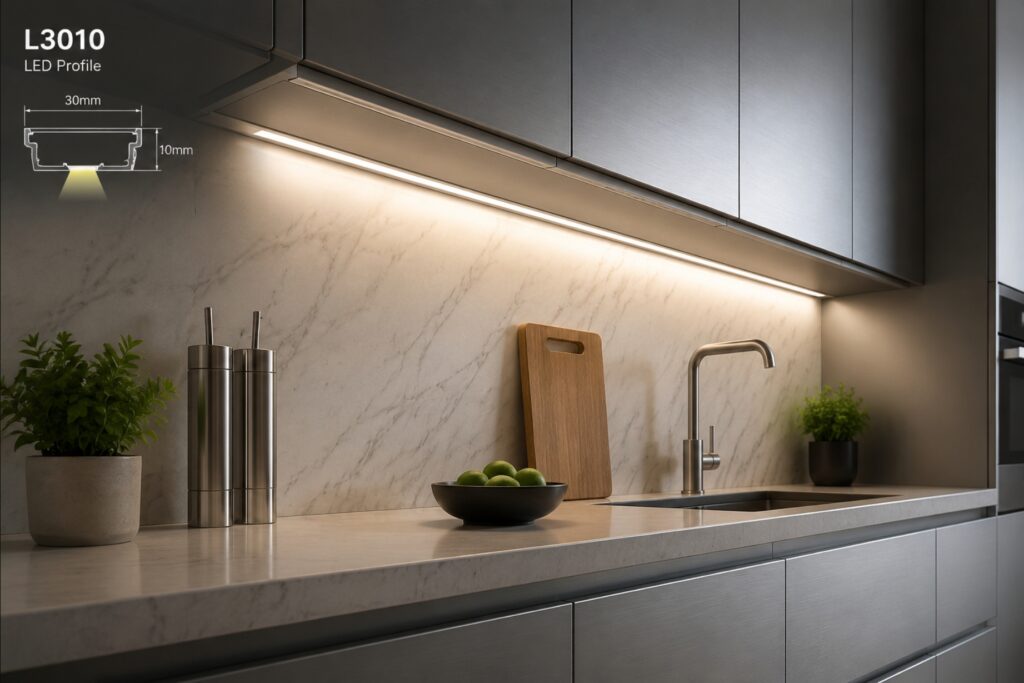

Cabinet & Under-Shelf Lighting

Silver anodized finish matches aluminum furniture frames and handles.

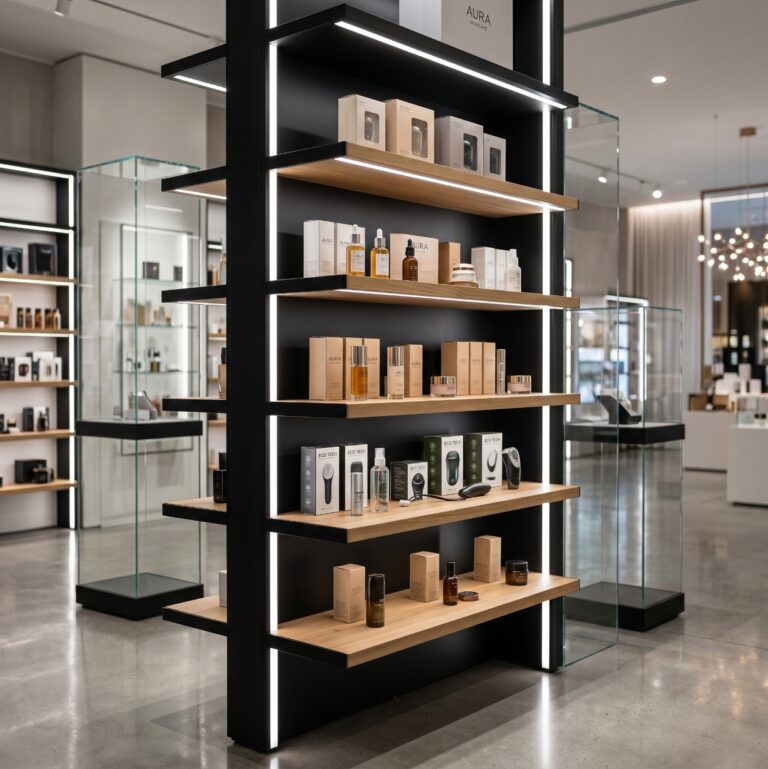

Retail Display Systems

Industrial look suits tech stores and modern retail concepts.

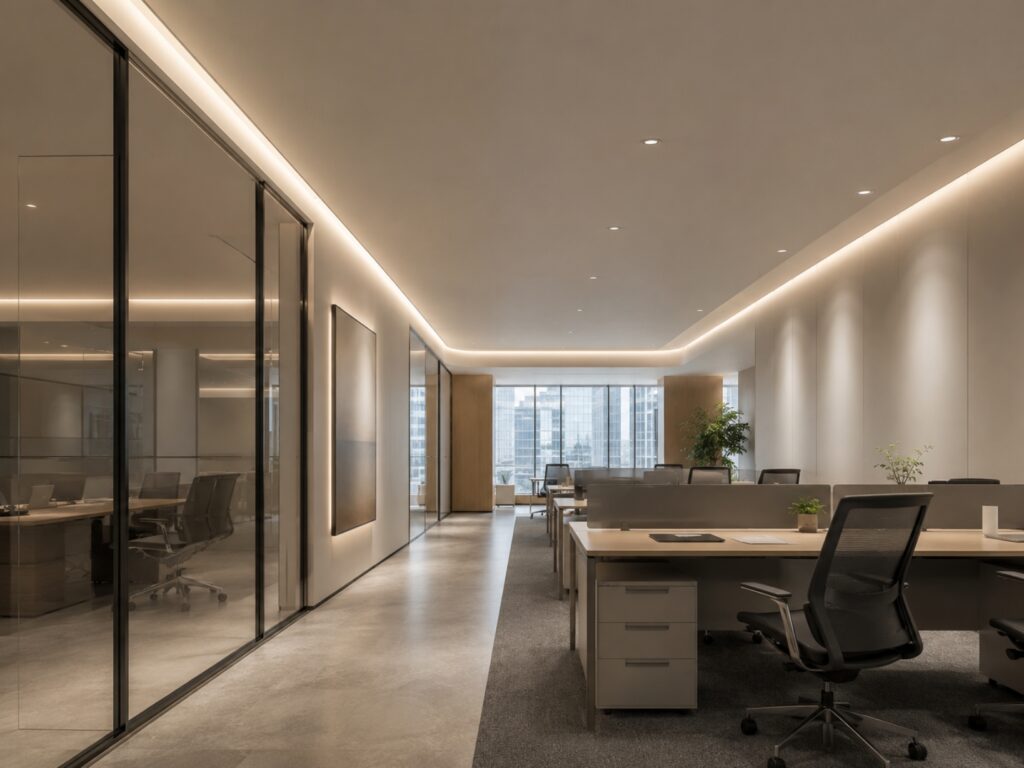

Architectural Cove Lighting

10 mm height is low enough for most ceiling cove designs.

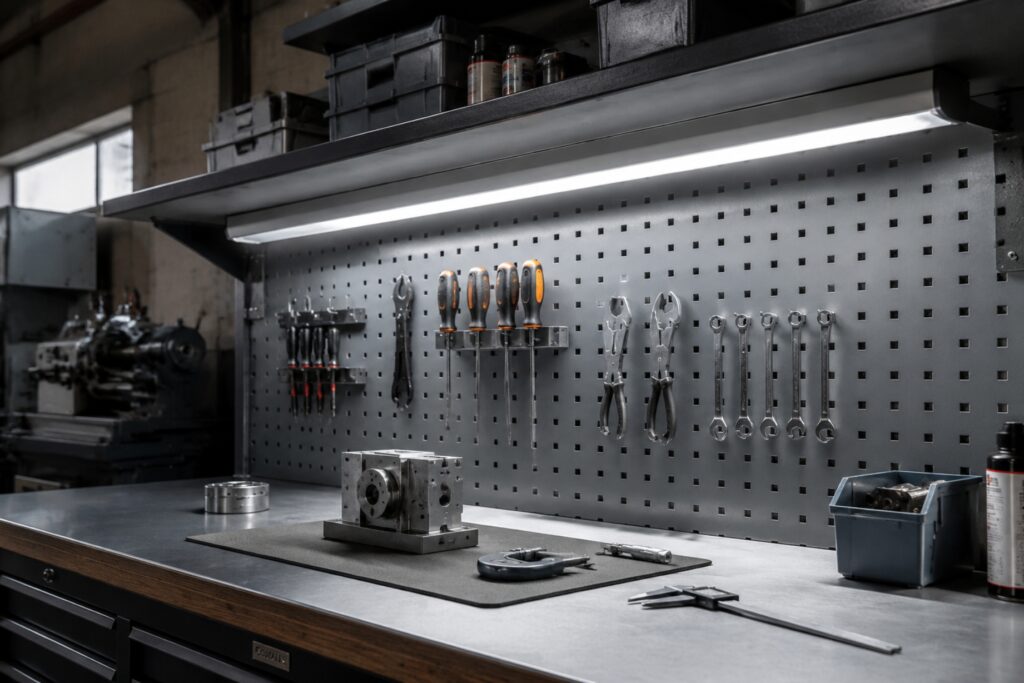

Workshop & Lab Lighting

Robust aluminum end caps protect against bumps and dust.

Where to Use L3010

Kitchen cabinets: Under-cabinet task lighting with 24V LED strips
Retail shelves: Product illumination for supermarkets, boutiques, jewelry stores
Office ceilings: Cove lighting and indirect ambient light
Hotels & hospitality: Headboard lighting, minibar accent lighting
Bar counters: Front-edge and under-counter strip lighting
Exhibition booths: Portable display case lighting with custom lengths

Compare L3010 with Similar Profiles

Model	Dimensions	Weight	Best For
L2325	23 × 25 mm	316 g/m	Compact 15–18 mm LED strips
L2925	29 × 25 mm	327 g/m	20–24 mm LED strips, heavy-duty use
L2908	29 × 8 mm	188 g/m	Low-profile surface mount
L3010	30 × 10 mm	260 g/m	Mid-size silver anodized finish

Frequently Asked Questions

L3010 has an internal channel width of approximately 24 mm. It is compatible with LED strips up to 20–24 mm PCB width, including standard 10 mm, 12 mm, 15 mm, 20 mm, and 24 mm COB LED strips.

Yes. Standard stock lengths are 1 m, 2 m, 3 m, and 5 m. Custom cutting is available with an MOQ of 50 pieces for non-standard lengths. We also offer drilling and end-cap pre-assembly as part of our OEM service.

L3010 is only available in silver anodized finish. The SKU is L3010S. Custom painting is available for OEM orders with MOQ 500 meters.

The standard L3010 package includes mounting clips and aluminum end caps. The PC/PMMA diffuser cover is sold separately. Available options: clear, frosted, and opal.

L3010 is rated IP20 as standard, suitable for indoor dry environments. For outdoor or damp locations, we can supply IP65-rated versions with sealed end caps. Contact us for the IP65 specification and MOQ.

Sample orders: 1–5 pieces, ships within 3–5 business days. Bulk orders (standard lengths): MOQ 100 meters, lead time 10–15 days. OEM custom orders: MOQ 500 meters, lead time 20–25 days. Monthly production capacity is 500,000 meters.
