Model：S320A20W24-2835H-CD2
High Brightness LED Strip – 320 LEDs/m Ultra Dense, 38.4W/m on 20mm PCB, 24V SMD 2835
|
Parameter |
CRI 90 |
CRI 80 |
|---|---|---|
|
Luminous Flux |
6144 lm/M |
6912 lm/M |
|
Efficacy |
160 lm/M |
180 lm/M |
|
Power Consumption |
38.4 W/m |
5.4 W/m |
Basic Information
S320A20W24-2835H-CD2 High Brightness Series with ultra high-density 320 LEDs/m on extra-wide 20mm PCB at 38.4W/m, designed for extreme brightness commercial installations and large-scale architectural lighting.
Physical Product Photos

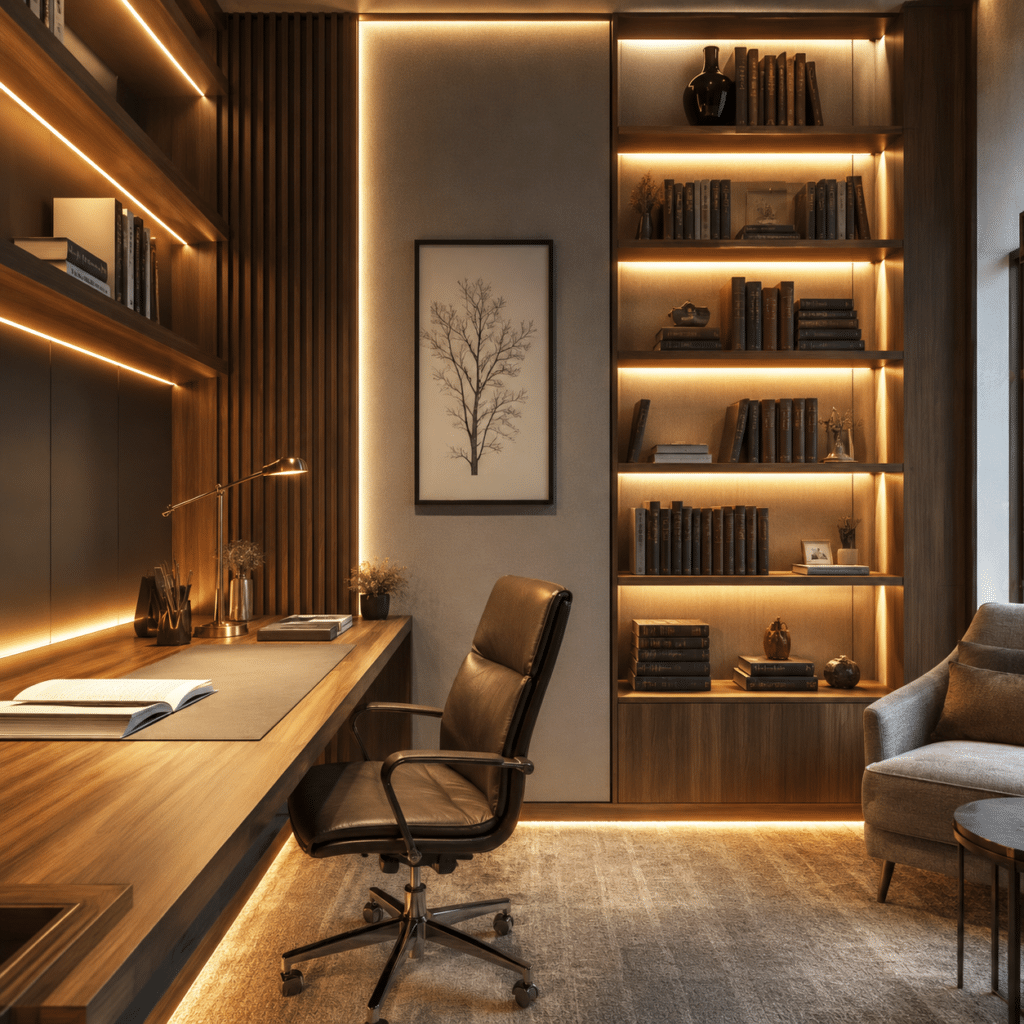

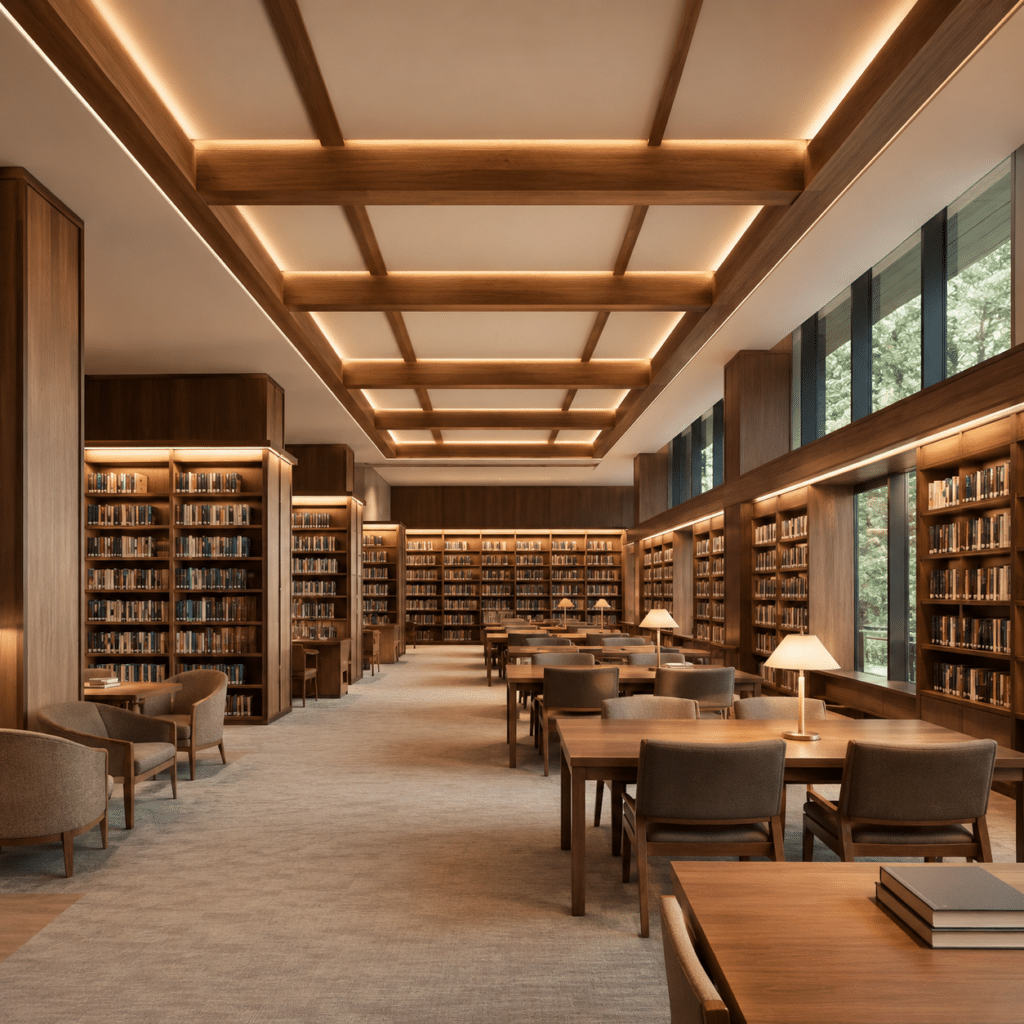

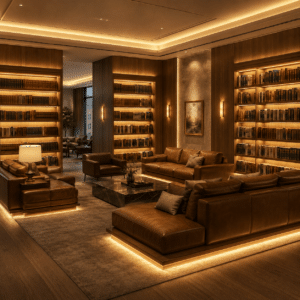

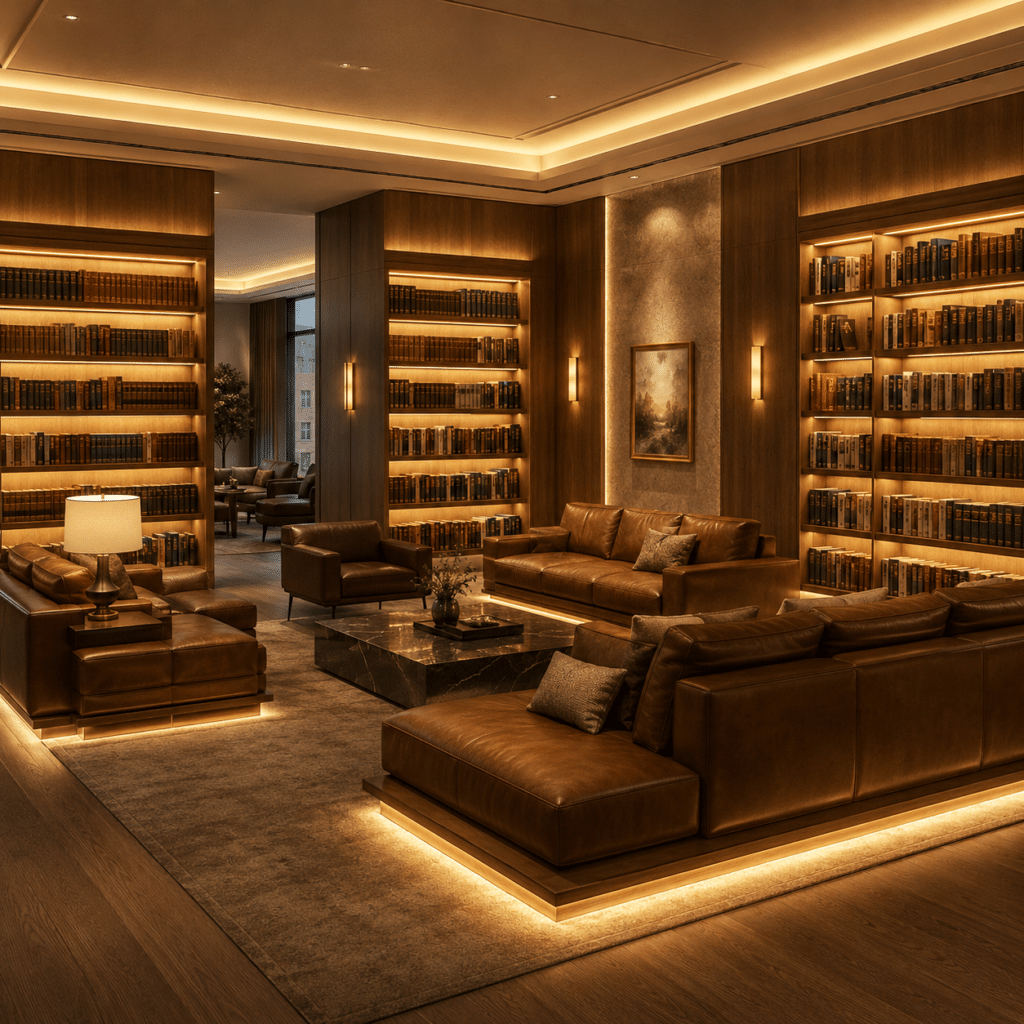

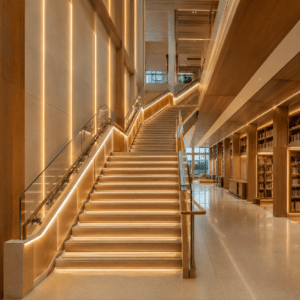

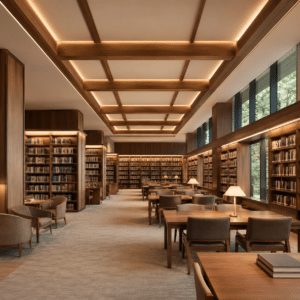

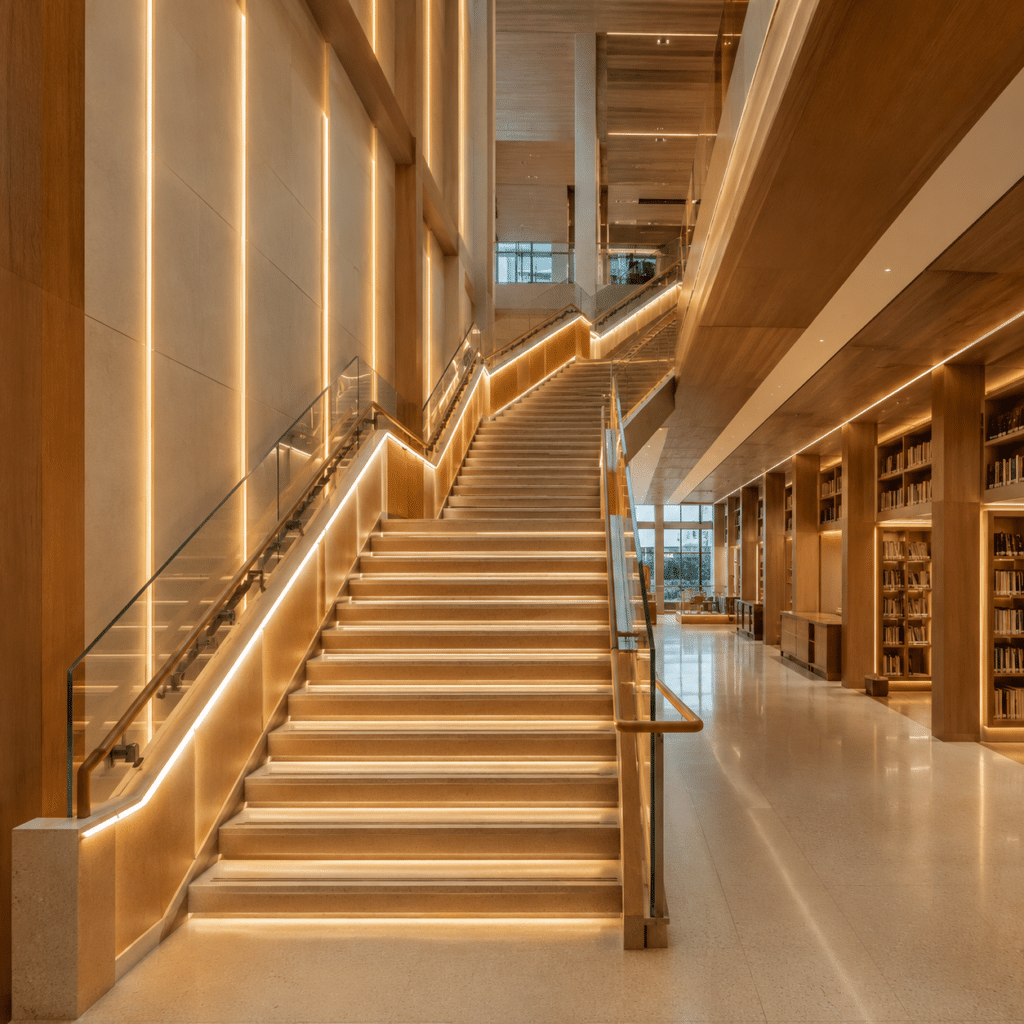

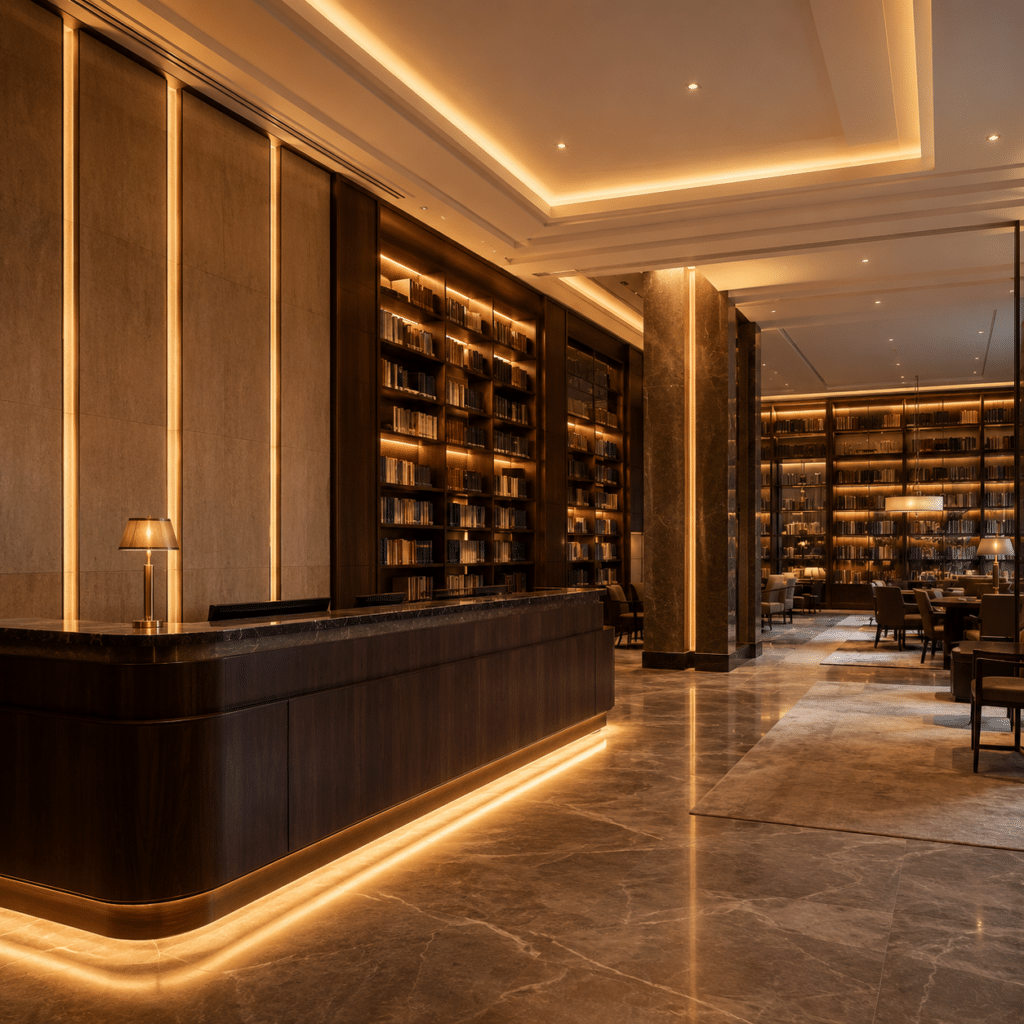

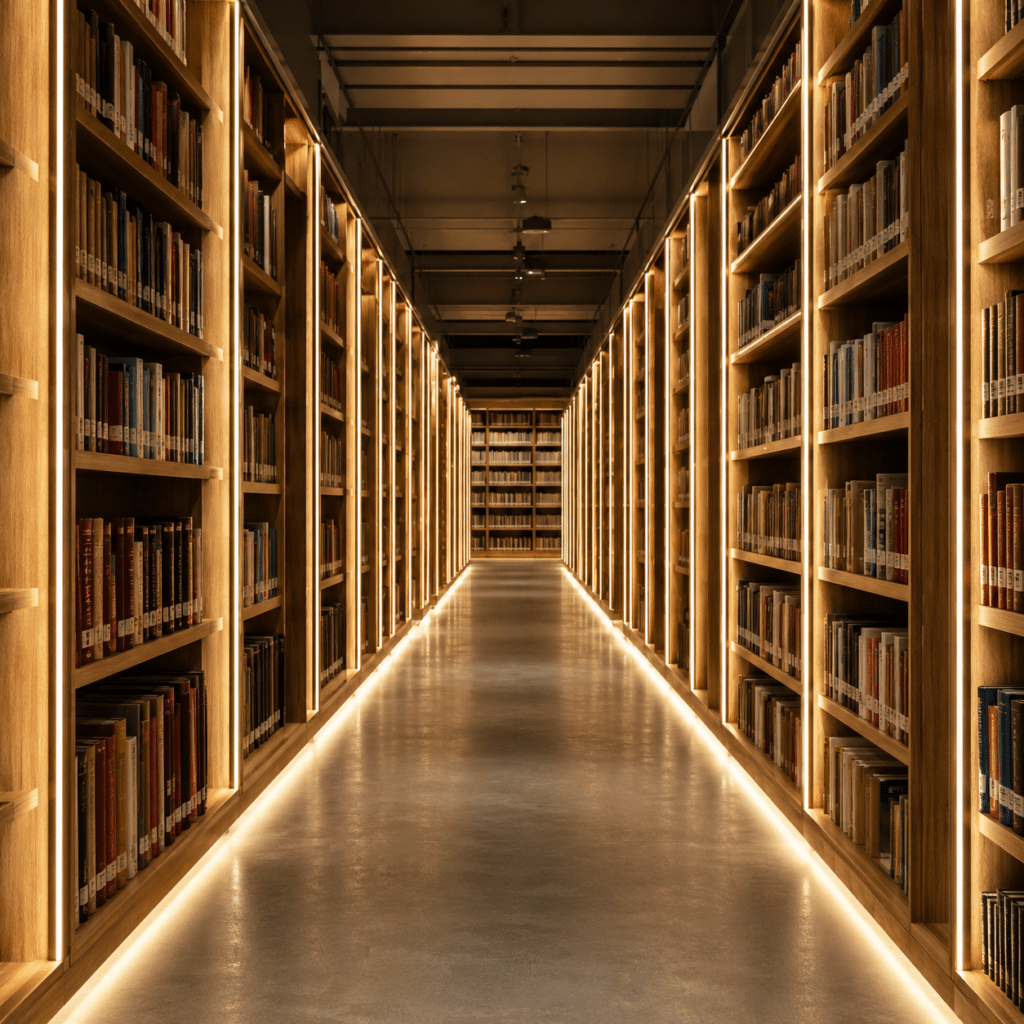

Illuminated & Glow Effect
Specifications & Technical Drawing
Product Identification
|
Model |
S320A20W24-2835H-CD2 |
|---|---|
|
LED Type |
SMD 2835 |
|
LED Quantity |
1024 LEDs / 5m (320 LEDs/m) |
|
Input Voltage |
DC 24V |
|
Current |
1.6 A |
|
Power |
38.4W/m |
Optical Characteristics
|
Color Temperature |
2700K / 3000K / 4000K / 6500K |
|---|---|
|
CRI (Ra) |
Ra 80 / Ra 90 / Ra 95 |
|
Beam Angle |
120° |
|
Luminous Flux |
6912lm/M(CRI80);6144lm/M(CRI90) |
|
Efficacy (lm/W) |
180/CRI80; 160/CRI90 |
Physical & Installation
|
PCB Width |
20mm |
|---|---|
|
PCB Thickness |
0.3mm |
|
Cutting Interval |
25mm |
|
Standard Length |
5000mm (5m per reel) |
|
IP Rating |
IP20 (IP65/IP67 optional) |
|
Adhesive Backing |
3M 300LSE double-sided tape |
Compliance & Warranty
|
Certifications |
CE, RoHS, ERP |
|---|---|
|
Warranty |
3 Years Standard |
|
Working Temp. |
-20°C ~ +50°C |
