Model：S420CC0824
Constant Current LED Strip – 420 LEDs/m Ultra-Long Consistent Brightness, 24V SMD
|
Parameter |
Value |
|---|---|
|
LED Density |
420 LEDs/m |
|
Power |
8.64 W/m |
|
CRI (Ra) |
Ra 90 |
|
Voltage |
24V DC |
Basic Information

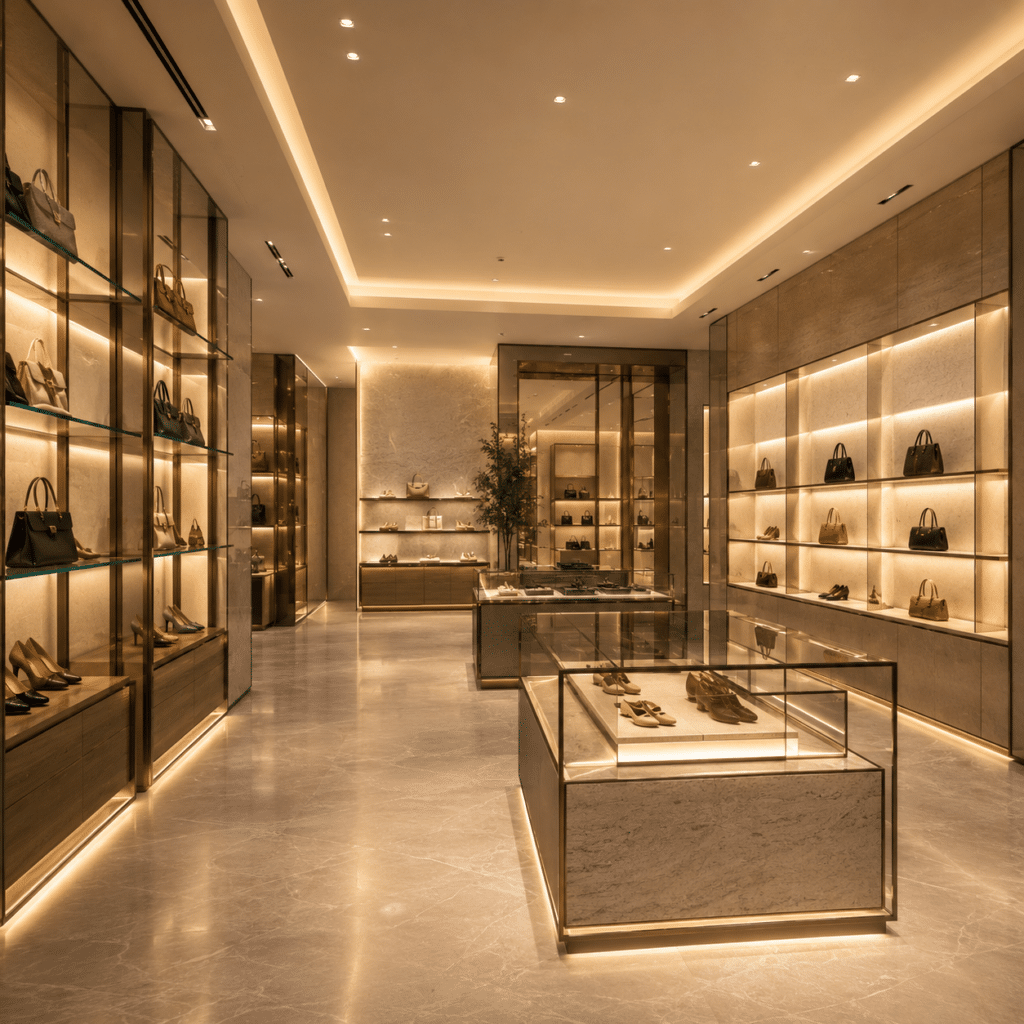

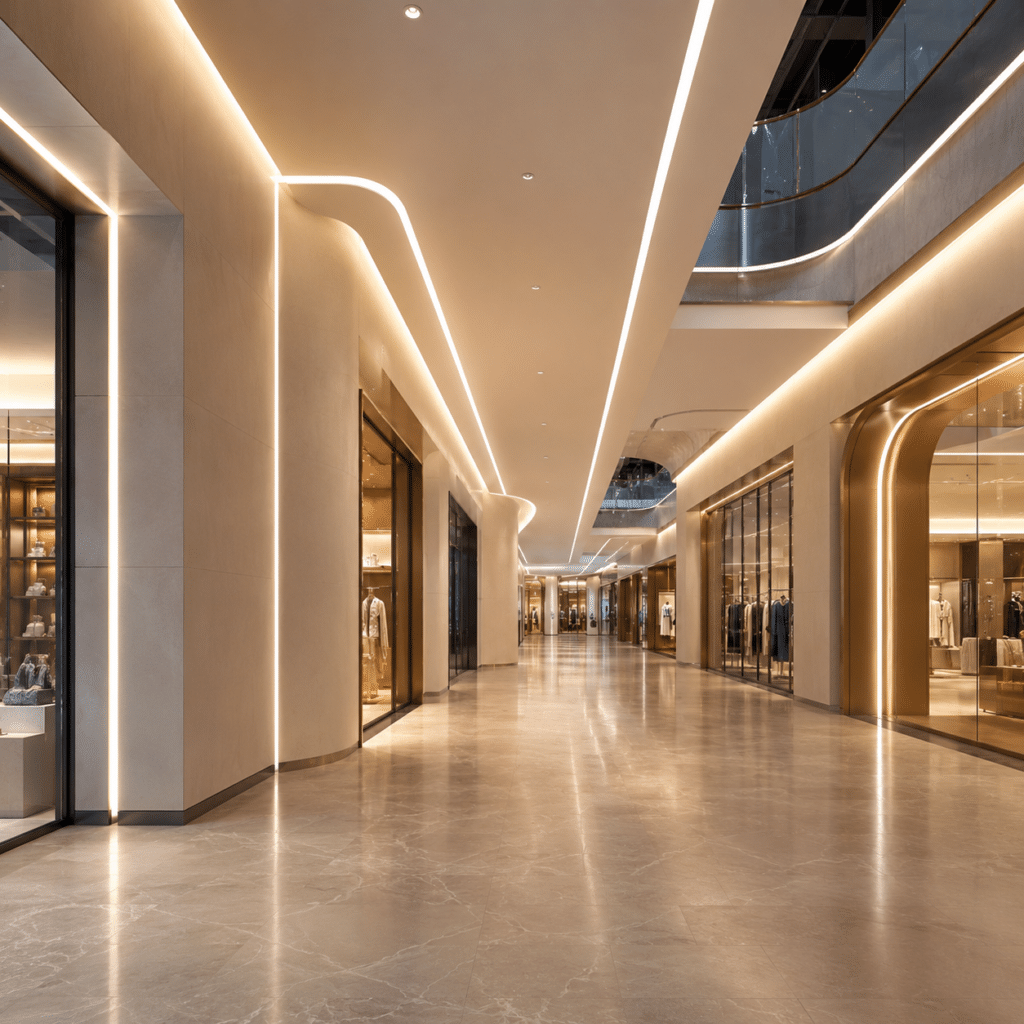

S420CC0824 Constant Current Series featuring stable 8.64W/m power consumption with no brightness degradation over extended runs, ideal for large-scale commercial and residential linear lighting projects.

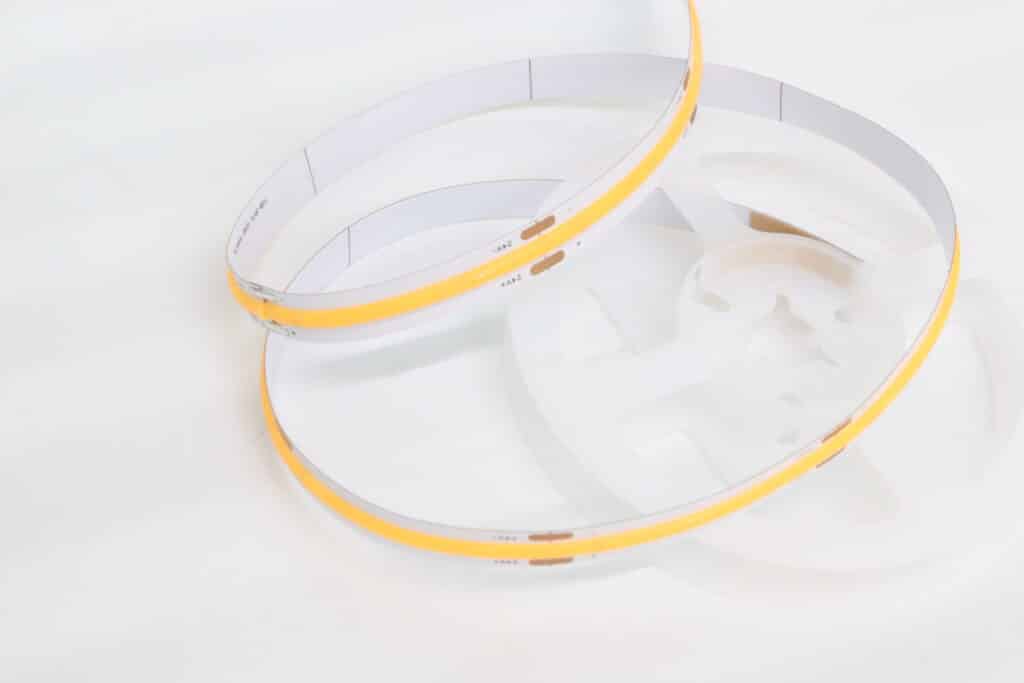

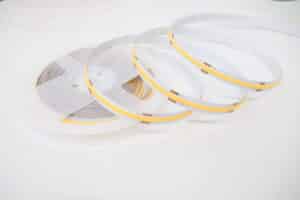

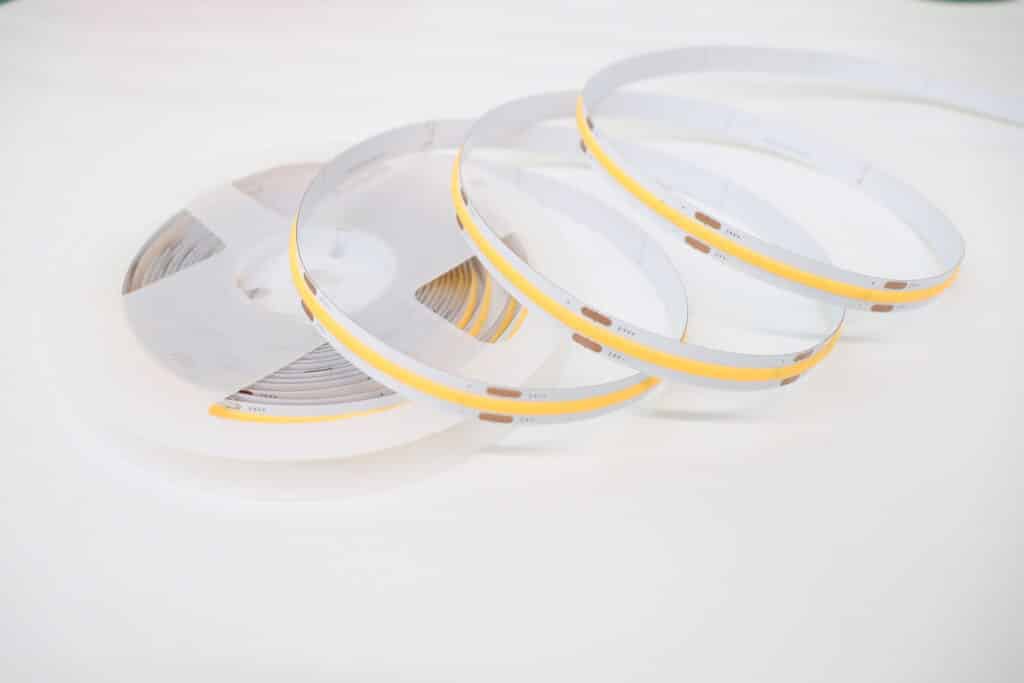

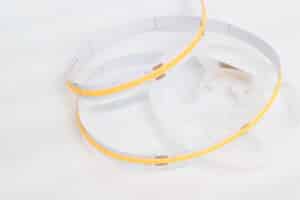

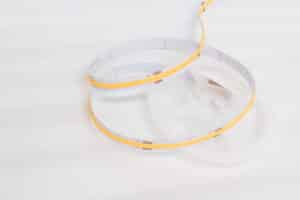

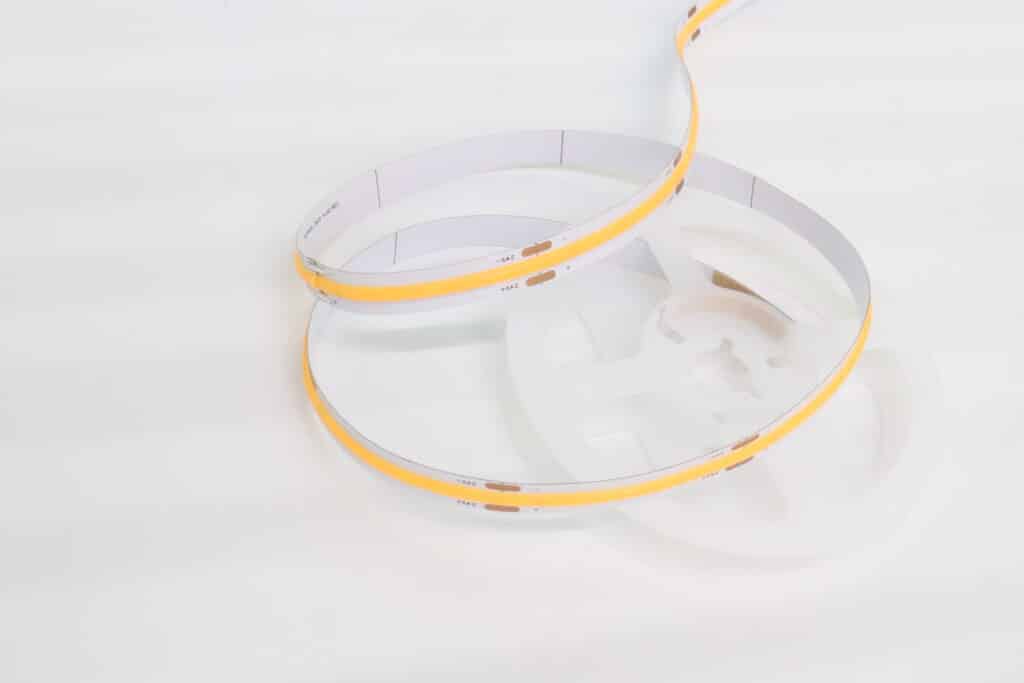

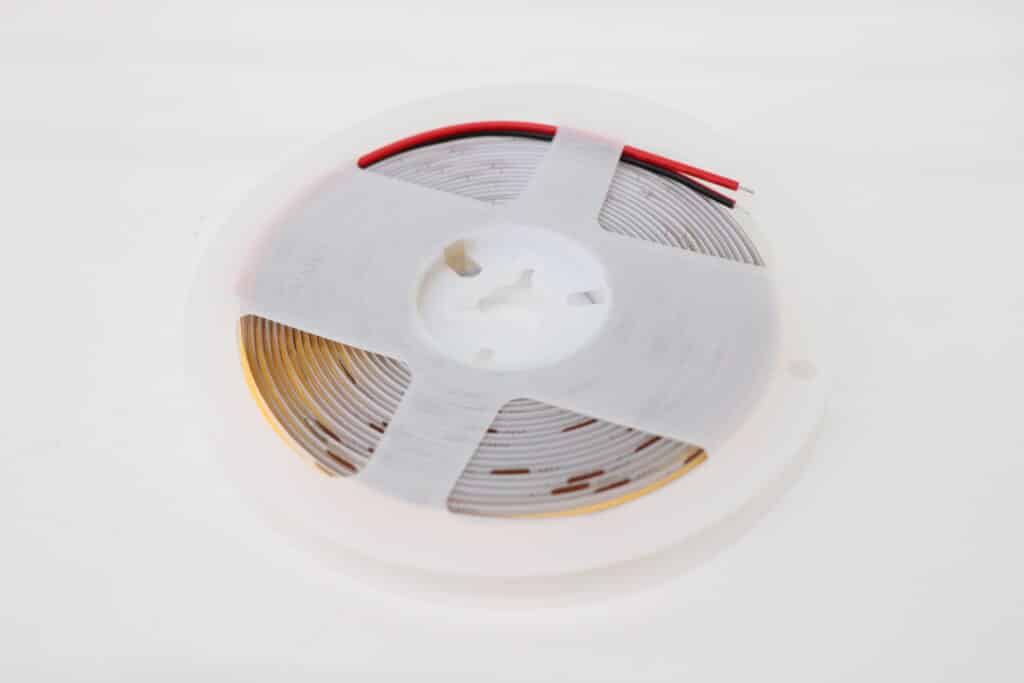

Physical Product Photos

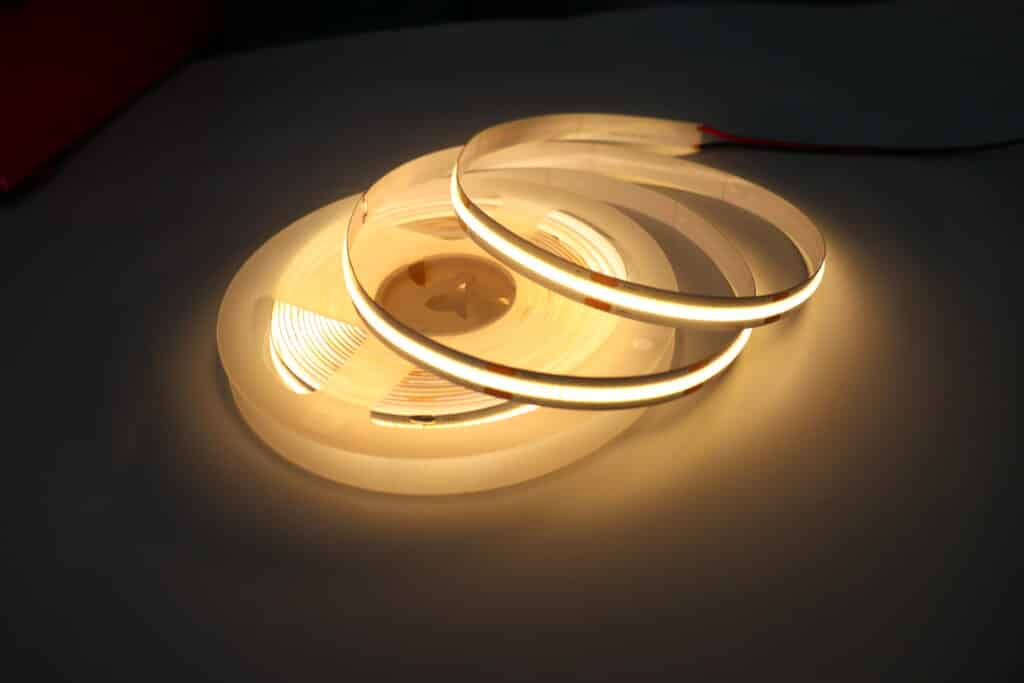

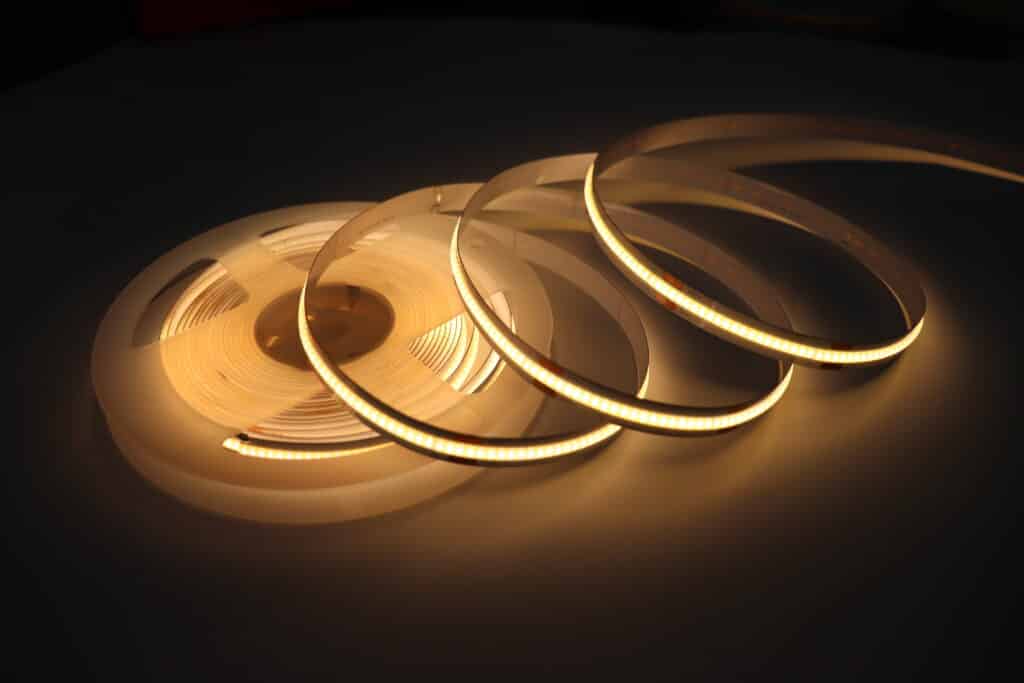

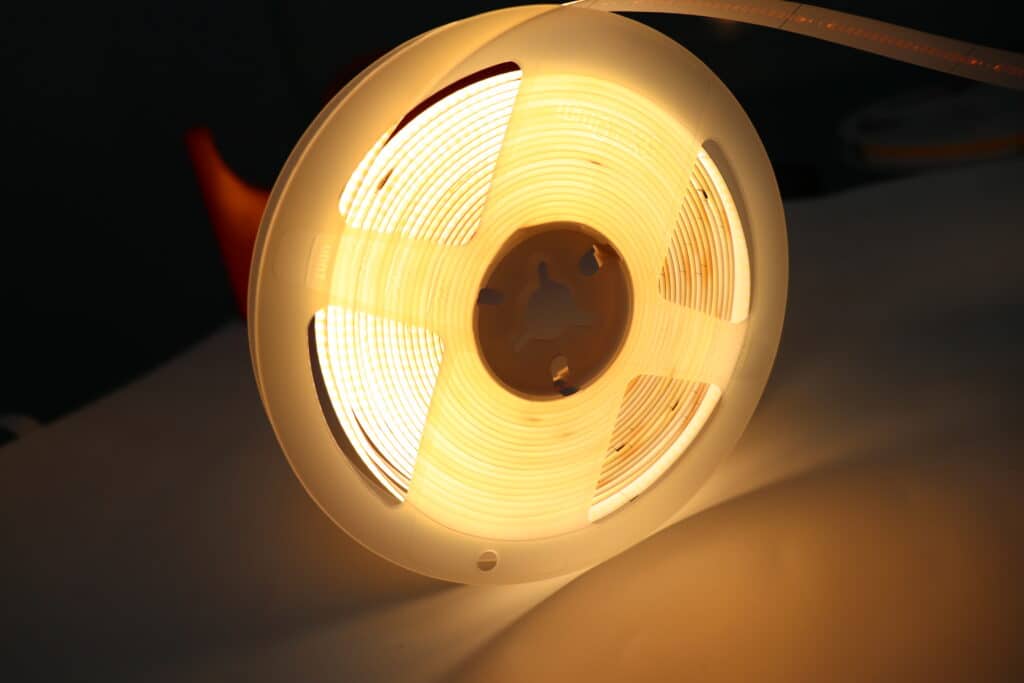

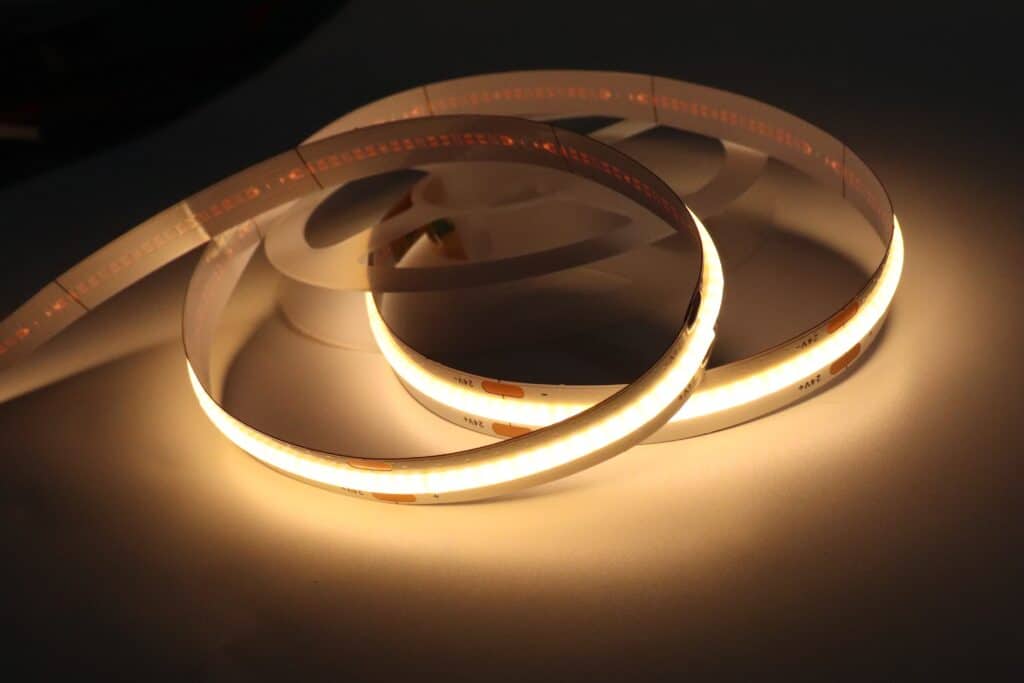

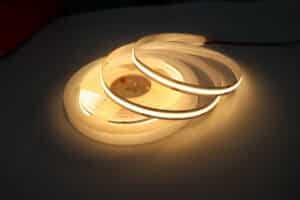

Illuminated & Glow Effect
Specifications & Technical Drawing
Product Identification
|
Model |
S420CC0824 |
|---|---|
|
LED Type |
SMD Constant Current |
|
LED Quantity |
420 LEDs/m (2100 LEDs / 5m) |
|
Input Voltage |
DC 24V |
|
Current |
0.36 A/m |
|
Power |
8.64W/m |
Optical Characteristics
|
Color Temperature |
2700K / 3000K / 4000K / 6500K |
|---|---|
|
CRI (Ra) |
Ra 90 |
|
Beam Angle |
180° |
|
Luminous Flux |
780lm/M |
|
Efficacy (lm/W) |
90 |
Physical & Installation
|
PCB Width |
10mm |
|---|---|
|
PCB Thickness |
0.3mm |
|
Cutting Interval |
50mm |
|
Standard Length |
5000mm (5m per reel) |
|
IP Rating |
IP20 (IP65/IP67 optional) |
|
Adhesive Backing |
3M 300LSE double-sided tape |
Compliance & Warranty
|
Certifications |
CE, RoHS, ERP |
|---|---|
|
Warranty |
3 Years Standard |
|
Working Temp. |
-20°C ~ +50°C |
