High Efficiency Series

Our High Efficiency Series offers the best balance between brightness and power consumption. This is our most popular series. It uses 2835 SMD LED chips. Power range is 7.2W/m to 21.6W/m. Lumen efficiency is 150lm/W to 160lm/W. We have 80 LEDs/m, 160 LEDs/m, and 240 LEDs/m options. PCB width is 8mm and 10mm. All models run on 24V DC. CRI is over 90. This series is suitable for many applications: office lighting, hotel lighting, supermarket lighting, and residential lighting. The quality is very stable. We produce over 500km of this series every month. The price is also very competitive. Many distributors choose this series as their main product. We provide LM80 test reports and TM21 lifetime data. The rated lifetime is L70 50,000 hours. We can also customize CCT, CRI, and PCB width for bulk orders.

Contact Us About Us Certifications

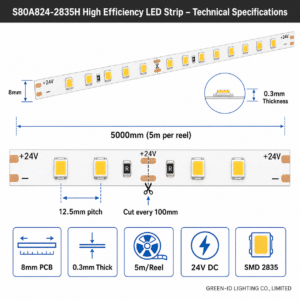

  • MODEL: S80A824-2835H

    S80A824-2835H High Efficiency Series with reliable illumination at 7.2W/m on slim 8mm PCB, designed for space-constrained lighting projects requiring efficient and uniform light output.

    • Luminous Flux: 1440 lm/M(CRI80);1296 lm/M(CRI90)
    • Efficiency: 200 lm/M(CRI80); 180 lm/M(CRI90)
    • Current: 0.3 A
    • PCB Width: 8 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product

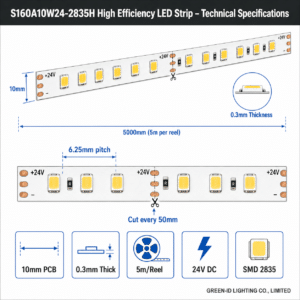

  • MODEL: S160A10W24-2835H

    S160A10W24-2835H High Efficiency Series with high-density illumination at 14.4W/m, designed for lighting projects requiring bright output and excellent uniformity.

    • Luminous Flux: 2880 lm/M(CRI80);2592 lm/M(CRI90)
    • Efficiency: 200 lm(M/CRI80); 180 lm/M(CRI90)
    • Current: 0.6 A
    • PCB Width: 10 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product

  • MODEL: S240A10W24-2835H

    S240A10W24-2835H High Efficiency Series with ultra high-density illumination at 21.6W/m, designed for high-brightness projects requiring maximum light output without visible hotspots.

    • Luminous Flux: 4320 lm/M(CRI80);3888 lm/M(CRI90)
    • Efficiency: 200 lm/M(CRI80); 180 lm/M(CRI90)
    • Current: 0.9 A
    • PCB Width: 10 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product
