Ultra High Efficiency Series

Our Ultra High Efficiency Series is the best choice for customers who want to save energy. We use high-quality 2835 SMD LED chips from top brands. The power range is from 3.6W/m to 9.6W/m. But the lumen output is very high. This series can reach over 180 lumens per watt. That means you get more light with less power. It is perfect for large commercial projects, office buildings, and retail stores. The PCB width is 8mm and 10mm. We have 90 LEDs/m, 144 LEDs/m, 180 LEDs/m, and 240 LEDs/m options. All models use 24V DC input. CRI is over 90. Color temperature is from 2700K to 6500K. You can also choose IP20 or IP65 rating. We test every reel before shipping. The warranty is 3 years. Many European customers like this series because electricity cost is high in their countries. This series helps them save money.

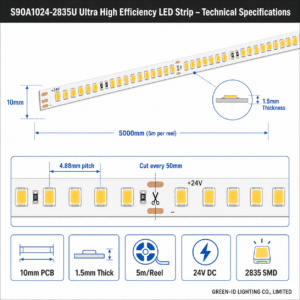

  • MODEL: S90A1024-2835U

    S90A1024-2835U 24V DC SMD 2835 LED strip lights feature ultra high efficiency up to 220 lm/W & 720 lm/m. Ideal for low power consumption projects. Request a quote!

    • Luminous Flux: 792 lm/M(CRI80);720 lm/M(CRI90)
    • Efficiency: 220 lm/M(CRI80); 200 lm/M(CRI90)
    • Current: 0.15 A
    • PCB Width: 10 mm
    • Color Temperature: 2700K / 3000K / 4000K / 6500 K
    View Product
  • S144A10W24-2835U

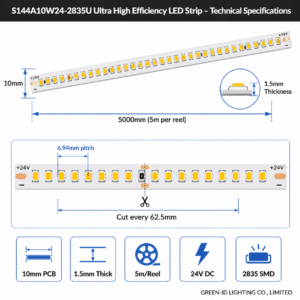

    MODEL: S144A10W24-2835U

    Ultra High Efficiency Series with high-density illumination at 5.4W/m, designed for lighting projects requiring higher brightness and uniform light output.

    • Luminous Flux: 1188 lm/M(CRI80);1080 lm/M(CRI90)
    • Efficiency: 220 lm/M(CRI80); 200 lm/M(CRI90)
    • Current: 0.225 A
    • PCB Width: 10 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product
  • S180A10W24-2835U

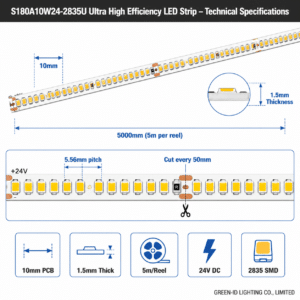

    MODEL: S180A10W24-2835U

    S180A10W24-2835U Ultra High Efficiency Series with ultra high-density illumination at 7.2W/m, designed for lighting projects requiring maximum brightness and perfectly uniform light output without visible hotspots.

    • Luminous Flux: 1584 lm/M(CRI80);1440 lm/M(CRI90)
    • Efficiency: 220 lm/M(CRI80); 200 lm/M(CRI90)
    • Current: 0.3 A
    • PCB Width: 10 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product
