Model：S90A1024-2835U

Ultra High Efficiency LED Strip – 220 lm/W, 720 lm/m, 24V SMD 2835

Parameter

CRI 90

CRI 80

Luminous Flux

720 lm/M

792 lm/M

Efficacy

200 lm/W

220 lm/W

Power Consumption

3.6 W/m

3.6 W/m
Sample Request OEM/ODM Inquiry Quick Quote

Basic Information

S90A1024-2835U 24V DC SMD 2835 LED strip lights feature ultra high efficiency up to 220 lm/W & 720 lm/m. Ideal for low power consumption projects. Request a quote!

  • LED strip lighting for multiple scenarios: Bedroom, Living room, Outdoors, Bar
  • Flexible, bendable design with evenly distributed LED beads
  • Strip marking: +24V (Operating voltage 24V DC)
  • White flexible PCB substrate with yellow 2835 LED chips
  • Ideal for indoor decoration, ambient lighting, and commercial applications

Physical Product Photos

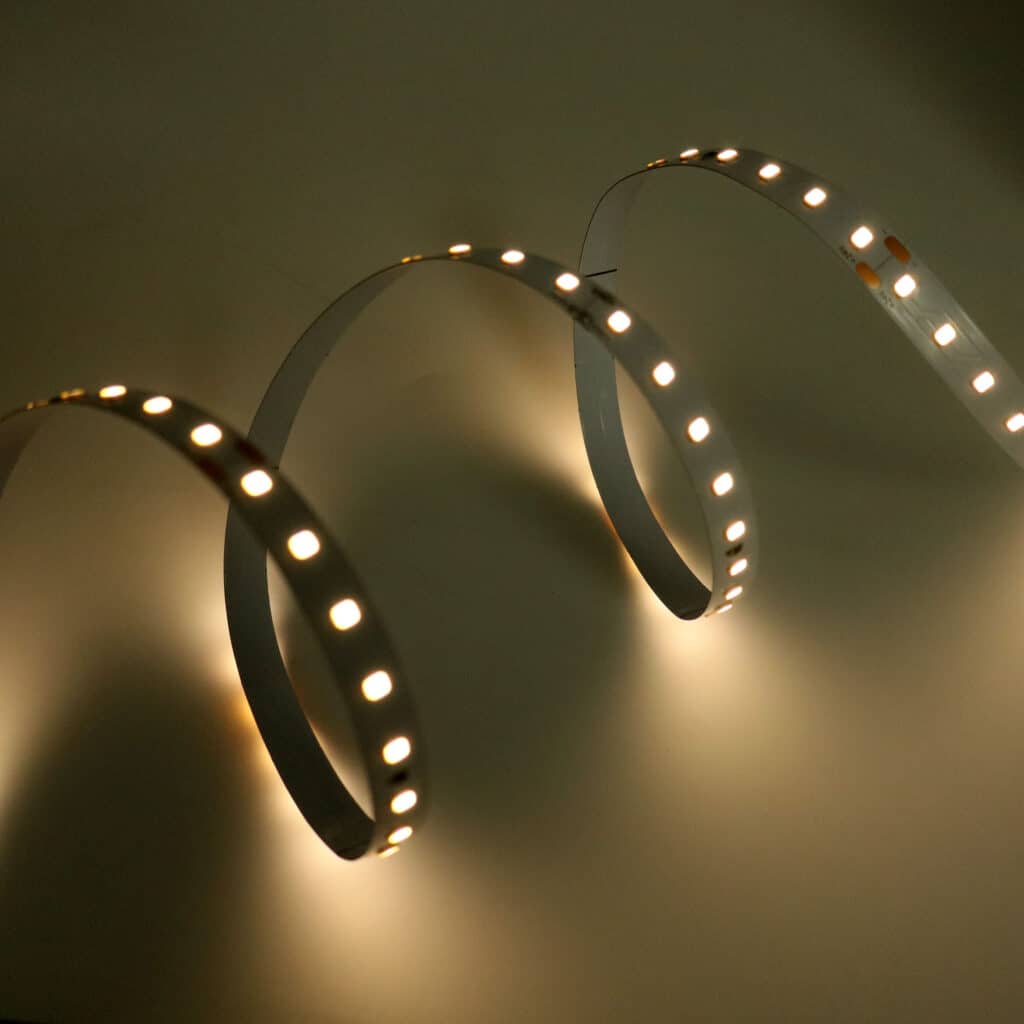

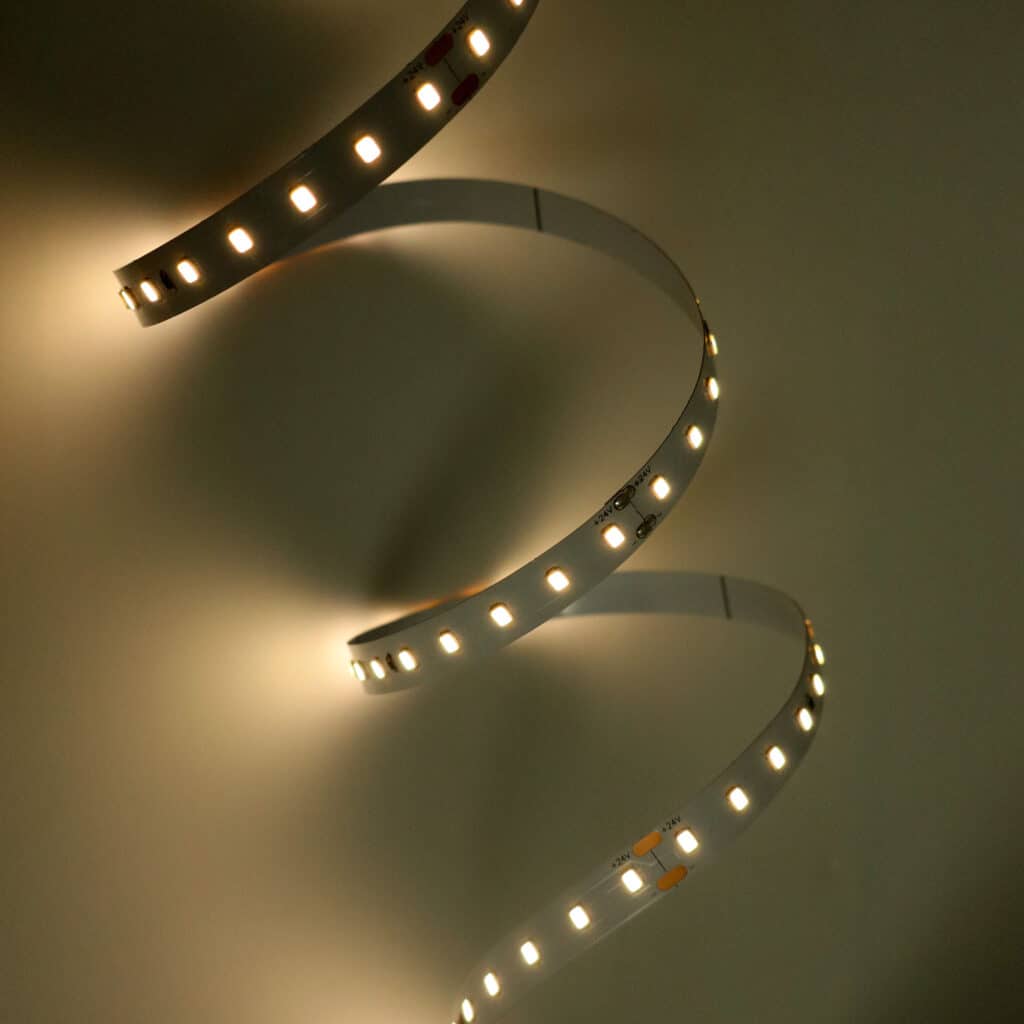

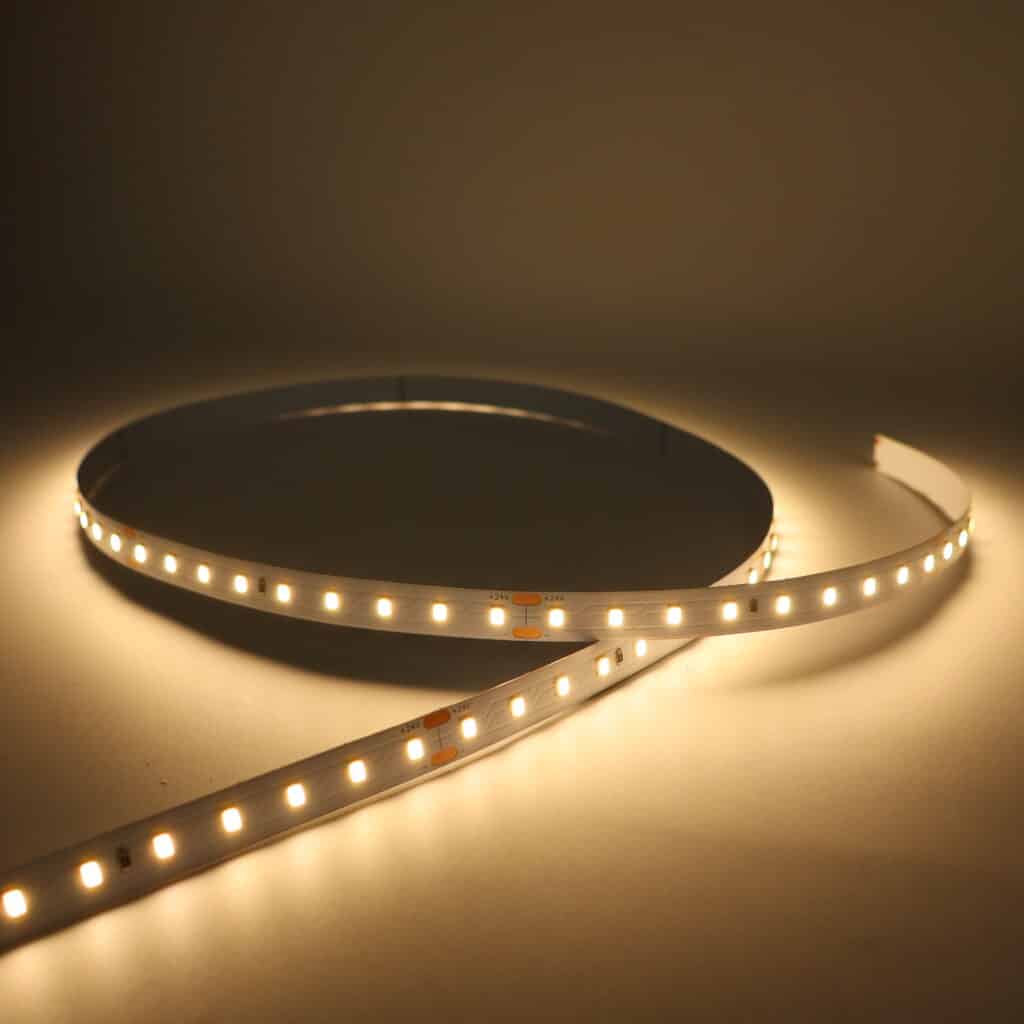

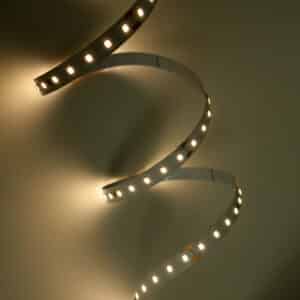

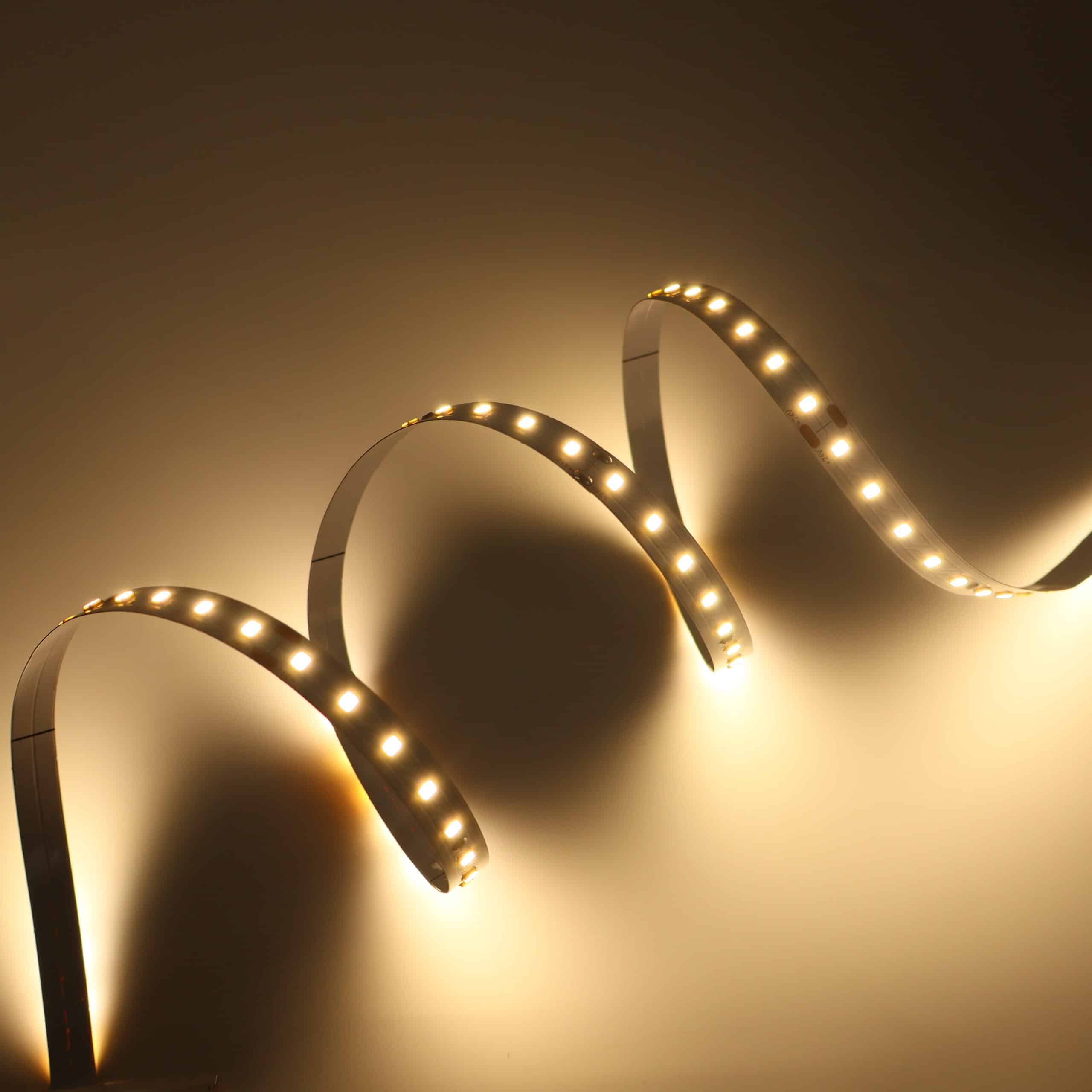

Illuminated & Glow Effect

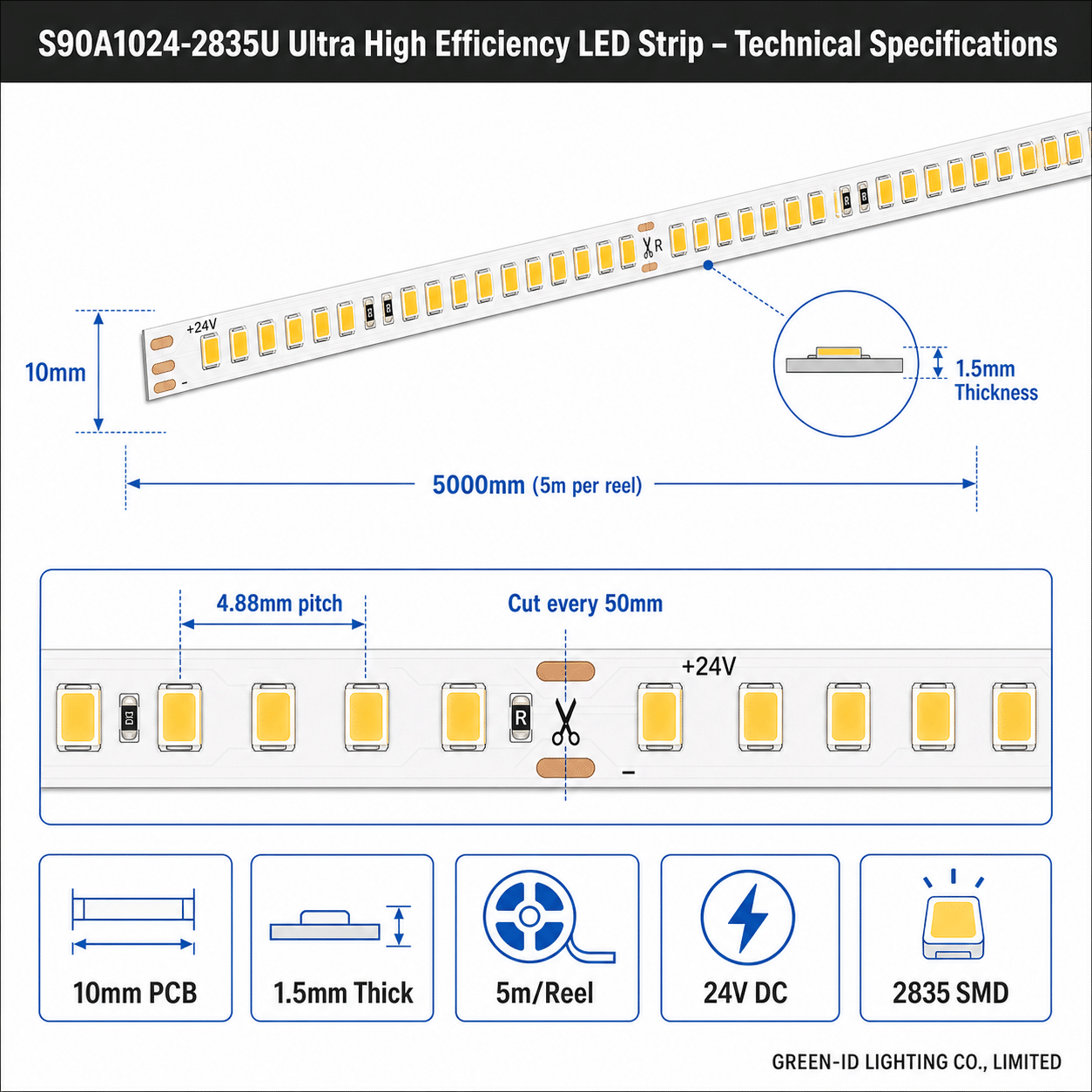

Specifications & Technical Drawing

Product Identification

Model

S90A1024-2835U

LED Type

SMD 2835

LED Quantity

450 LEDS/5M（90 LEDS/M）

Input Voltage

DC 24V

Current

0.15 A

Power

3.6 W/m

Optical Characteristics

Color Temperature

2700K / 3000K / 4000K / 6500K

CRI (Ra)

Ra ≥ 80 (Standard) / Ra ≥ 90 (Optional)

Beam Angle

120°

Luminous Flux

792 lm/M(CRI80);720 lm/M(CRI90)

Efficacy (lm/W)

220/CRI80; 200/CRI90

Physical & Installation

PCB Width

10 mm

PCB Thickness

0.3 mm

Cutting Interval

100 mm

Standard Length

5000 mm (5m per reel)

IP Rating

IP20 (IP65 optional)

Adhesive Backing

3M 300LSE double-sided tape

Compliance & Warranty

Certifications

CE, RoHS, ERP

Warranty

3 Years Standard

Working Temp.

-20°C ~ +50°C

Real Home & Commercial Lighting Scenarios

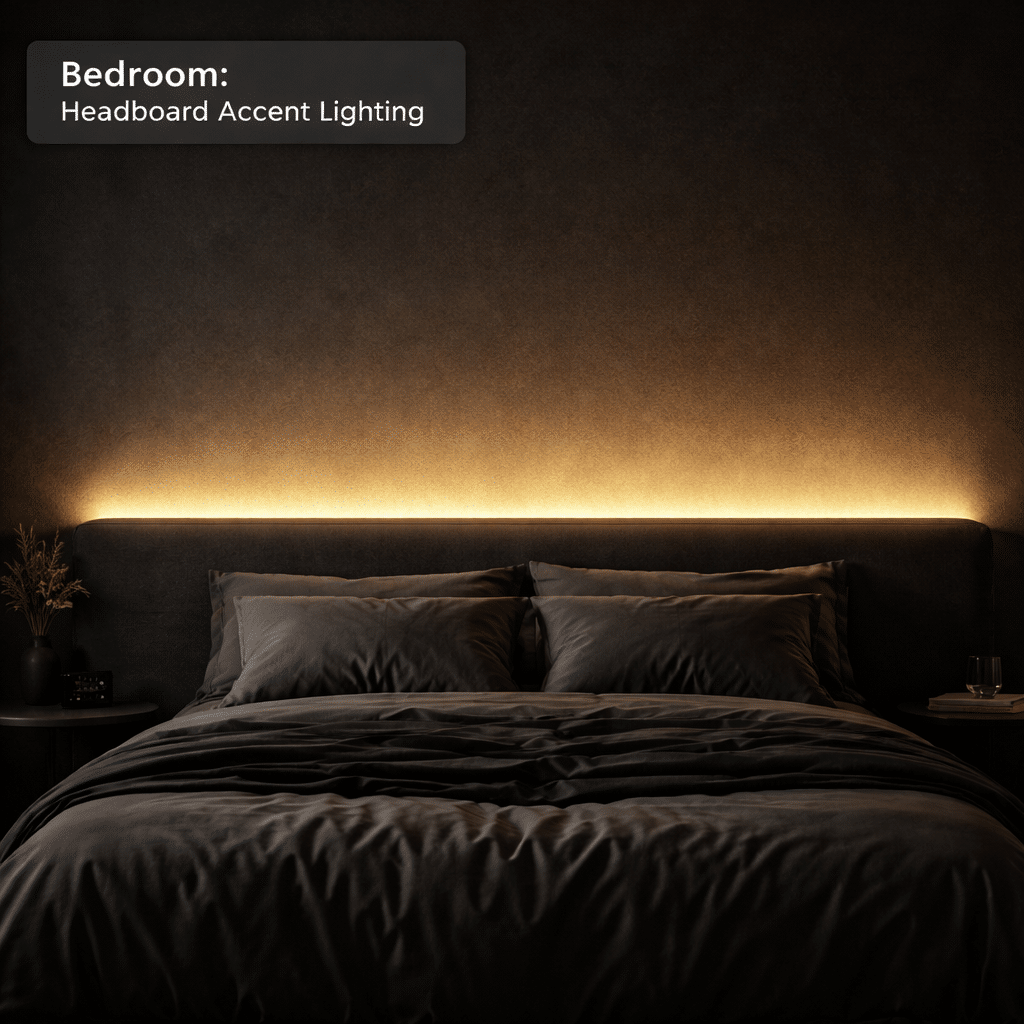

  • Bedroom: Headboard accent lighting, ambient lighting

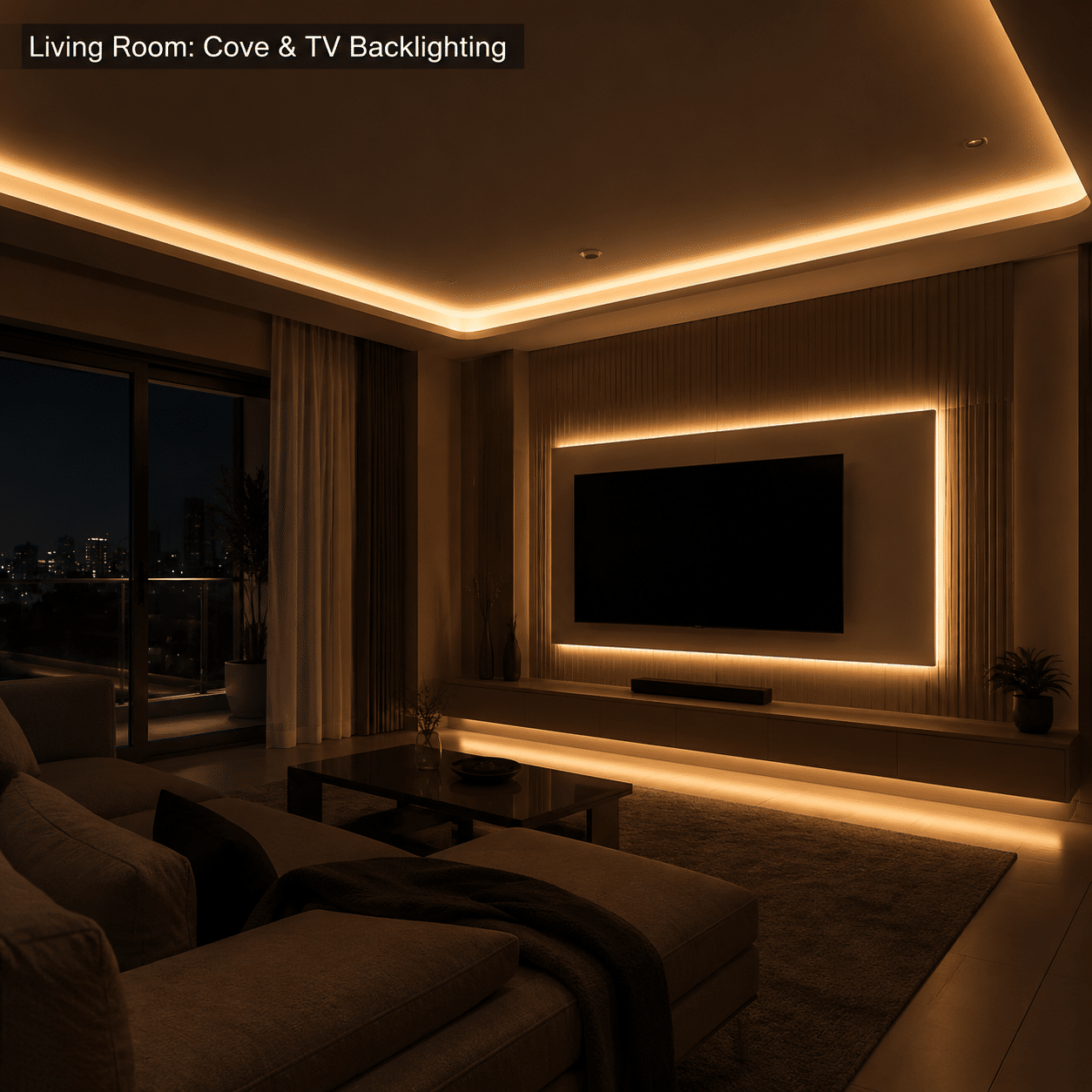

  • Living Room: Ceiling cove lighting, TV backlighting
  • Commercial Spaces: Bars, restaurants, hospitality lighting

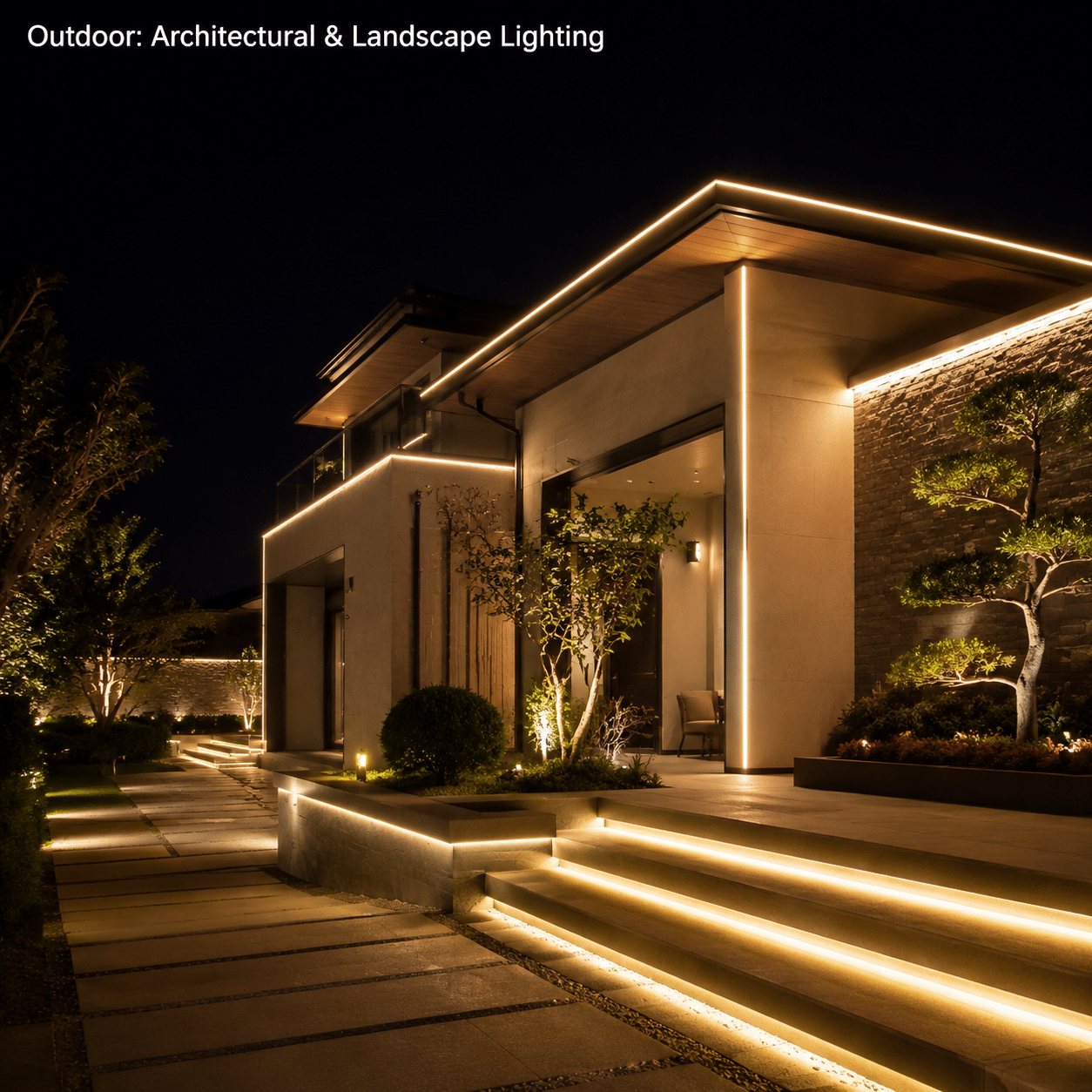

  • Outdoor Applications: Architectural contour lighting, landscape lighting

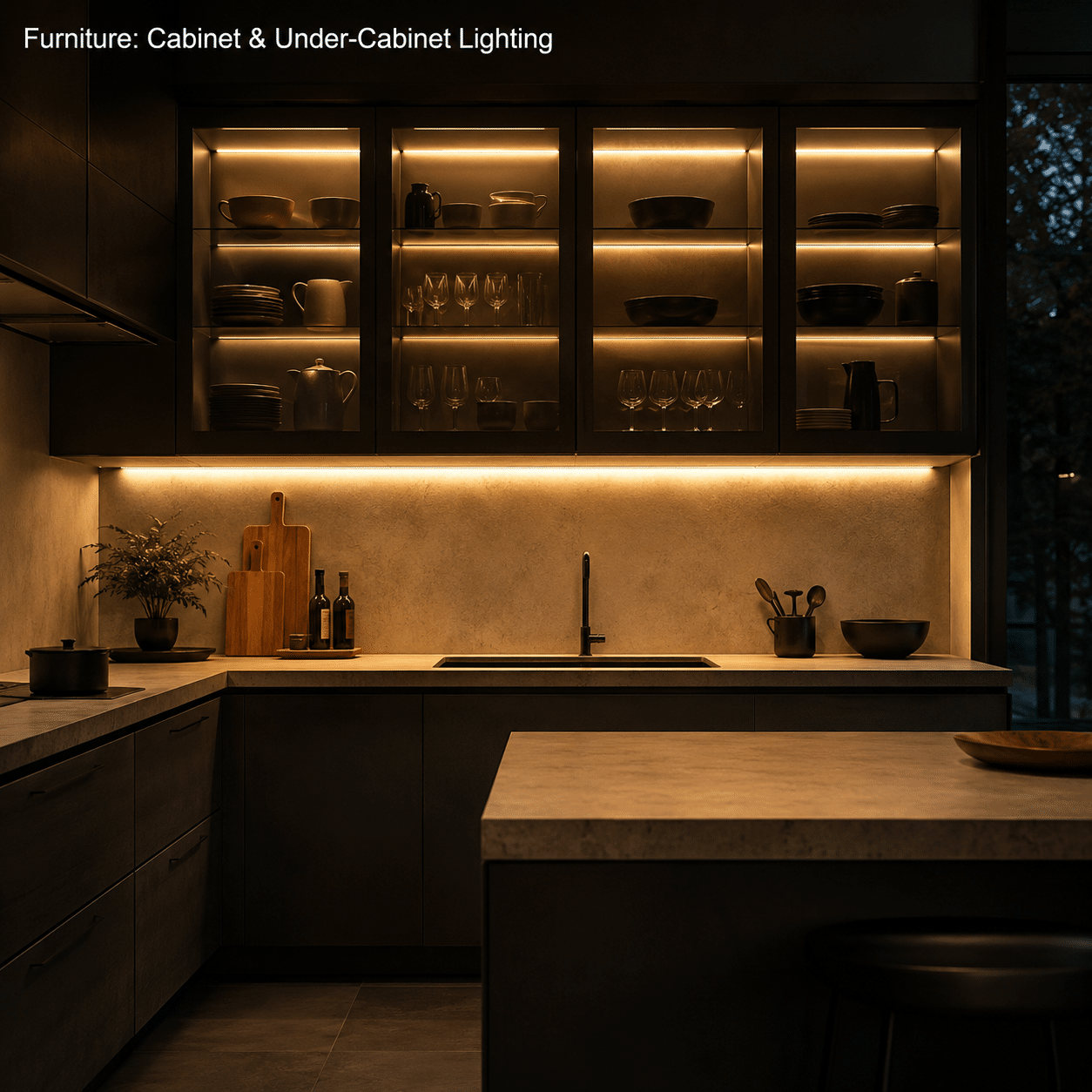

  • Furniture Lighting: Cabinets, display cases, under-cabinet lighting

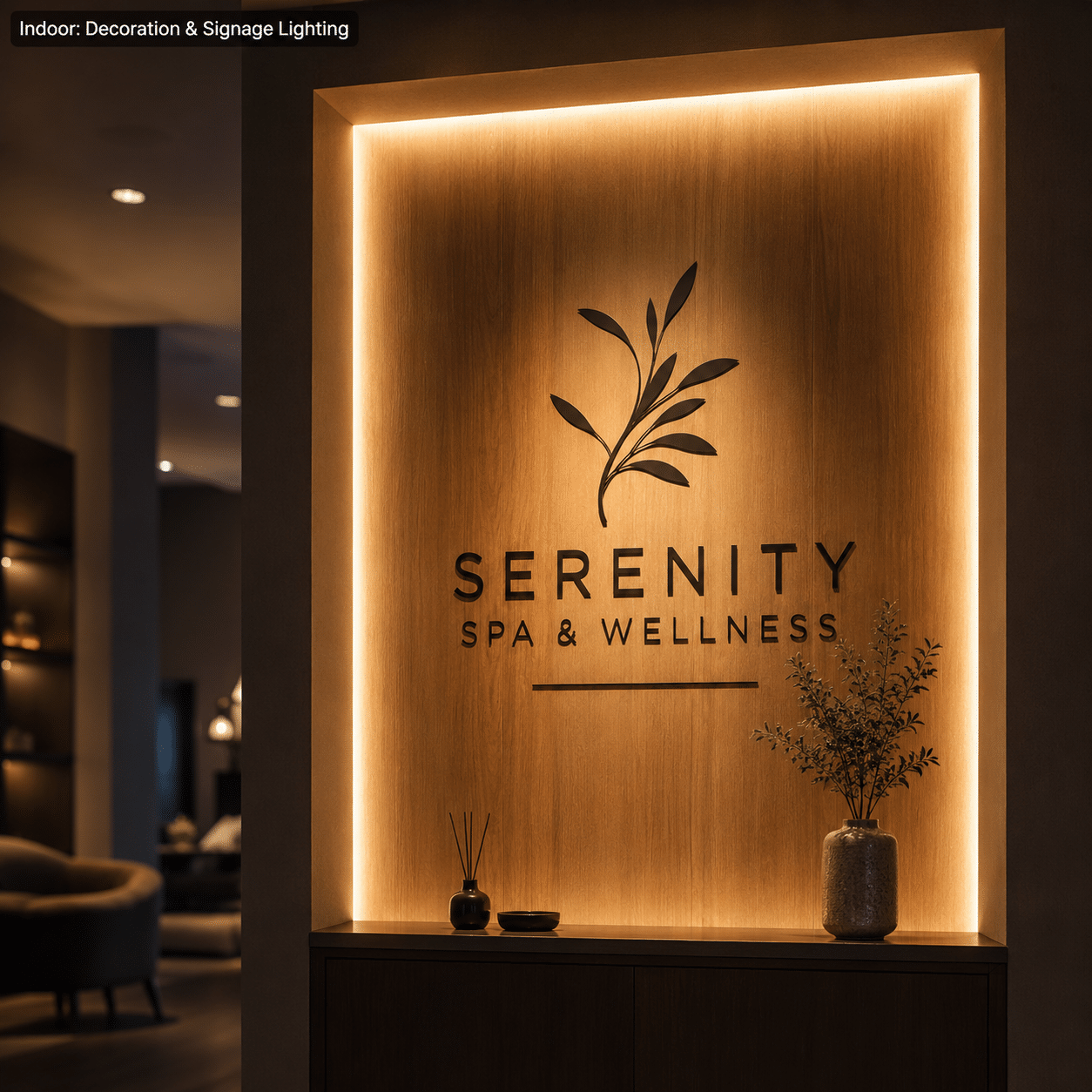

  • Suitable for indoor decoration, signage, and soft ambient lighting applications

LM80 TM21 Test Data

IES Files & Datasheets

  • IES photometric files available for download.
  • Technical Datasheet with complete parameters.
  • Download IES, datasheets and installation guides
