High Brightness Series

Our High Brightness Series is designed for projects that need very strong light output. This series uses 2835 high-power SMD LED chips. Power range is from 19.2W/m to 48W/m. Lumen output is very high. It is perfect for high-bay lighting, factory lighting, warehouse lighting, and large retail spaces. We offer 160 LEDs/m, 256 LEDs/m, 240 LEDs/m (15mm PCB), 320 LEDs/m, and 400 LEDs/m options. PCB width is from 10mm to 30mm. The 30mm PCB with 400 LEDs/m is our brightest model. It can replace traditional fluorescent tubes in many applications. All models use 24V DC. CRI is over 90. We recommend using aluminum profiles with good heat dissipation for this series. This helps maintain stable performance over long time. We provide detailed installation guidelines for every model. The warranty is 3 years. Many industrial customers in Europe and Middle East use this series.

Contact Us About Us Certifications

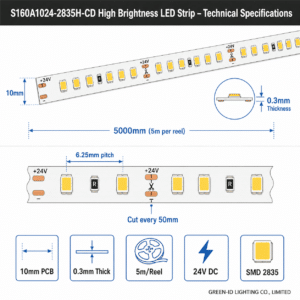

  • MODEL: S160A1024-2835H-CD

    S160A1024-2835H-CD High Brightness Series delivering powerful illumination at 19.2W/m on 10mm PCB, designed for demanding lighting projects requiring high lumen output and reliable performance.

    • Luminous Flux: 3456 lm/M(CRI80);3072 lm/M(CRI90)
    • Efficiency: 180 lm/M(CRI80); 160 lm/M(CRI90)
    • Current: 0.8 A
    • PCB Width: 10 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product

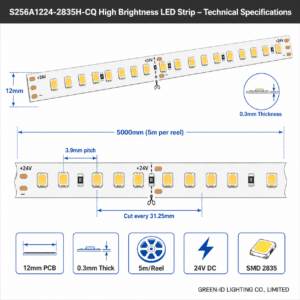

  • MODEL: S256A1224-2835H-CQ

    S256A1224-2835H-CQ High Brightness Series with ultra high-density 256 LEDs/m on 12mm wide PCB at 30.72W/m, engineered for maximum brightness applications requiring seamless uniform light output.

    • Luminous Flux: 5529.6 lm/M(CRI80);4915.2 lm/M(CRI90)
    • Efficiency: 180 lm/M(CRI80); 160 lm/M(CRI90)
    • Current: 1.28 A
    • PCB Width: 12 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product

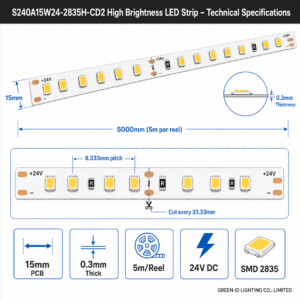

  • MODEL: S240A15W24-2835H-CD2

    S240A15W24-2835H-CD2 High Brightness Series featuring 240 LEDs/m on wide 15mm PCB at 28.8W/m, built for high-output commercial and architectural lighting projects requiring superior thermal management.

    • Luminous Flux: 5184 lm/M(CRI80);4608 lm/M(CRI90)
    • Efficiency: 180 lm/M(CRI80); 160 lm/M(CRI90)
    • Current: 1.2 A
    • PCB Width: 15 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product

  • MODEL: S320A20W24-2835H-CD2

    S320A20W24-2835H-CD2 High Brightness Series with ultra high-density 320 LEDs/m on extra-wide 20mm PCB at 38.4W/m, designed for extreme brightness commercial installations and large-scale architectural lighting.

    • Luminous Flux: 6912 lm/M(CRI80);6144 lm/M(CRI90)
    • Efficiency: 180 lm/M(CRI80); 160 lm/M(CRI90)
    • Current: 1.6 A
    • PCB Width: 20 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product

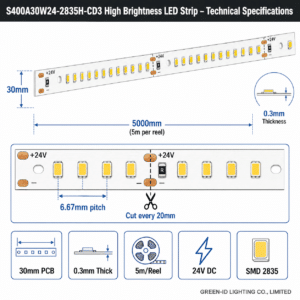

  • MODEL: S400A30W24-2835H-CD3

    S400A30W24-2835H-CD3 High Brightness Series flagship with maximum 400 LEDs/m on ultra-wide 30mm PCB at 48W/m, engineered for the most demanding high-brightness commercial, industrial, and architectural lighting projects.

    • Luminous Flux: 8640 lm/M(CRI80);7680 lm/M(CRI90)
    • Efficiency: 180 lm/M(CRI80); 160 lm/M(CRI90)
    • Current: 2 A
    • PCB Width: 30 mm
    • Color Temperature: 2700/3000/4000/5000/6500 K
    View Product
